AGM ASP Micro TM160Y Thermal Imaging Monocular


In stock

SKU: 3093251001AM16 Categories: , , Tags: , , ,

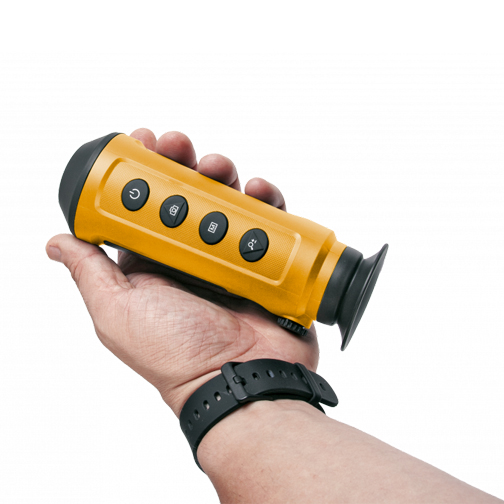

AGM ASP Micro TM160Y Thermal Imaging Monocular

The AGM ASP Micro TM160Y is an Industrial/Marine thermal imaging monocular. It is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, WiFi hotspot, and so on. The high sensitivity built in thermal detector provides you with clear view even in total darkness. Thanks to this, the ASP-Micro allows you to observe boats, navigational objects, navigate at night, detect people overboard, as well as observe sea animals and birds. The monocular is mainly applied to scenarios such as patrolling, law enforcement, search and rescue, hunting and more.

AGM ASP Micro TM160Y Features

Distance Measurement

The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark

The device detects and marks the hot spot of highest temperature.

Mode Switch

Device supports pallet switch and distance measurement.


Built-in memory module supports video recording/snapshot capturing.

Digital Zoom

Device supports 1×, 2×, and 4× digital zoom.

Wi-Fi Hotspot

Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

160×120 resolution, high sensitivity detector

Adaptive AGC, DDE, 3D DNR

720×540 resolution LCOS display

Built-in rechargeable Lithium battery

Up to 10 hours continuous running (with Wi-Fi hotspot function off)

Wi-Fi hotspot

Type-C interface

Limited 3-year warranty

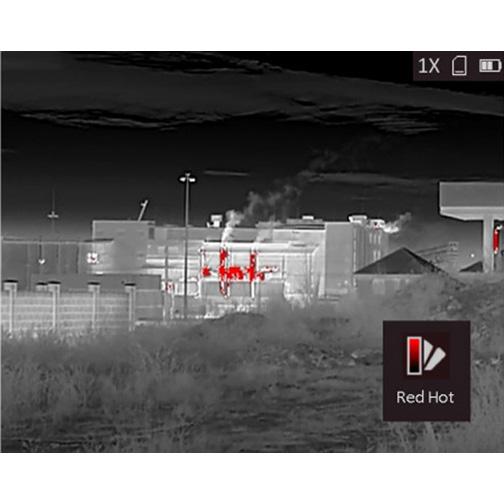

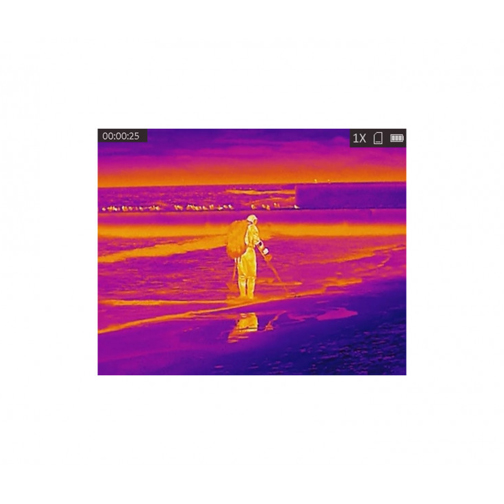

Palettes Black Hot, White Hot, Red Hot, Fusion
Working Temperature -20°C to 55°C (-4°F to 131°F)
Interface USB Type-C
Multi Language menu Yes
Drop Test Height 1.5 m (4.9 feet)
Digital Magnification 0.5x – 2x
Detector type Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Aperture F1.1
Resolution 160×120
Detection Range (Humans: 1.8×0.5m) – 250m/yd
NETD Less than 35 mk (@25°C), F#=1.1
Lens (focal length) 6.2 mm
Power 5 VDC/2 A, 1.5 W
Field of view (H × X) 15.61° × 11.74° (H × V)
Digital zoom 2×, 4×
Monitor 720×540, 0.2 inch, LCOS
Storage Built-in memory module (8 GB)
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Wi-Fi Yes
CVBS Output Yes (via USB)
Battery Operating Time Up to 10 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Weight 270 g (0.6 lb)
Overall Dimensions 161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)
Protection Level IP67
Magnification 0.5x
