Description

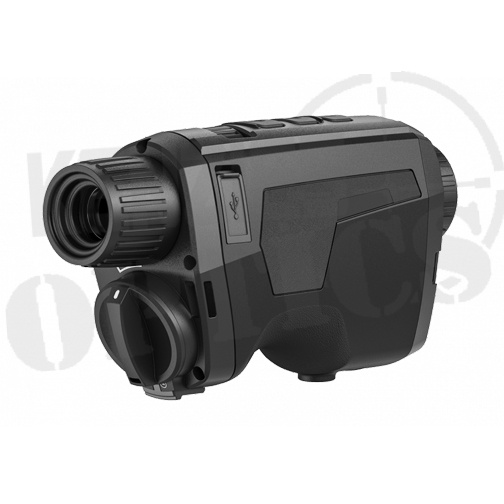

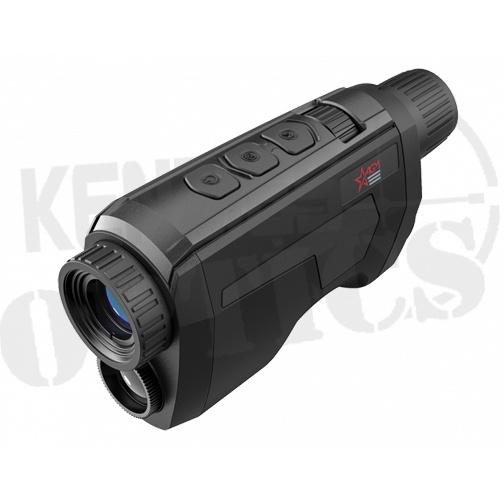

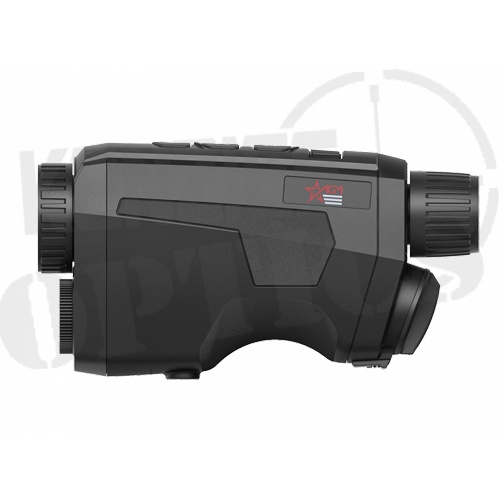

AGM Fuzion TM25-384 Thermal Monocular

The AGM Fuzion TM25-384 is a Handheld Thermal and Optical Bi-Spectrum Monocular, and was designed to quickly detect hiding objects under extreme environments. It is equipped with 12μm high sensitivity thermal detector, ultra low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The Fuzion’s user friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple.

The monocular offers three different variants of image view: thermal, visible light and fusion that can be easily adapted depending on different environmental conditions. It is powered by one 18650 rechargeable Lithium battery for up to 5 hours of operating time. In addition, an external power supply can be used to provide an increase in operating time. The waterproof monocular can be widely applied to scenarios including patrol, search and rescue, and more.

AGM Fuzion TM25-384 Features

Bi-spectrum image fusion and object highlight

Detail enhancement and target recognition

Selection of thermal view channel, visible light channel, or both them combined

12 μm, 35 mK NETD high sensitivity thermal detector

Fast 50 Hz imaging

1x, 2x, 4x, 8x digital zoom

Digital image processing technology

Ultra low illumination optical channel

1920×1080 Optical resolution

1024×768 resolution, 0.39 inch OLED display

Video recording and snapshot, built in EMMC (16 GB)

WiFi hotspot

Standby mode

Up to 5 hours continuous running

Waterproof

Limited 3 Year Warranty

Data Sheet




Specifications

Wavelength Optical Sensor Wavelength 400-1000 nm
Palettes Black Hot

White Hot

Red Hot

Fusion

Visible

Image Fusion

Scene Mode Jungle, Recognition
Hotspot Yes
Observation Distance 1x, 2x, 4x, 8x
Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Image Sensor Optical Image Sensor 1/2” Progressive Scan CMOS, 1960×1200@25fps
Response Waveband 8 μm to 14 μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh Rate 50 Hz
Aperture F1.0
Resolution 384 × 288
Optical Magnification 2.5x – 20x
Lens (Focal Length) Optical Module Lens Focal Length – 22mm Thermal Lens Focal Length – 25mm
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Field of View (H × X) 10.5° × 7.9°
Digital Zoom 1x, 2x, 4x, 8x
Monitor 1024×768, 0.39 inch, OLED, 50Hz
Storage Built in 16 GB EMMC
Record Video On board video recording
Capture Snapshot Yes
Battery Type One 18650 rechargeable battery (removable)
CVBS Output Yes (via USB)
Battery Operating Time Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display Yes
Operating Temperature Range -20°C to 55°C

(-4°F to 131°F)

Weight 470 g

(1.04 Ib)

Overall Dimensions 161 × 87 × 51 mm

(6.3 × 3.4 × 2.0 in)

Protection Level IP67 (Waterproof)

Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
