Description

AGM PVS-14 3AL1

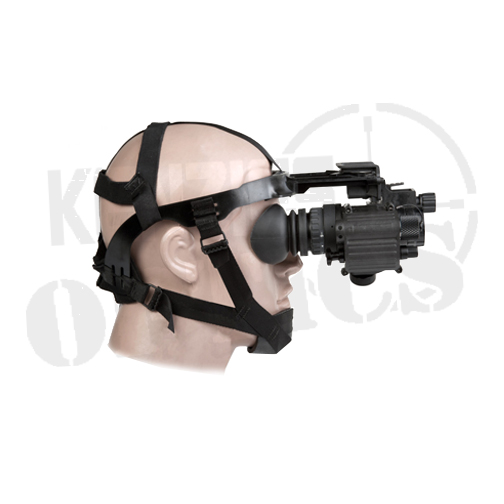

The AGM PVS-14 3AL1 was created to be lightweight and rugged for nighttime operations.  This multi purpose night vision device has proven itself in combat repeatedly.  It is used worldwide in some of the most demanding environments. It can be used as a handheld device, or can be mounted on the included head harness, or can also be mounted to a combat helmet or weapon. The PVS-14 is built of the highest quality form and function, and conforms to the 810G Military standards.

This monocular weighs less than 12.4 oz. Features on the PVS-14 includes manual gain control, an automatic bright light shut-off, and a built in infrared illuminator. The brightness control gives you a consistent, and steady image that automatically adjusting the visual in real time, based on the amount of light in the area. The bright light shut off feature guarantees that the high quality photocathode tube is protected.There is an array of available accessories for the PVS-14 to help with any operation.

PVS-14 3AL1 Features

Compact, rugged design

Waterproof

Weapon mountable

Head or helmet-mountable for hands-free usage

Manual gain control

Ergonomic, simple, easy-to-operate controls

Built-in Infrared illuminator and flood lens

Limited two-year warranty


Specifications

Image Intensifier Tube Gen 3 Auto-Gated Emerald “Level 1”
Resolution 64-72 lp/mm
Field of view cleanness by zone Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

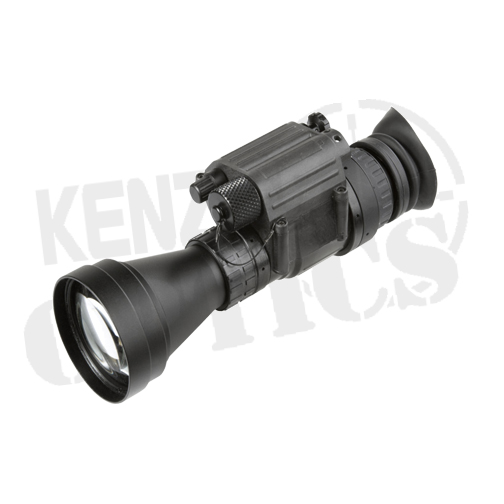

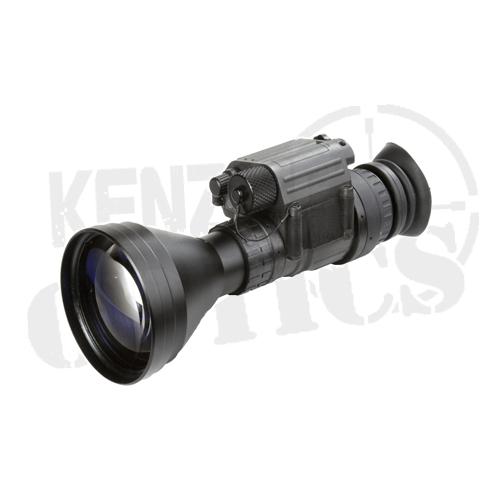

Magnification 1x (3x and 5x optional)
Lens System 26 mm; F/1.2
FOV 40°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +4 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Infrared Illuminator Yes
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One AA Alkaline
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range -51° C to +85° C (-60° F to 185° F)
Weight 0.32 kg (12.4 oz)
Overall Dimensions 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
