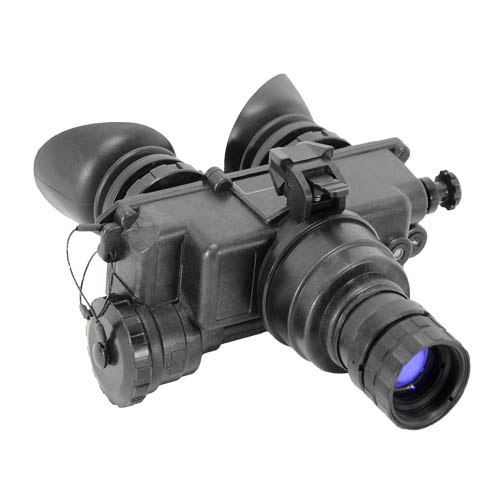

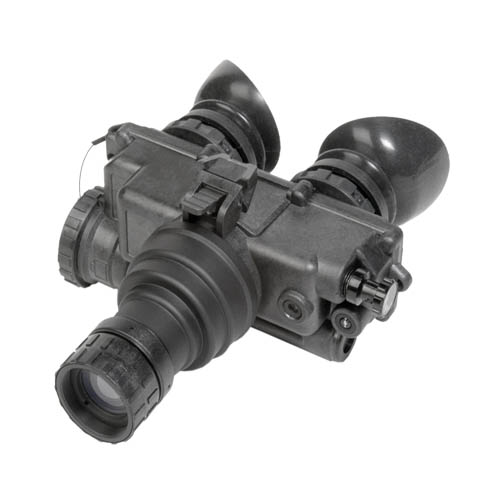

AGM PVS-7 Night Vision Goggles

The AGM PVS-7 Night Vision Goggles are U.S. Military grade night vision goggle devices that have proven their worth, and are the highest quality AN/PVS-7 B/D system on the market. The PVS-7 is equipped with either a Gen 2+ or Gen3 image intensifier tubes. It features an automatic brightness control (ABC) it regulates image brightness to sustain image definition and clarity in changing light environments. The built-in infrared illuminator allows you to operate in complete darkness without being detected, by providing a light source outside the visible spectrum.  The PVS-7 is lightweight, rugged and versatile. It can be used as a handheld or mounted to a helmet. It is also compatible with an afocal magnifier for long range viewing.

AGM PVS-7 Night Vision Goggles Features:

Compact, rugged design

Waterproof

Head or helmet mountable for hands free operation

Ergonomic, simple, easy to operate controls

Built-in Infrared illuminator and flood lens

Limited two year warranty

Data Sheet

User Manual


Specifications

Image Intensifier Tube Gen 2+ “Level 1″/ Gen 2+ “Level 2″/ Gen 2+ “Level 3″/ Gen 3+ “Level 1″/ Gen 3+ “Level 2″/Gen 3+ “Level 3″/Gen 3 Auto-Gated “Level 1”
Magnification 1x
Lens System 27 mm; F/ 1.2
FOV 40°
Focus Range 0.2 m to infinity
Diopter Adjustment -6 to +2 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Automatic Brightness Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Infrared Illuminator Yes
Battery Type 2 AA Alkaline or 1 Lithium (BA-5567/ U)
Battery Life (Operating) Up to 30 hours at 20°C
Operating Temperature Range -40°C to +50°C (-40°F to +122°F)
Storage Temperature Range -50°C to +70°C (-58°F to +158°F)
Weight 0.68 kg (1.5 lbs)
Overall Dimensions 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)
Package Includes Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual





More from AGM

Additional information

Weight N/A
Image Intensifier Tube Options

Gen 3+ Green Phosphor "Level 1", Gen 3+ White Phosphor "Level 1"
