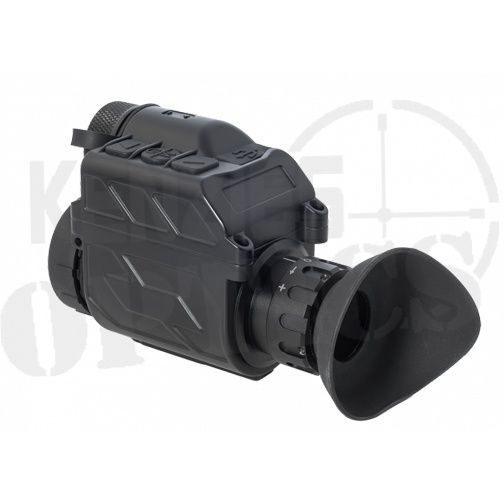

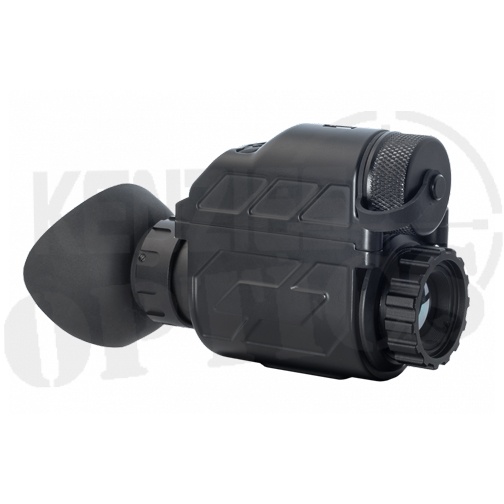

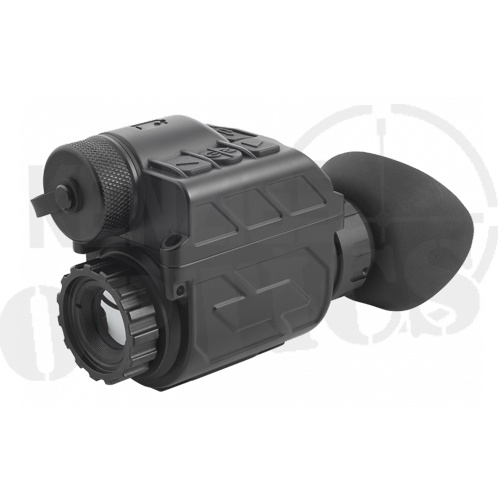

AGM Sting IR 384 Thermal Monocular

The AGM Sting IR 384 is a thermal monocular that can be helmet mounted for hands free use or be operated as a handheld device. With its ultra compact design and weighing in at only 7oz it is barely noticed when packing out. It was designed with 384×288 12μm high sensitivity infrared detector and high resolution OLED display. It supports functions of observation, digital compass, inclinometer, and more. The high sensitivity built in thermal detector provides you with clear view even in total darkness. The AGM StingIR is a full featured unit, weighing less than 7 oz. The monocular can be used as a handheld device, or mounted on the head harness or helmets for hands free operations. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.

AGM Sting IR 384 Features

12μm high sensitivity detector

384×288 resolution

Head or helmet mountable for hands free usage

Compact, sturdy design

High resolution OLED display

Multiple thermal image palettes

Device supports up to 8× digital zoom

Powered by one CR123A/RCR123 or 18650 Lithium battery

Up to 5 hours continuous running

Digital compass and inclinometer

Type-C interface

Limited 3 year warranty

Package Includes

Monocular

Helmet adapter bracket

18650 battery cap

USB Type-C cable

Operation manual

Hard case

Data Sheet

User Manual


Specifications

Digital Compass Yes
Palettes Default, Outdoor, Arctic, or Rainforest
Exit Pupil Diameter 20 mm
Detector type 12 μm Uncooled VOx Microbolometer
FFC (Flat Field Correction) Auto (1 to 10 min. interval) or Manual
Refresh rate 50 Hz
Aperture F1.3
Resolution 384×288
Optical magnification
Lens (focal length) 16 mm
Field of view (H × X) 16.3° × 12.3° (H × V)
Digital zoom 1×, 2×, 3×, 4×
Diopter adjustment range -5 to +2 dpt
Monitor 1024×768 OLED
Video output PAL video output via USB port
Battery Type One CR123A(3V)

RCR123(3.7V)

18650(4.2V)

Battery Operating Time CR123A – up to 3 hours

RCR123 – up to 2 hours

18650 – up to 5 hours

External power supply 5 VDC/2 A, 1.5 W
Operating Temperature Range -10°C to 60°C

(14°F to 140°F)

Weight 200 g

(7.0 oz)

Overall Dimensions 140 × 70 × 50 mm

(5.5 × 2.7 × 2.0 in)

Protection Level IP67






Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
