Aimpoint Micro T-2 Red Dot Reflex Sight w/ no Mount – FDE
Looking for an optics that was designed to be extremely rugged, lightweight and compact in size, look no further than the Aimpoint Micro T-2. It has unmatched optical clarity and can withstand the physical abuse necessary for demanding end users. The optic features innovative lenses with cutting edge reflective coatings, this radically improves the shape and clarity of the 2 MOA dot. ACET technology allows 50,000 hours (over 5 years) of constant operation with on CR2032 battery on setting 8.

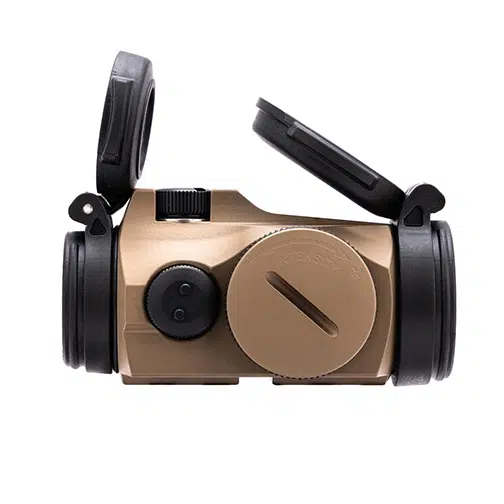

The Micro T-2 optic features recessed lenses with protective flip up lens covers. The front cover is solid and rear is transparent – allowing the user to shoot with both eyes open while the lens caps are closed in an emergency situation. The sight housing is constructed of hard anodized aluminum alloy for optimal protection of the electronic and optical components in all types of environmental conditions. Aimpoint 3XMag-1 and 6XMag-1 magnifiers and all generations of night vision devices pair perfectly with the Micro T-2 sight.
Aimpoint red dot sights are operationally parallax free, which means the visible dot remains parallel to the bore of your weapon no matter what angle your eye is in relation to the sight. Therefore, the user never has to worry about centering the dot inside the sight. If you have a proper zero, when the dot is on the target, so are you. Aimpoint red dot sights increase confidence by allowing the shooter to focus on the target while keeping both eyes open, fully situationally aware at all times. Users can achieve first round hits faster with greater confidence.
Aimpoint Micro T-2 Features
2 MOA red dot for precision and fast target acquisition
Battery life: 50,000 hours (over 5 years) of constant operation with one battery on setting 8
Battery type: CR2032 battery (included)
Flip-up lens covers – front is solid, and rear is transparent – allowing the user to shoot with both eyes open and lens caps closed in an emergency situation
Advanced optical lenses for enhanced light transmission and ultimate dot clarity
Reinforced protection of the turrets for even greater ruggedness
Hard anodized non-reflective surface
12 brightness settings: 1 off position, 4 night vision compatible settings, and 8 daylight settings
1X (non-magnifying) operationally parallax free optic
Submersible to 80 feet (25 meters)
Temperature span -49°F to +160°F
Weight 3.0 oz / 84 g (sight only)
Specifications |
||||||
Operating Principle | Reflex Collimator sight with LED | |||||
Optical Magnification | 1x | |||||
Aiming Dot Size | 2 MOA | |||||
Dot Intensity | Visible against a background luminance of 0.1 to 55,000 1x | |||||
Optical Signature | No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD | |||||
Dot Color | Peak Wavelength 655 +/- 15nm | |||||
NVD Compatible | Yes | |||||
Optical Coating | Anti Reflex, all surfaces and multi-layer. NVD compatible. | |||||
Clear Aperture | 18mm (.71 in) | |||||
Eye Relief | Unlimited | |||||
Battery Type | 3V lithium battery, type CR2032 | |||||
Battery Life | Day time use: 5 years (50,000 h) of continuous use at pos. 8 over 10 months at pos. 10, and more than 500,000 hours at NVD settings (pos. 1-4) | |||||
Power Intensity | 4 NVD and 8 Daylight, of which 1 extra bright | |||||
Size LxWxH Sight Only | 68x41x36mm
(2.7×1.6×1.4 in) |
|||||
Size LxWxH Conf | 79x41x47mm
(3.1×1.6×1.9 in) |
|||||
Weight (Sight Only) | 94g
(3.3 oz) |
|||||
Weight (Conf) | 130g
(4.6 oz) Includes lens covers & mounts |
|||||
Housing Material | High strength aluminum | |||||
Housing Anodized | Yes | |||||
Material Mount & Spacer (Standard Conf) | High Strength aluminum | |||||
Material Lens Cover | Thermoplastic Elastomer (TPE) | |||||
Height of Optical Axis | Sight and mount – 20mm (0.8 in) measured from top surface of Picatinny / Weaver rail
Sight mount, and low spacer – 30mm (1.2 in) measured from top surface of Picatinny Weaver rail Sight, mount and high spacer – 39mm (1.2 in) measured from top surface of Picatinny / Weaver rail |
|||||
Adjustment | Range +/- 1 m at 100 meters (+/- 1 yds at 100 yds) in windage and elevation, 1 click = 13mm at 100 meters = 10 mm at 80 meters = .4 in at 100 yards | |||||
Submersible | 25m
(80ft) |
|||||
Temperature Range Operation | -45C to 71C
(-49F to 160F) |
|||||
Temperature Range Storage | -51C to 71C
(-60F to 160F) |
|||||
Temperature Shock | Operable after a temperature shock between -45C and 71C (-49F and 160F) | |||||
Humidity | Operable during and after humidity Limits: RH: 95%, Temp: 20C to 50C (68F to 122F), cyclic | |||||
Shock | Withstands shock. Limits: X axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g +/- 4g, 11 +/- 1ms (2 shocks in each direction, Z-axis: 40g +/- 4g, 11 +/- 1ms, 2 shocks in each direction | |||||
Vibration | Withstands vibration. Limits: vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, +/- 1.587 mm, Frequency: 30-150 Hz. 5.75g, 1 octave/min. Direction: X, Y, and Z, Time: 30 min/direction. | |||||
Chemical Resistance | Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents |
