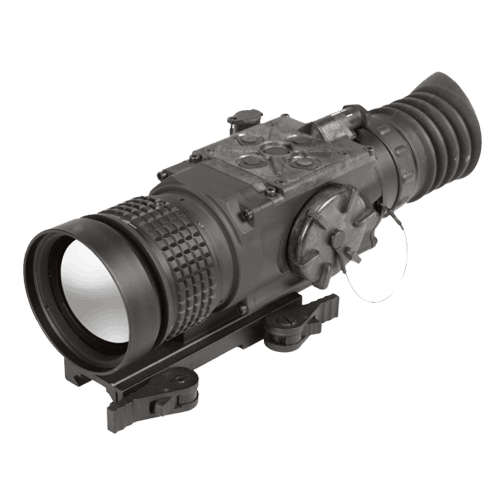

ARMASIGHT by FLIR Zeus 336 3-12×50 (60Hz) Thermal Imaging Rifle Scope
In addition to being the smallest and lightest in their class, Zeus Thermal Imaging Weapon Sights are characterized by their simple and intuitive controls, functions and features that are layered among direct button adjustments, direct combination button functions, and electronic menu selections. This “layering” of easy-to-understand control functions provides the operator with a framework for customizing his preferences and exploiting the robust variety of setting options available in the Zeus. The Zeus has a series of selectable color modes based on a rich, upgradeable software package. A wireless remote switch is included to activate the Zeus Thermal Imaging Weapon Sight when positioned in the “standby” mode. The Zeus has the ability to record imagery and is equipped with a video-out capability in operator selectable NTSC or PAL formats. The Zeus uses the same multi-pin connector to provide both video-in imagery, where there is a need for map display overlay, and external power access.
Zeus weapon installation is easy, repeatable, and reliable based on a unique and highly user-friendly MIL-STD-1913/WEAVER/PICATINNY rail compatible quick-release locking mechanism. The solid state technology and software algorithms combined with a complimentary color reticle platform used in the Zeus Thermal Imaging Weapon Sight ensure maximum reticle contrast, high level target accuracy, and boresight retention that cannot be achieved with mechanical boresight adjusters and traditional ballistic drums. This level of accuracy is translated into the electronic zoom (e-zoom) function of the Zeus Thermal Imaging Weapon Sights which can be progressively increased from 1x to 2x and 4x without changing the point-of-aim to point-of-impact relationship of the targeting reticle.
Armasight is convinced that the Zeus Thermal Imaging Weapon Sight represents one of the most sophisticated sighting devices available to hunters, SWAT Teams, and the Military on the market today based on superior price-to-performance value.
Special User – Adjustable Imaging Tool
- Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
- Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
- Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
- Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Zeus models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
- Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Zeus models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.
The lightest and most compact scope in its class
Optical magnification 3.4x(PAL)/ 2.8x(NTSC)
User selectable NTSC or PAL format
The latest Tau 2 17-micron uncooled FLIR core technology
Pixel array format: 336×256
Display type: AMOLED SVGA 800×600
Easy and intuitive drop-down user interface
Fast 30Hz or 60Hz imaging
Digital e-zoom: 1x, 2x and 4x
Color modes: White Hot/ Black Hot/ Rainbow/ Various Color Modes
6 onboard digitally controlled reticle patterns available: “Dot 4 MOA,” “Line Dot,” “Cross-Center Dot,” “Cross,” “Crosshair,” and “No Reticle”
Reticle colors: Black, White, Red, Cyan
Electronic zoom reticle tracking capability maintaining boresight
Imaging Filter Algorithms:
– Active Contrast Enhancement™ (ACE)
– Second Generation Digital Detail Enhancement™ (DDE)
– Smart Scene Optimization™ (SSO)
– Automatic Gain Control (AGC)
– Silent Shutterless Non-uniformity Correction™ (SSN)
Extended operation time with optional external battery power supply
Recording: video output / Optional video recorder with onboard replay
Wireless remote control for tactical operations
CNC machined aircraft-aluminum alloy construction
MIL -STD-1913 (Picatinny Rail) Quick release mount
Integral MIL-STD-1913 Rails on unit for optional day optics or accessories
Shuttered eyeguard to prevent facial display backsplash and maintain light security
Made in the USA
Limited 3-year warranty
10-years warranty on FLIR detector
|Refresh Rate||60 Hz|
|Focal Plane Array||FLIR Tau 2|
|Pixel Array Format||336×256|
|Pixel Size||17 µm|
|Pixel Display Format||800×600|
|Display Brightness||8 Levels|
|Objective Lens||50 mm|
|Exit Pupil Diameter||10 mm|
|Eye Relief||45 mm|
|Focusing Range||5m to inf.|
|Diopter Range||±5 diopter|
|Battery Life||Up to 4 hr|
|Operating Temperature||-40°C to +50°C
-40°F to +122°F
|Storage Temperature||-50°C to +70°C
-58°F to +158°F
|Weapon Mount Type||Picatinny MIL-STD 1913 Weaver Rails|
|Weight (w/o Batteries)||0.7 kg
|Warranty on FLIR detector||10 Years|
