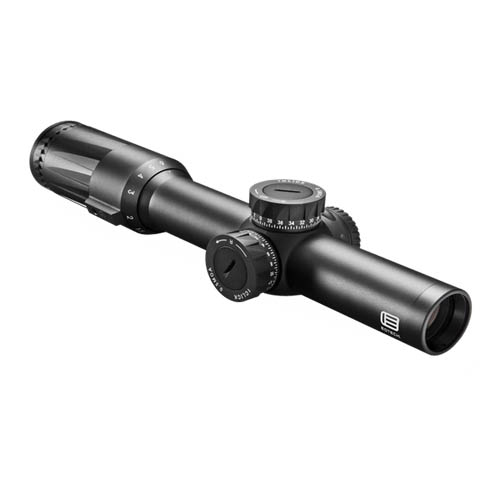

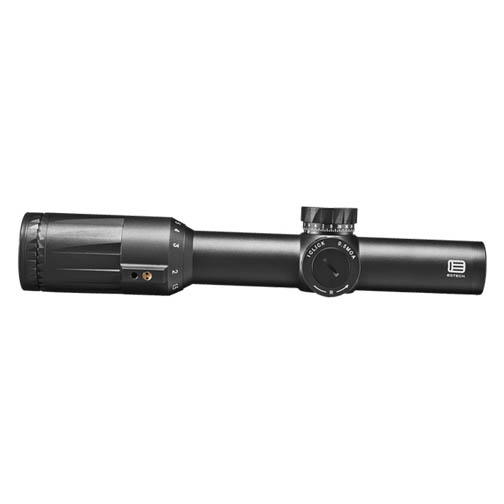

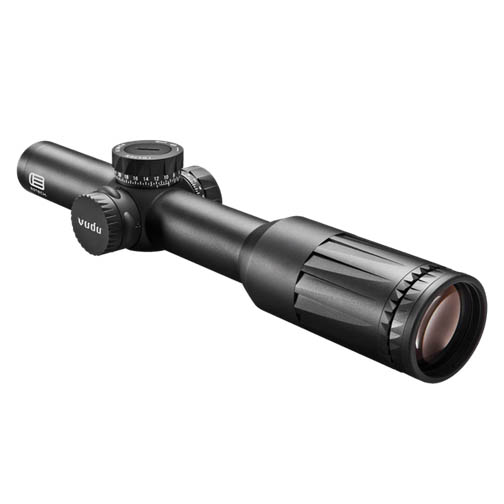

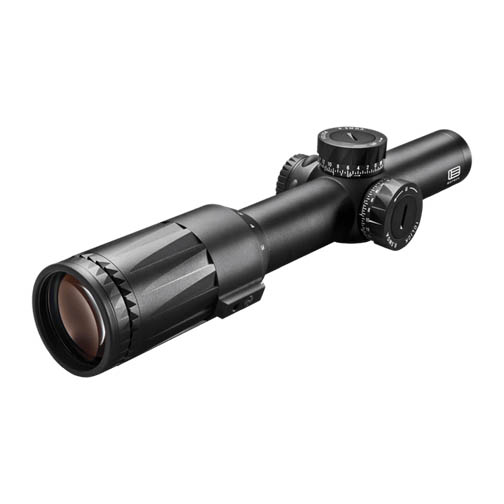

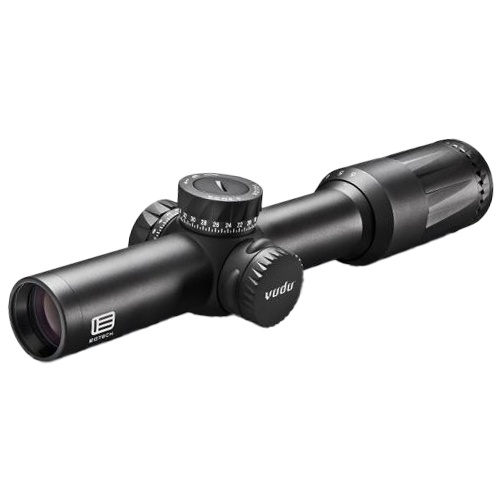

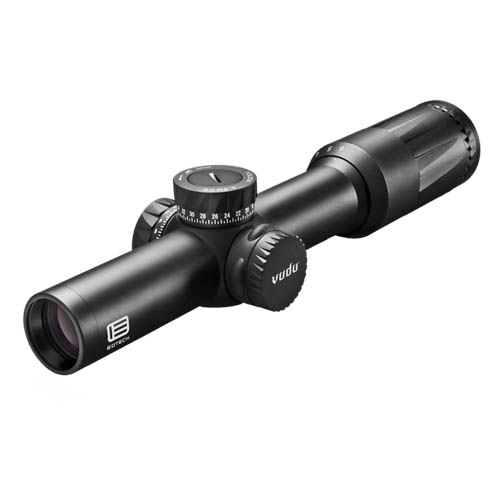

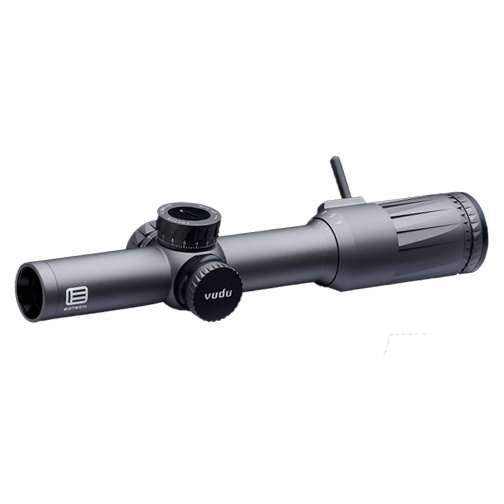

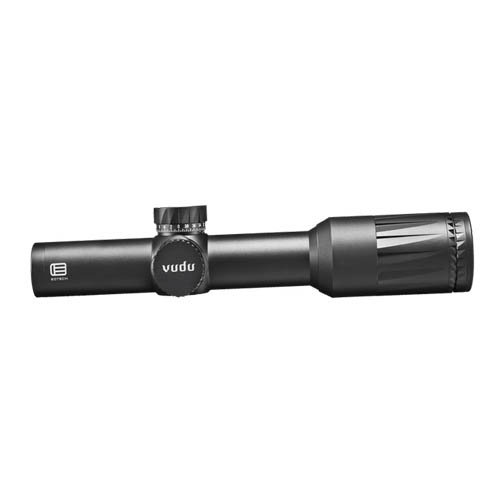

EoTech Vudu 1-6x24mm FFP Precision Scope

The EoTech Vudu 1-6x24mm FFP Precision Scope is compact, yet fully loaded. Crafted with the 3 gun and serious hunter in mind, this is an optic that feels as much at home on the AR platform as it does on your favorite bolt action rifle. The EOTech Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6x is the perfect solution for short to medium range applications that require the highest level of durability and accuracy.

EoTech Vudu 1-6x24mm FFP Precision Scope Features

Aircraft Grade

Aircraft grade aluminum, single piece construction with anodized finish for extreme durability. Laser etched adjustment indicators and push button illumination controls for tracking east. Water resistant, fog resistant, shock resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XC high density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge to edge clarity. Water resistant, for resistant, shock resistant with single construction eyepiece.

Product Manual

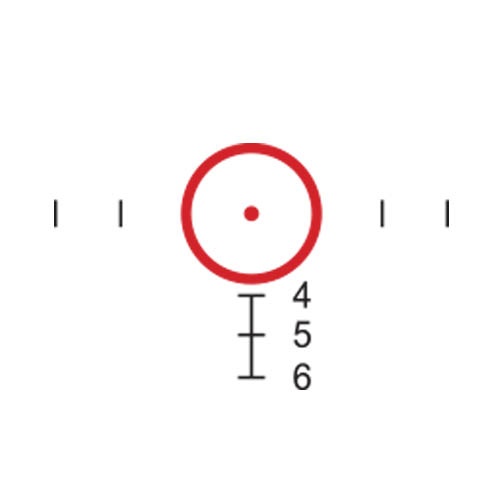

SR2 Reticle

The SR2 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 7.62 mm (M118LR) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer range shots.

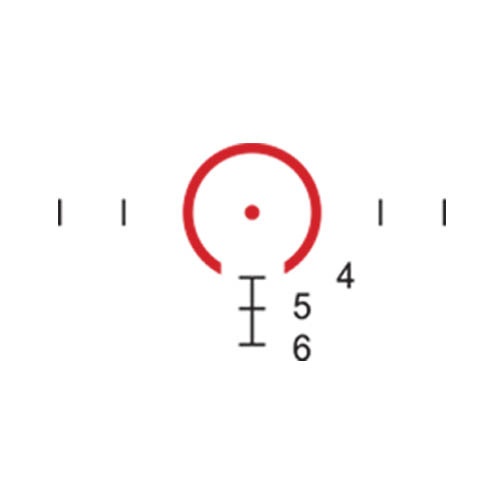

SR3 Reticle

The SR3 incorporates the iconic EOTECH illuminated speed ring along with a BDC inner reticle calibrated for the 5.56 mm (75gr. BTHP) out to 600 yards. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner BDC comes into view for more precision on longer range shots.


Specifications

Magnification 1-6x
Objective Lens 24mm
Focal Plane First Focal Plane
Eye Relief 1x: 83-100mm

6x: 82-100mm

Exit Pupil 1x: 11.4mm

6x: 4.0mm

Field-Of-View (Degrees) 1x: 19.4 degrees

6x: 3.2 degrees

Field-Of-View (@100 Yards) 1x: 102.4 ft

6x: 16.7 ft

Exterior Finish Flat Black; Type III anodized
Illumination Controls Push Buttons
Treatment Lens Coating Anti-reflection coating
Windage and Elevation Increment Per Click SR2, SR3 Models: Approx. 0.5 MOA

SR1 Model: Approx. 0.2 MRAD

Total Elevation Adjustment ± 14.5 min MRAD or ± 50 MOA
Total Windage Adjustment ± 14.5 min MRAD or ± 50 MOA
Battery Type CR2032
Auto Power Shut-Off Time Approx. 2 hrs
Battery Life Approx. 500 hrs
Overall Length 270 mm

(10.63 in)

Weight 20.1 oz

(570 gr)

Tube Diameter 30mm






More Rifle Scopes

Additional information

Weight N/A
Color

Black, Grey

Reticle Color

Green, Red

Reticle Options

, ,
