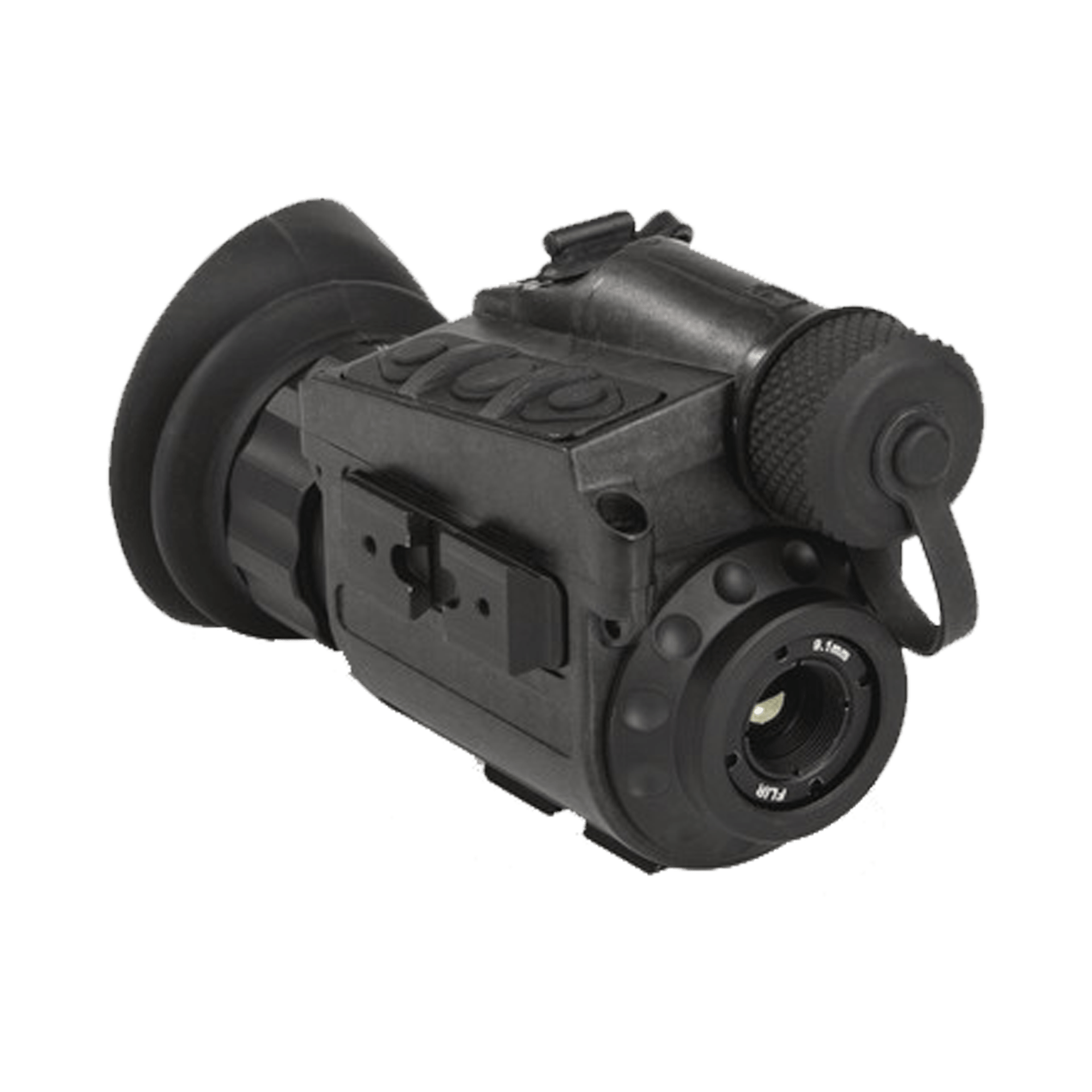

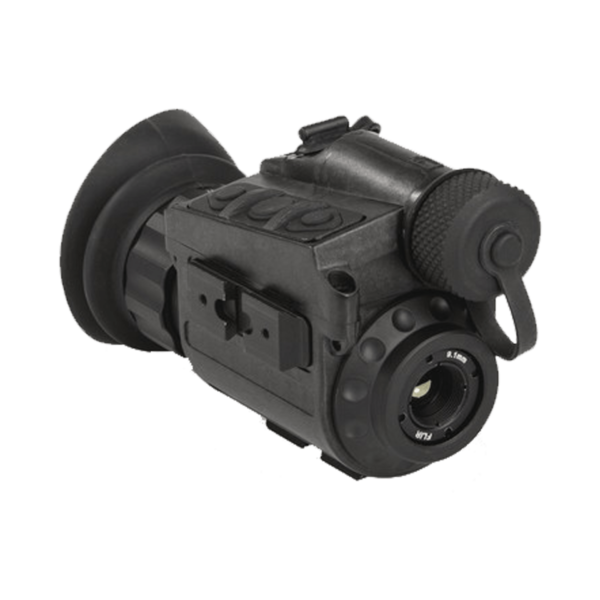

FLIR Breach PTQ136 – 320×256 Boson Core 60Hz


Out of stock

Want to be notified when this product is back in stock?

SKU: TAB176WN8Q14001 Categories: , , , , Tags: , , , ,


Built for the rigors of law enforcement, the FLIR Breach PTQ136 spots the heat of suspects and objects in total darkness. Featuring the new FLIR Boson core and a compact design, the handheld FLIR thermal monocular offers unmatched tactical awareness.  Weighing only 7.4 ounces (210 grams), the FLIR Breach Thermal PTQ136 can be concealed in a pocket or mounted to a helmet with its mini-rail feature, while adding minimal weight to officers’ heavy gear. Additional features include onboard recording and seven palettes for fast detection of suspects or evidence, day or night.

FLIR Breach Thermal PTQ136 Features

Exceptional Vision

The advanced image processing of the internal FLIR Boson thermal core and a bright high definition display create excellent image clarity and provide better detection and classification, day or night. The very same core is used in the Flir ThermoSight Pro series which sets the new standard for weapon mounted thermal optics.

Convenient Hands Free Operation

For hands-free operation, the FLIR Breach Thermal PTQ136 has multiple mini-rail mounting points designed to allow for a wide variety of head mounts, helmet mounts, and to install additional equipment.

Superior Value

This handheld FLIR Breach thermal monocular documents operations with on-board video recording and image capture. Choose from multiple palettes to perfect viewing during varied situations. Enhance situational awareness with a digital compass/inclinometer

FLIR Breach Thermal PTQ136 Specifications

Detector Type: 320 × 256 VOx Microbolometer

Digital Zoom: 1× – 4× continuous

Eye Relief: 16 mm

Field of View [H x V]: 24° × 19°

Image Processing: FLIR Proprietary Digital Detail Enhancement

Internal Memory: Up to 1,000 images and 2.5 hours of video on internal memory

Package Includes: Thermal Monocular, CR123A Battery, Lens Cloth, Soft Case

Size: 139 × 70 × 49 mm (5.5 × 2.7 × 1.9 in)

Start up: < 1.5 seconds

Weight: 210 g (0.46 lbs)

Lens System: 9.1 mm; F/1.04

Optical Magnification: 1×

Operating Temperature Range: -20°C to +50°C (-4°F to +122°F)

Storage Temperature Range: -40°C to +60°C (-40°F to +140°F)

Battery Life (Operating): Up to 90 minutes at 20°C

Battery type: One CR123A 3V Lithium battery

Display: Quad-VGA (1280 × 960) FLCOS

Video Output: Digital Video

Control Panel Buttons: Configures Operational Settings Unit On/ Off, Display Brightness Control, Image Palette Control, Digital Zoom Control, On-Screen Menu Navigation, NUC.

Refresh Rate: 60 Hz

Diopter Adjustment Range: -5 to +5 dpt

Warranty Information
