Leupold VX-5HD 1-5x24mm Duplex Reticle


The VX-5HD is taking optical performance to a whole new level. We gave it a High-Definition optical system for sharpened clarity, and the Twilight Max™ Light Management System for even greater low-light performance, giving hunters a visible advantage at dawn and dusk when the biggest game is on the move.  The covered pop-up windage and elevation dials provides fast and accurate sight-in and easy rezero.

Out of stock

Email when stock is available

Leupold VX-5HD 1-5x24mm

Don’t let its small stature fool you, this scope is big game ready. At only 13.4 ounces, Leupold’s VX-5HD 1-5×24 rifle scope was built for long days in the wilderness. But it’s 1-5 magnification range also makes it a great choice for competition shooters or tactical applications. The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. With the Twilight Max HD Light Management System, it’s purpose built for the toughest lighting conditions. Rugged and reliable, the VX-5HD is ready for your next adventure.

VX-5HD 1-5x24mm Features

Fast Focus Eyepiece

Brings the reticle into focus quickly with Fast Focus eyepiece

Punisher Tested

Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.

Rear Focal Plane (RFP)

Rear focal plane reticles remain fine and minimally cover the target at high power.  Subtensions change with zoom, allowing tuning of ballistic reticles.

Twilight Max HD Light Management System

See more in less light with Twilight Max HD Light

Management System

Adds up to 30 extra minutes of shooting light

 Eliminates 90% more glare producing stray light than competitors

 Premium high definition edge to edge lens clarity

Ultra Lightweight Design

Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction

Waterproof & Fog Proof

Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.

Durable Lens Cover

A field functional and durable bikini style lens cover is included for excellent lens protection both in the field and while in storage.

Pop Up Rezero Adjustments

Pop-up re-zero finger click windage and elevation adjustments assure maximum adjustment range, precision and instant re-zeroing. The adjustment dials can be repositioned to align with the marked zero indicator of the adjustment without changing the adjustment setting of the scope.

30mm Maintube

The 30mm maintube offers incredible strength and increased range of windage and elevation adjustment.

Guard Ion Lens Coating

Sheds dirt and water for clear, crisp images with the Guard ion lens coating

5:1 Zoom Ratio

Versatile magnification range offers a wide field of view at low power and precise target identification at high power.

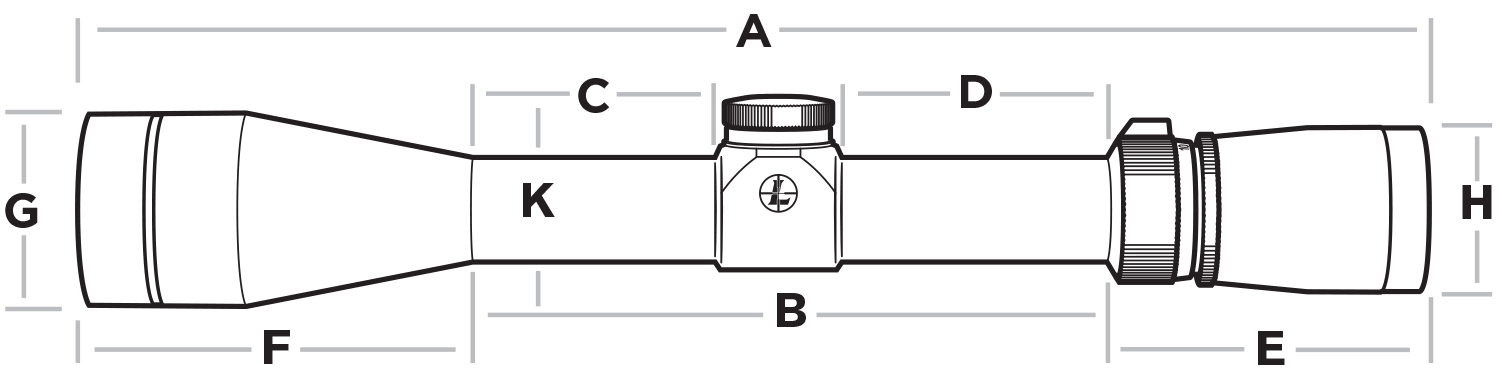

Length – A (in) 10.76
Mounting Space – B (cm) 17.2
Illustration – C 2.85
Illustration – D 2.55
Eyepiece Length – E 3.31
Objective Length – F N/A
Objective Diameter – G 1.18
Eyepiece Diameter – H 1.8
Tube Diameter- k (mm) 30
Mounting Space – B (in) 6.76



Weight 13.7
Linear FOV (ft/100 yd) – Low 123.2
Linear FOV (ft/100 yd) – High 22.5
Length (in) 10.76
Linear FOV (m/100 m) – Low 41.07
Linear FOV (m/100 m) – High 8.12
Length (cm) 27.3
Eye Relief (in) – Low 3.70
Eye Relief (in) – High 3.82
Eye Relief (mm) – Low 94
Eye Relief (mm) – High 97
Weight (g) 388
Elevation Adjustment Range (MOA) 170
Elevation Adjustment Range (MIL) 49.5
Windage Adjustment Range (MOA) 170
Windage Adjustment Range (MIL) 49.5
Exit Pupil (mm) – High 4.8
