Description

Features

2nd Generation Argon/Krypton Waterproofing

Features our exclusive, proprietary Argon/Krypton gas blend, which nearly eliminates the effects of thermal shock, and reduces the diffusion of gases sealed inside your scope even more than our proven nitrogen technology already does.

6:1 Zoom Ratio

A powerful 6:1 zoom ratio delivers crystal clear images from edge-to-edge throughout the entire magnification range, and the Twin Bias Spring Erector System features berylium/copper alloy leaf springs and 30% more holding force to withstand the most intense recoil and abuse.

Generous Eyebox

Get on target faster so you can take the shot of a lifetime. Even at higher powers, the longer eye relief and generous eyebox provides incredible head position latitude, edge-to-edge brightness, and a full clear sight picture that fills the eyepiece completely.

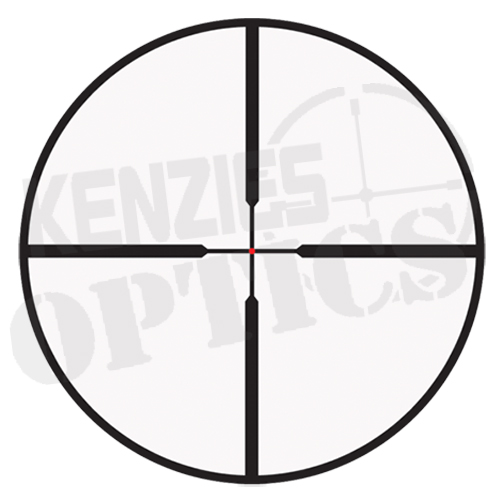

FireDot Illumination

Our powered fiber optic reticle technology provides the perfect blend of daylight illumination and optimal light transmission and contrast for low light hunting situations.

Twin Bias Spring Erector System

The twin bias spring exerts up to 30 percent more holding force on the erector, virtually eliminating erector system backlash and stress on the vital internal workings of the scope, for longer life.

MST (Motion Sensor Technology)

Proprietary MST (Motion Sensor Technology) automatically deactivates illumination after 5 minutes of inactivity, yet reactivates instantly as soon as any movement is detected.

30mm Maintube

The 30mm maintube offers incredible strength and allows for the greater range of windage and elevation adjustment.

6061-T6 Aircraft Quality Aluminum

Crafted from 6061-T6 aircraft quality aluminum.

Push Button Illumination

One button brightness control with a high/low indicator keeps it simple.

Guard-Ion Rain Shedding Coating

Our Guard-Ion rain shedding coating is extremely durable, scratch resistant, and sheds water, dirt, and fingerprints.

Reversible Throw Lever

The reversable throw lever clamps onto VX-6HD power selector to provide leverage for fast magnification changes, left or right handed.

Alumina Flipback Lens Covers Included

Includes our high-quality Alumina flip-back lens covers.

CDS-ZL2 Zero Lock Adjustment with Revolution Indicator

The CDS-ZL2 elevation adjustment dials easily for quick sight-in and to set for target ranges. Press the ZeroLock button to release and dial as much as 38MOA elevation. Dial back to zero and the lock snaps back into place automatically, ensuring correct re-zero and that the dial cannot accidentally move.

Zero Lock Windage Adjustment

ZeroLock prevents unintended adjustments and ensures an accurate return to zero.  Fast and easy to use.

Electronic Reticle Level

Shoot your VX-6HD more accurately at longer distances by using the easy-to-use Electronic Reticle Level. Activate the level by holding down the illumination push button for 15 seconds, and repeat to deactivate. The level feature also temporarily deactivates illumination when you rotate the scope over 30 degrees, so you can lay the rifle on its side to save battery power.

Twilight Max HD Light Management System

Resolve finer details at longer ranges in the widest range of weather and lighting conditions throughout the day.  Engineered to be the industry standard of performance, the Twilight Max HD Light Management System combines exceptional light transmission and glare management to provice vivid, bright, high contrast images from dawn until dusk.


Specifications

Weight (oz) 13.4
Linear FOV
(ft/100 yd)-Low
116
Linear FOV
(ft/100 yd)-High
19
Linear FOV
(m/100 m)-Low
36.6
Linear FOV
(m/100 m)-High
6.3
Eye Relief
(in)-Low
3.8
Eye Relief
(in)-High
3.8
Eye Relief
(mm)-Low
97
Eye Relief
(mm)-High
97
Objective
Diameter
(in)
0.9
Weight
(g)
380
Elevation
Adjustment
Range
(MOA)
170
Windage
Adjustment
Range
(MOA)
170

Specifications

Length-A
(in)
11.2
Length-A
(cm)
27
Mounting
Space-B (in)
7.4
Mounting
Space-B(cm)
18.8
Illustration
C
3.5
Illustration
D
2.5
Eyepiece
Length-E
3.3
Objective
Length-F
1.2
Objective
Diameter-G
1.2
Eyepiece
Diameter-H
1.8
Tube
Diameter-k(in)
1.18
Tube
Diameter-k(mm)
30

Additional information

Weight 0.8 lbs
