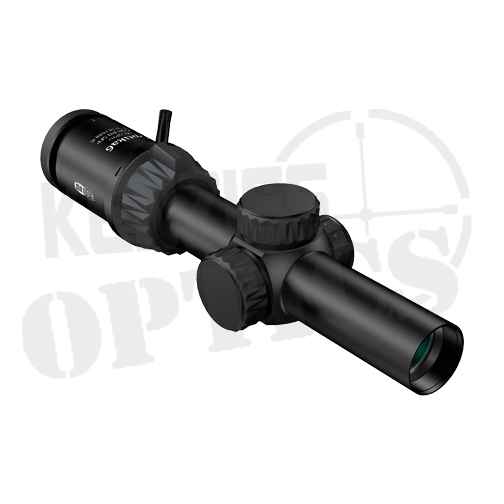

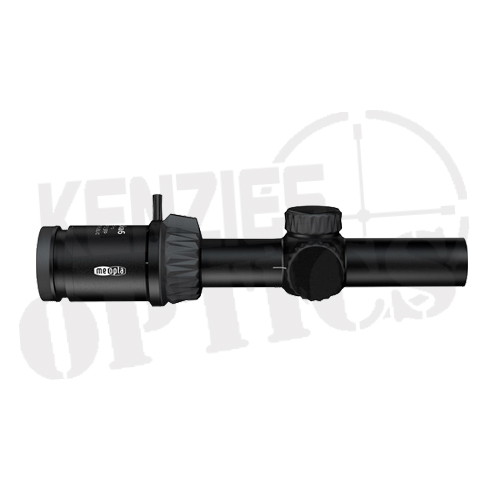

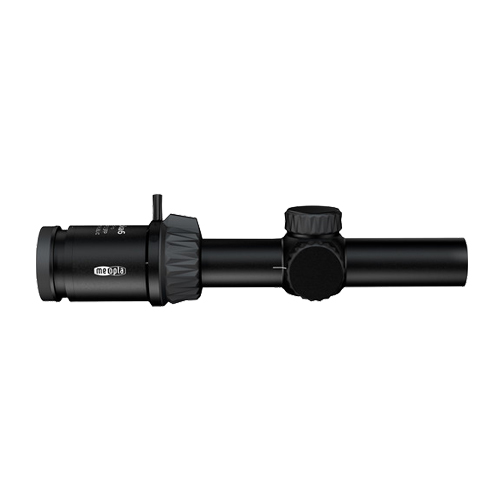

Meopta Optika6 1-6x24mm Scope

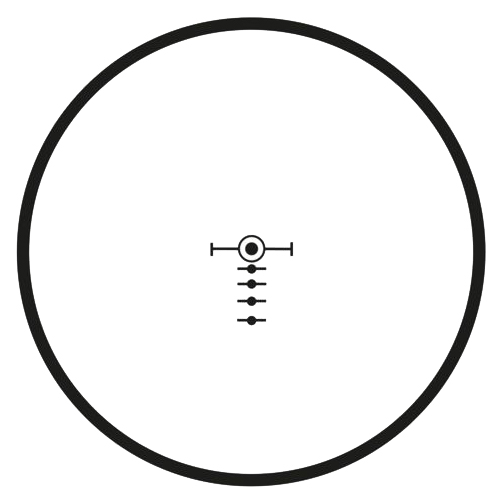

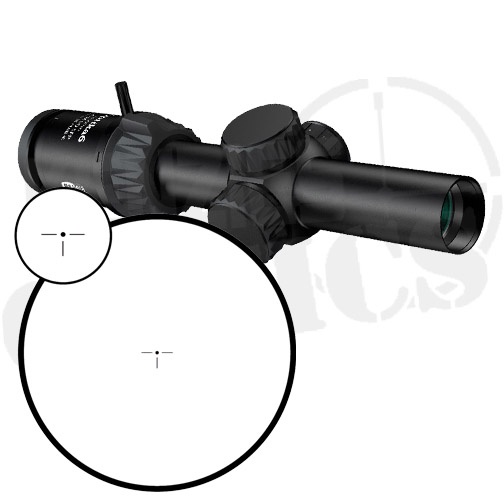

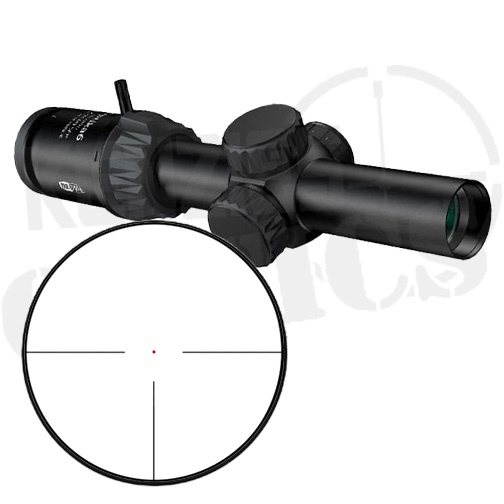

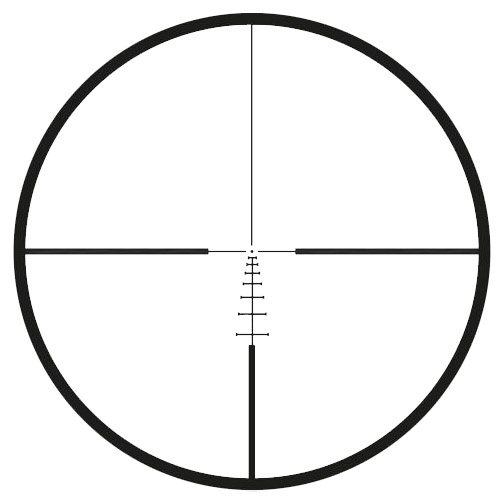

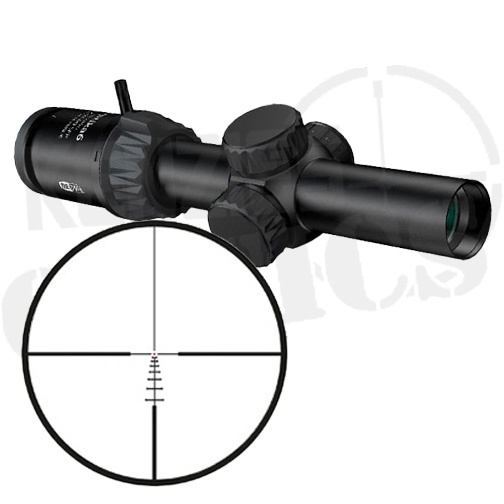

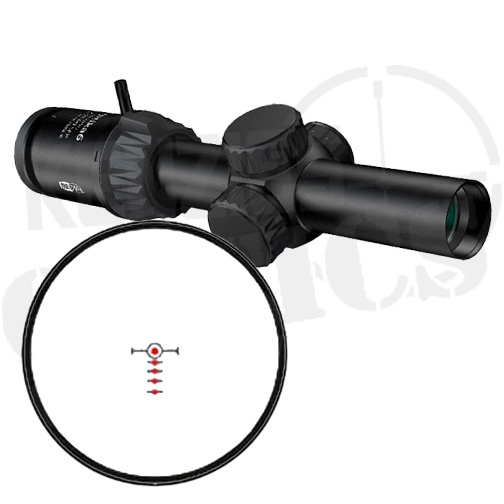

The Meopta Optika6 1-6x24mm Scope is designed for medium range competition and hunting. For fast reflexive shooting you use the 1x magnification and to zero in on more distant targets use the 6x magnification. The Second Focal Plane (SFP) has a capped 0.5 MOA windage and elevation adjustments, and the First Focal Plane (FFP) has exposed, locking adjustments for quick correction. The Optika 6 1-6×24 is available in standard, illuminated, or DichroTech reticles, and in a variety of configurations to meet the needs of the shooter.
Meopta Optika6 1-6x24mm Scope Features
MeoBright – lens coating to eliminate glare and reflections to deliver 91% daylight light transmission
MeoShield – lens coating to eliminate scratching or abrasion

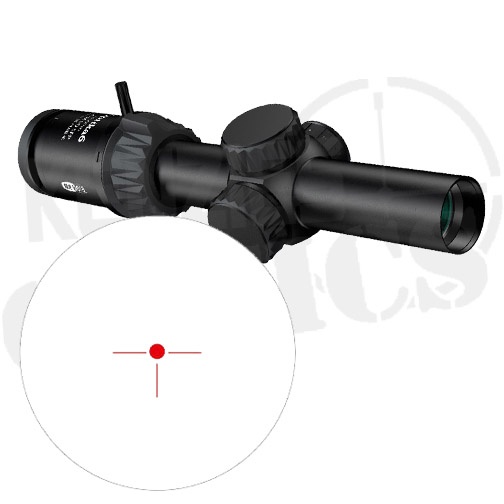

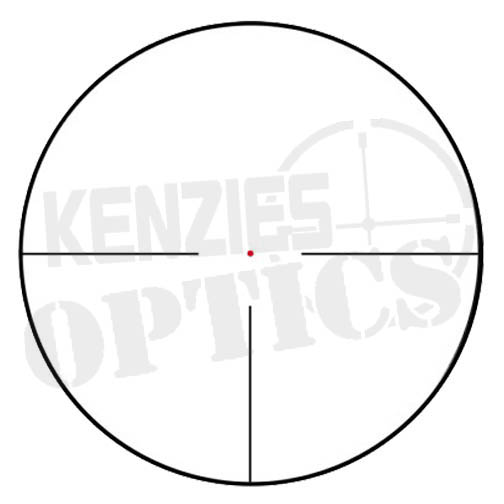

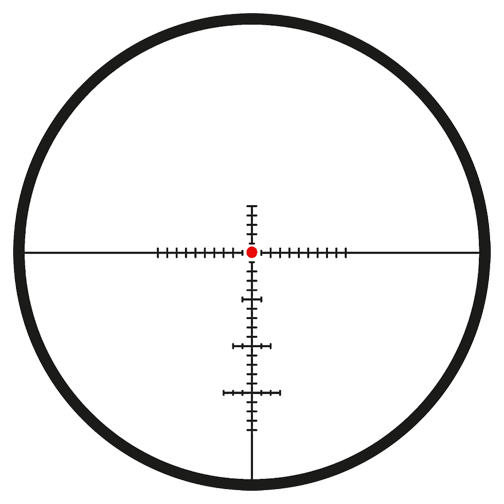

RD Illuminated Reticle System – highly defined illuminated red dot reticle
30 mm Main Tube
Waterproof, Fog proof, and Shockproof
Specifications |
||||||
| Magnification | 1 – 6 x | |||||
| Objective lens | 24 mm | |||||
| Objective Filter Thread | M28.2×0.75 | |||||
| Main Tube Size | 30 mm | |||||
| Exit Pupil Diameter | 10 – 4 mm | |||||
| Eye relief (mm / in) | 100 / 3.94 | |||||
| Field of view (m/100m // ft/100yds) | 36.5-6.3 // 109.5-18.9 | |||||
| Field of View at | 20.7 – 3.6 ° | |||||
| Focal Plane Position | 1 or 2 | |||||
| Dioptric compensation | -2.5 / 3.5 D | |||||
| Daylight Transmission | 91 % | |||||
| Twilight Transmission | 88 % | |||||
| Twilight Factor | 4.9 – 12 | |||||
| Impact per click (cm/100m // in/100yds) | 1.5 // 0.52 | |||||
| Windage and elevation adjustment range (cm/100m // in/100yds) | 349 // 125.7 | |||||
| Paralax Correction | no y/n | |||||
| Length (mm / in) | 256 / 10.07 | |||||
| Weight (g / oz) | 578 / 20.4 | |||||
| Windage and Elevation Adjustment Range (MOA) | 120 | |||||

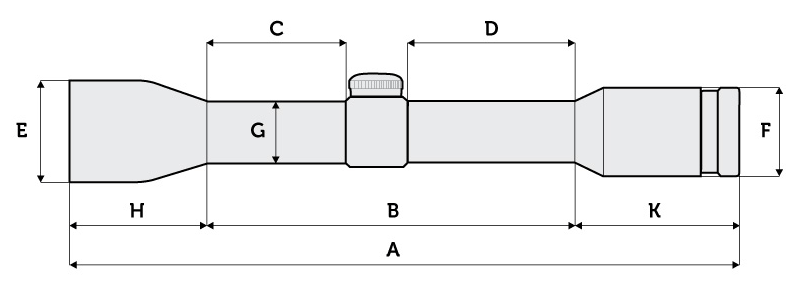

| A (mm / in) | 256 / 10.07 | |||||
| B (mm / in) | 148 / 5.83 | |||||
| C (mm / in) | 63 / 2.49 | |||||
| D (mm / in) | 50 / 1.96 | |||||
| E (mm / in) | 30 / 1.18 | |||||
| F (mm / in) | 47 / 1.83 | |||||
| G (mm / in) | 30 / 1.18 | |||||
| H (mm / in) | 12 / 0.45 | |||||
| K (mm / in) | 96 / 3.79 | |||||
