Description
Meopta Optika6 3-18×56 DichroTech
The Meopta Optika6 3-18×56 DichroTech comes with a Second Focal Plane (SFP) reticle and capped windage and elevation. This MOA reticle uses standard click values of 0.25 MOA. The Optika 3-18×50 is available with the DichroTech Reticle and is created with shooters and hunters in mind.
Meopta Optika 6 Features:
MeoBright – lens coating to eliminate glare and reflections to deliver 91% daylight light transmission
MeoShield – lens coating to eliminate scratching or abrasion
RD Illuminated Reticle System – highly defined illuminated red dot reticle
30 mm Main Tube
Waterproof, Fog proof, and Shockproof
Meopta Optika6 3-18×56 DichroTech Registration CLICK HERE»
Specifications |
||||||
| Magnification | 3 – 18 x | |||||
| Objective lens | 56 mm | |||||
| Objective Filter Thread | M61x0.75 | |||||
| Main Tube Size | 30 mm | |||||
| Exit Pupil Diameter | 9.5 – 3.1 mm | |||||
| Eye relief (mm / in) | 100 // 3.94 | |||||
| Field of view (m/100m // ft/100yds) | 11.1-1.9 // 33.3-5.7 | |||||
| Field of View at | 6.34 – 1.1 ° | |||||
| Focal Plane Position | 1 | |||||
| Dioptric compensation | -2 / 2 D | |||||
| Daylight Transmission | 91 % | |||||
| Twilight Transmission | 88 % | |||||
| Twilight Factor | 13 – 31.7 | |||||
| Impact per click (cm/100m // in/100yds) | 0.7 // 0.26 | |||||
| Windage and elevation adjustment range (cm/100m // in/100yds) | 262 // 94.3 | |||||
| Paralax Correction | 10 yd – infinity y/n | |||||
| Length (mm / in) | 368 / 14.5 | |||||
| Weight (g / oz) | 865 / 30.5 | |||||
| Windage and Elevation Adjustment Range (MOA) | 90 | |||||

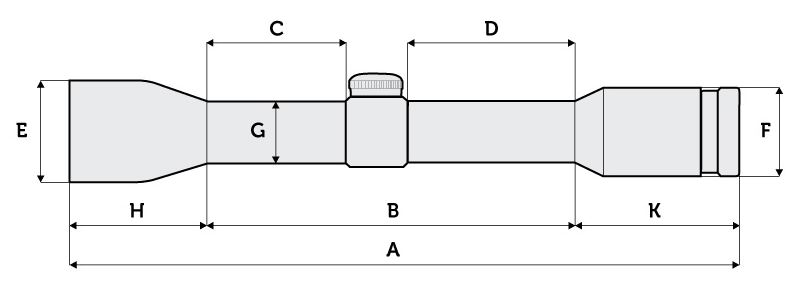

| A (mm / in) | 368 / 14.5 | |||||
| B (mm / in) | 138 / 5.43 | |||||
| C (mm / in) | 45 / 1.77 | |||||
| D (mm / in) | 56 / 2.21 | |||||
| E (mm / in) | 64 / 2.5 | |||||
| F (mm / in) | 44 / 1.71 | |||||
| G (mm / in) | 30 / 1.18 | |||||
| H (mm / in) | 120 / 4.74 | |||||
| K (mm / in) | 110 / 4.34 | |||||
