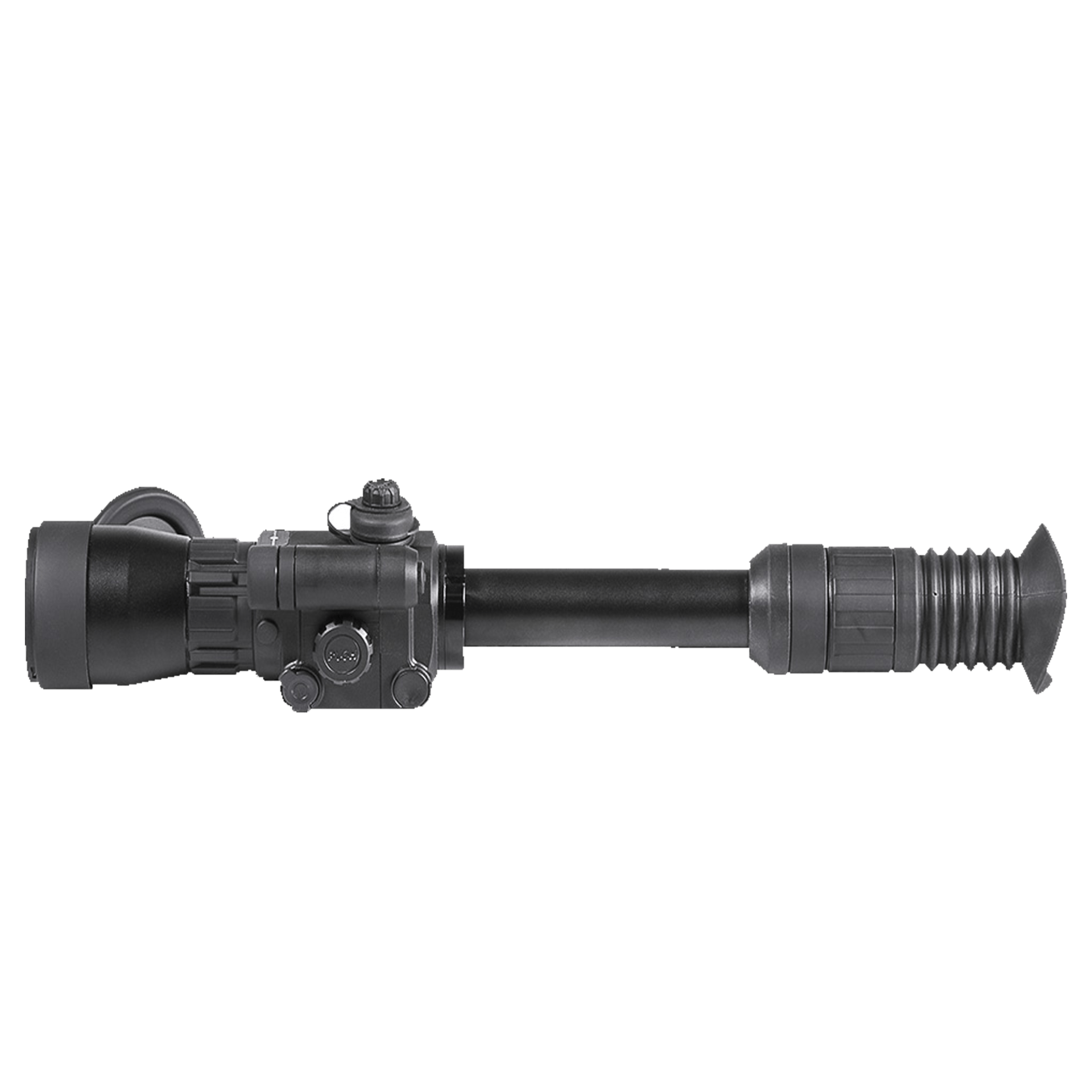

Sightmark Photon XT 4.6х42S
Engineered for precision placement at medium range, the extremely versatile Sightmark® Photon XT™ 4.6×42 delivers a higher magnification, 33% longer battery life and 30% lighter weight than other digital night vision riflescopes on the market. Featuring six red/green/white digital reticle options for a vast range of applications, the scope includes: two crossbow reticles designed for 320, 350, 370 and 400 fps crossbows; two Duplex reticles for hog and varmint hunting; a Mil-Dot reticle for rangefinding and holdovers; and a German-style reticle. Its 4.6x magnification, large 42mm objective lens and higher than average 640×480 resolution offers crisp detailing at up to 120 yards. Shooters have the ability to capture everything seen, day or night, through the video output feature, and attach additional accessories to the scope’s integrated weaver rail. The device also utilizes a digital windage and elevation adjustment system for guaranteed precision and an overall streamlined design.
Specifications | |
| Type of Sensor | CMOS sensor |
| Camera Resolution | 656 x 492 pixels |
| Display Type | LCD |
| Display Resolution | 640 x 480 pixels |
| Video IN / OUT Availability | no / yes |
| Pin Type of Video Input / Output | RCA |
| Magnification | 4.6 |
| Objective Lens Diameter | 42 mm |
| Digital Zoom | NA |
| Lens Focus | 50 mm |
| Relative aperture, D/f’ | 1:1.2 |
| Field of View | 4.3 degree |
| Field of View | 7.5 m @100m |
| Field of View | 22.5 ft @100yd |
| Close Focus Distance | 10 m |
| Eye Relief | 2.36 / 60 mm |
| Diopter Adjustment | +/-3 |
| Resolution | 38 lines per mm |
| Emitter | LED |
| IR Wavelength | 810 nm |
| Equivalent IR Power | 60 / 90 / 120 mW |
| Beam Divergence | ≥ FOV degree |
| Range of Detection | 130 / 120 yd/m (object 1.7m high, illumination level 0.05 lux(1/4moon) |
| Power Supply | 2.0 – 3.3 VDC |
| Battery Type | AA x2 |
| Battery Life (w/out IR) | 5 hours |
| Battery Life (with IR) | 4 hours |
| Windage Adjustment | 25 mm@100m per click |
| Elevation Adjustment | 25 mm@100m per click |
| Windage Range of Adjustment | 60 clicks |
| Elevation Range of Adjustment | 60 clicks |
| Number of Preloaded Reticles | 6 |
| Lens material | glass |
| Body Materal | glass-nylon composite / metal |
| Type of Mount for Attachment of Additional Accessories | Weaver |
| Operating Temp,°F/°C | – 15 to 50 / 5 to 122 F/C |
| waterproof Rating | IPX4 (weatherproof) |
| Shockproof | yes |
| Maximum Recoil | 1000 G’s |
| Tube Diameter | 30 mm |
| Length | 15.7 / 398 in/mm |
| Width | 2.9 / 75 in/mm |
| Height | 3.1 / 80 in/mm |
| Weight | 23.6 oz (with batteries |
Included in Package
Carrying Case
User Manual
Video Cable
Lens Cloth
Batteries Used
AA – 2X
