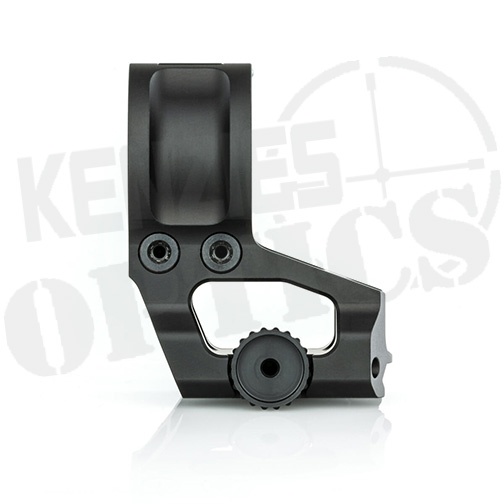

Scalarworks Leap 02 Aimpoint Pro Mount
If you are looking for a state of the art Aimpoint Pro mount, look no further. The Scalarworks Leap 02 is designed for shooters who want the lightest, strongest and most compact quick detach optic mount possible. A highly efficient clamp design guarantees precise operation and unprecedented rigidity. It features an oversize hooded thru-hole to buttress the thumbscrew’s shank, which is the maximum possible diameter to fit a Picatinny channel. A pair of hardened steel precision ground pin is press fitted to the clamp and act as guides.
During its development, the Leap mount was subjected to dozens of stress tests before a single prototype was ever made. Finite Element Analysis (FEA) helped extract every bit of performance from every gram of material. This cutting edge design process has resulted in the most efficient mount design possible. Every Leap mount is CNC milled from 7075-T6 Aluminum billet, which has vastly superior mechanical properties to 6061-T6, and is used where ultimate strength and durability outweigh cost considerations.
Scalarworks Leap 02 Features
Twice as many knuckles and double the material thickness as the original.
Won’t get in your way of viewing or manipulating your optics’ adjustment turrets.
Eliminates the uncertain and tedious setup required by traditional split rings.
Smooth is Fast
The Leap has no protruding levers, bolts, or knobs to rap your knuckles, or get caught on clothing, gear, and surroundings.
The world’s most efficient quick-detach.
A fluted crown requires only the torque from your bare hand to securely clamp the mount onto a rail, and uses the force from a spring-loaded ball-detent to make it completely recoil proof. Return-to-zero is guaranteed as long as the same person takes it on and off.
The Leap mount is the most deliberate evolution of our original design.
Scalarworks Leap Aimpoint Micro T-2 Mount generation 1
From its introduction in 2014, the original Low Drag Mount featured our recoil proof ClickDrive Quick-Detach mechanism, a precision telescoping clamp with world class return-to-zero, and a CNC milled base with the industry’s highest strength-to-weight ratio, all while being as low-profile as a fixed bolt-on mount.
Scalarworks Leap Aimpoint Micro T-2 Mount generation 2
In 2015, the second generation Low Drag Mount became the first Quick-Detach mount ever to be CNC milled from 7075-T6. Its external edges were rounded to minimize stress risers, the thumbscrew was Black Nitrided, and a pair of integral shear lugs was added to the clamp to further improve lateral impact resistance.
Scalarworks Leap Aimpoint Micro T-2 Mount generation 3
Today, the Leap mount features an even stronger base with a forward lean to provide more room for magnifiers, and chamfered side pockets for improved thumbscrew access. The re-designed clamp has discreet hardened steel pins and a stopper to indicate when it’s sufficiently open to clear a Picatinny rail.
|Materials||7075-T6 Aluminum / 4140H Steel|
|Finishes||Type III Anodizing / Flash Nitride|
|Center height over rail||1.57″|
|Origin||United States of America|
|Aimpoint reflex sights||CompM2, CompM3, PRO, ACO|
|Mount||Scalarworks® Leap™ (SW0210)|
|Fasteners||#10-32 shoulder screws Nylok® treated|
|Tools||T25 Torx driver bit|
