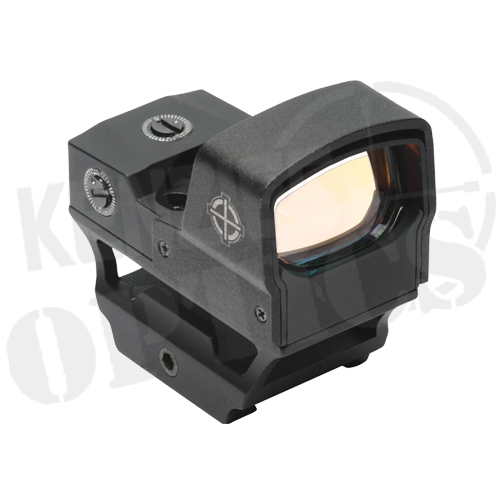

Sightmark Core Shot A-Spec FMS Reflex Sight


In stock

SKU: SM26017 Categories: , , Tags: ,

Sightmark Core Shot A-Spec FMS Reflex Sight

The Sightmark Core Shot A-Spec FMS Reflex Sight was designed for precision accuracy. It brings reliability to high stakes competition shooting and hunts of a lifetime. Designed to deliver better optic performance, the shooters A-Spec FMS Reflex Sight improves accuracy for recreational, professional and competitive environments. The Core Shot bridges the gap between the Mini Shot and Ultra Shot for avid shooters wanting a compact sight. Made out of aircraft-grade aluminum for a dependable compact lightweight housing and includes external battery compartment for easier access to the battery. The Core Shot Includes a riser mount to work effectively on ARs.

Sightmark Core Shot A-Spec FMS Relfex Sight Features

Compact, lightweight aluminum alloy housing

Protective aluminum shield

Fixed picatinny mount

Wide lens provides quick target acquisition

Slotted windage and elevation adjustments

Red reticle illumination

Digital switch controls

8 reticle brightness levels

Night vision compatable

1 hour auto shutoff

Low battery indication

Scratch resistant lens coating

Product Manual



Reticle, Type 5 MOA Dot
Reticle, Color Red
Reticle Brightness Setting Off, 0 – 8 NV 1 – 2
Magnification 1
Objective Lens 28 x 18 mm
Eye Relief Unlimited
Elevation Adjustment 100 MOA
Windage Range of Adjustment 100 MOA
Parallax Setting 10 yds
Finish/Color Matte black
Body Material Aluminum 6061-T6
Maximum Recoil .50 BMG G’s
IP Standard IP55 – water resistant
Nitrogen Filled No
Shockproof Yes, 4ft, 1.2m
Fog Proof No
Lens Coating AR Red
Mount Type Picatinny
Battery Type CR2032
Battery life, hours 20 – 1,400 hrs
Battery Voltage, V 3
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 2.3 / 59 in / mm
Width (in/mm) 1.2 / 30 in / mm
Height (in/mm) 2.2 / 56 in / mm
Weight 4.4 oz
