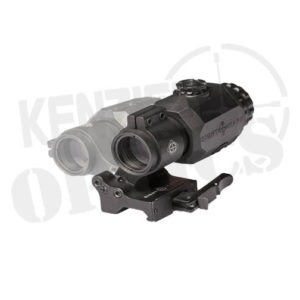

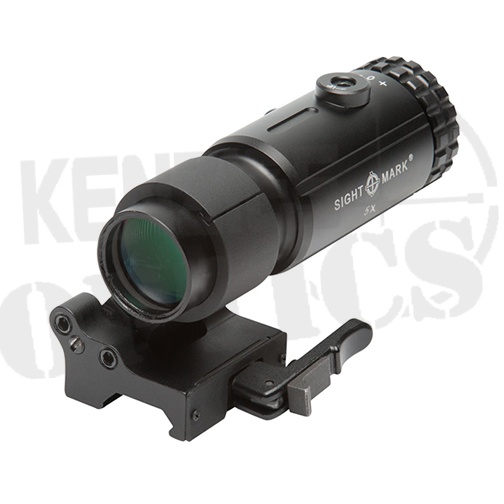

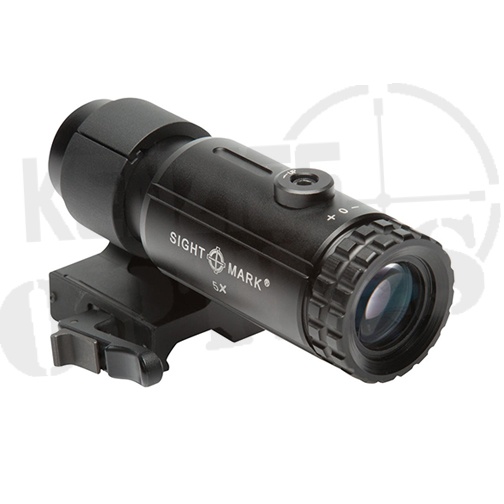

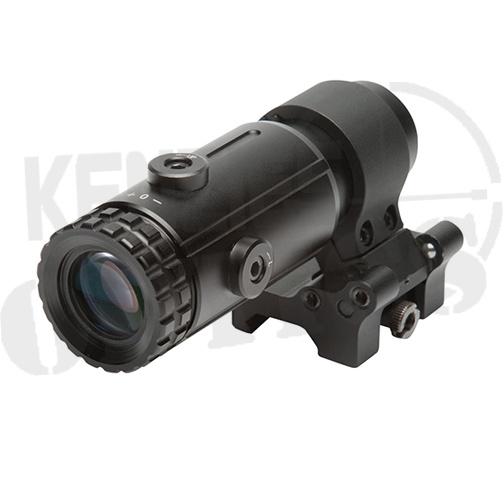

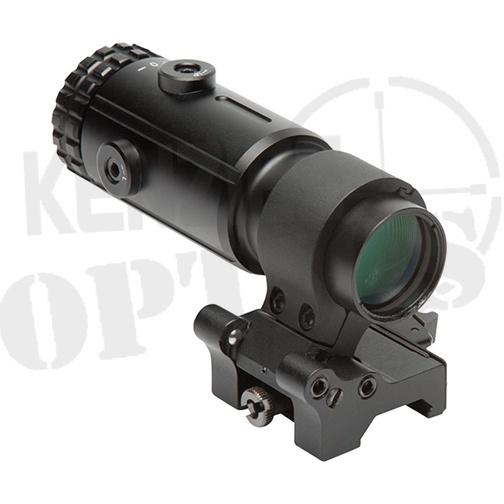

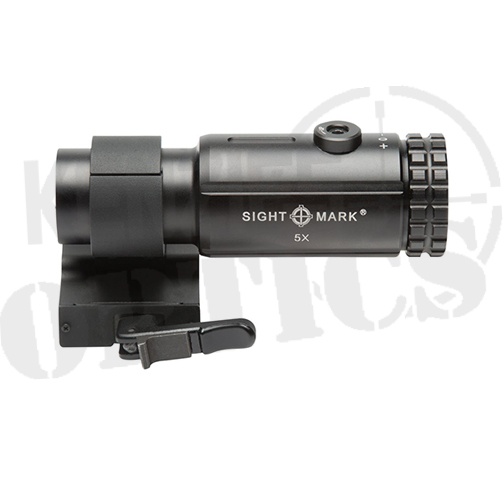

Sightmark T-5 Magnifier w/ LQD Flip to Side Mount


In stock

SKU: SM19064 Categories: , , Tag:

Sightmark T-5 Magnifier w/ LQD Flip to Side Mount

The Sightmark T-5 Magnifier was built with versatility in mind. The magnifier will give you 5x magnification that increases engagement to 200 yards. Instantly change the magnification of your close range optic from 1x to 5x by using the T-5’s flip to side mount. The magnifier’s streamlined, low drag design prevents it from snagging on clothing and equipment and makes the T-5 .7” shorter than the magnifier it’s replacing.

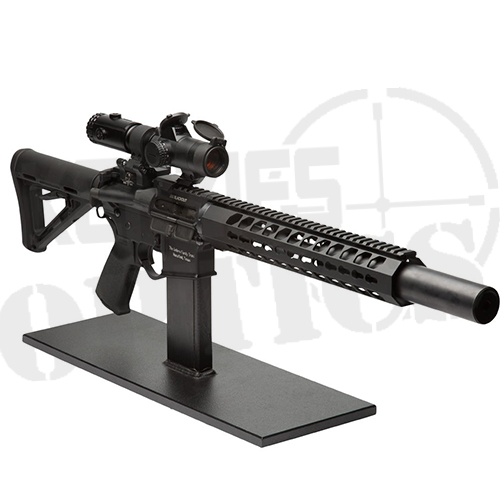

Ideal for stretching your AR engagements out to 200 yards, an included LQD mount allows for rapid attaching/detaching in intense shooting situations. The T-5’s aluminum construction is shockproof up to .308 caliber rifles and provides IP55 water resistant protection. Brightness and resolution are improved from fully multi-coated optics and external windage and elevation adjustments help shooters align the reticle of their red dot/reflex sight to the center of the magnifier’s point of view. The Sightmark T-5 includes flip-to-side LQD mount, adjustment tools and manual.

Sightmark T-5 Magnifier Features

Locking, quick detach mount for quick and easy removal

External windage/elevation adjustment for reticle alignment

Absolute co-witness

Fully multi-coated, scratch resistant

5x magnification increases engagement to 200 yards

EOTech and Aimpoint compatible

Product Manual


Magnification 5x
Objective Lens Diameter 23
Eye Relief (in/mm) 2.25 in. (57mm)
Field of View (ft. @ 100 yd) 29.6
Tube Diameter (in/mm) 1.18 in. (30mm)
Maximum Caliber .308
IP Rating IP55 – Water Resistant
Length (in/mm) 4.72 in. (120mm)
Width (in/mm) 2.6 in. (66.2mm)
Height (in/mm) 1.67 in. (42.5mm)
Weight with Mount (oz) 10.9
