Description

Trijicon ACOG 3.5×35 BAC Scope / RMR Type 2 Combo

The Trijicon ACOG 3.5×35 BAC Scope / RMR Type 2 Combo gives the user the best of both worlds. The user has the option of quick acquisition close range sighting with the RMR Type 2 and precision for long range use with the ACOG 3.5×35.  It features a “Both Eyes Open” design using Trijicon’s Bindon Aiming Concept feature that allows for improved situational awareness. The shock resistant and waterproof combo has a rugged and reliable housing design, making it practically indestructible.

Trijicon ACOG 3.5×35 BAC Scope / RMR Type 2 Combo Features

Always On, Always Ready

Most ACOG models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Take Control

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5×35 LED and 4×32 LED models both offer six adjustable brightness settings.

Rugged, Reliable Housing Design

Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.

“Both Eyes Open” Design

“Both eyes open” shooting using Trijicon’s Bindon Aiming Concept (BAC) feature allows for improved situational awareness.

Outstanding Clarity

The quality of the glass and multi coated lenses maximize light gathering capabilities and clear field of view with zero distortion.

Exact Target Distances & Holds

Most ACOG models feature a bullet drop compensating and target ranging reticle for decisive aiming.

Combat Proven

No other magnified optic has been used more in combat than the ACOG.

Shock Resistant

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

Waterproof

Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.

Spec Sheet

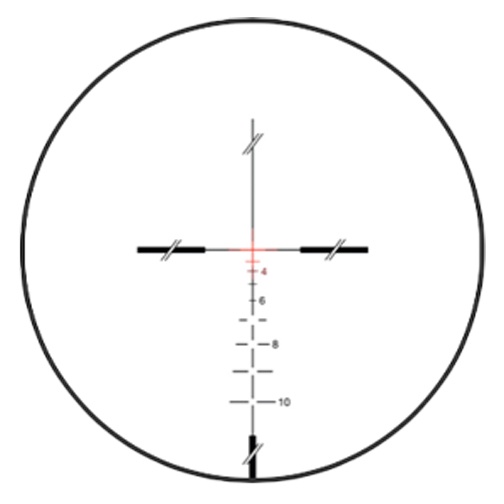

Reticle Dimensions


Specifications

Length x Width x Height 8 in x 2.1 in x 2.9 in

(203.2 mm x 53.34 mm x 73.66 mm)

Weight 14 oz.

(396.89 g)

Magnification 3.5x
Objective Size 35 mm
Reticle Pattern Chevron

Crosshair

Day Reticle Color Green

Red

Night Reticle Color Green

Red

Bullet Drop Compensating (BDC) Yes
Caliber 0.223
Bindon Aiming Concept (BAC) Yes
Illumination Source Fiber Optics & Tritium
Power Source Fiber Optics & Tritium
Adjustment 3 clicks per in. @ 100 yds
Eye Relief 2.4 in.

(60.96 mm)

Exit Pupil 0.39 in.

(9.91 mm)

Field of View (degrees) 5.5°
Field of View (feet) 28.9 ft. @ 100 yds.

(9.63 m @ 100 m)

Mount Flattop Thumbscrew Mount (TA51)
Housing Material Forged Aluminum
Finish Matte Black











More from Trijicon

Additional information

Weight N/A
Reticle Options

, ,

Reticle Color

Green, Red
