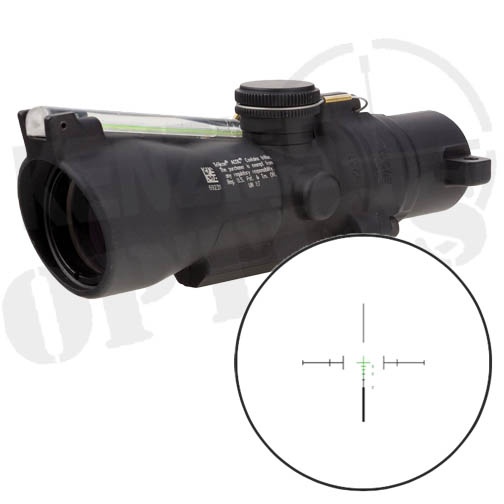

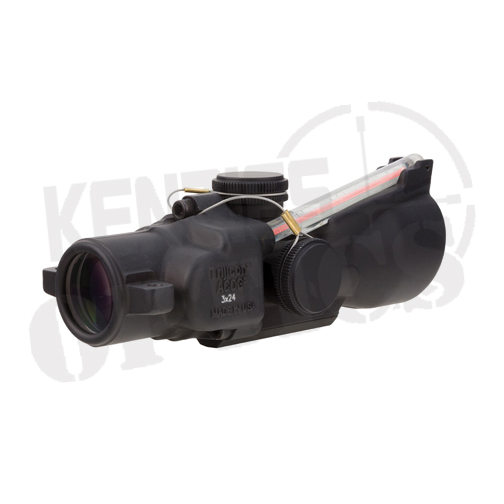

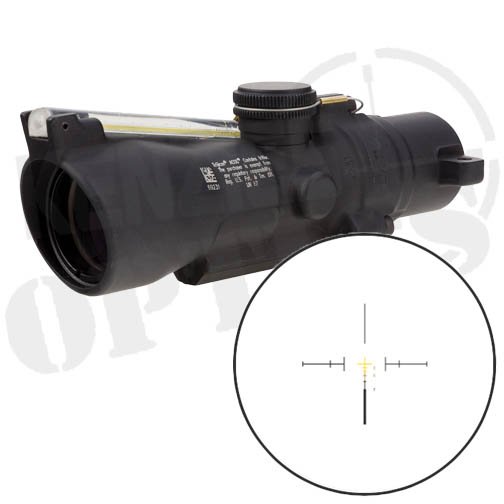

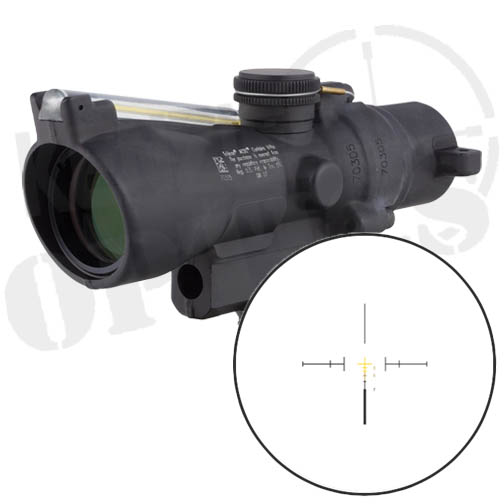

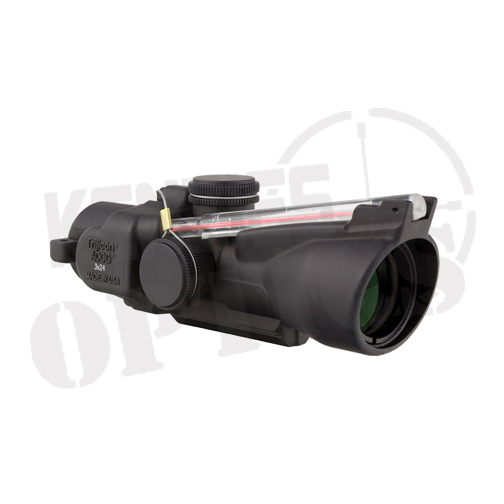

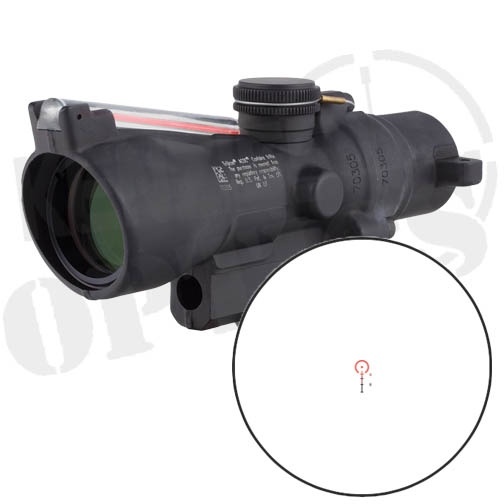

Trijicon ACOG TA50 3×24 Scope
The Trijicon ACOG TA50 3×24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination gives two sources of battery free illumination fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium phosphor lamp glows in low light conditions.
The ACOG body is made to be extremely rugged and reliable. The forged 7075-T6 aircraft grade aluminum alloy housing brings a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG. Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.
Trijicon ACOG TA50 Features
Tritium/fiber optic illuminated reticle
Choice of low or high profile
Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both eyes open” shooting using The Bindon Aiming Concept (BAC) allows for improved situational awareness.
The quality of the glass and multi coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
No other magnified optic has been used more in combat than the ACOG.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.
|Dimensions High or Low||5 in x 1.8 in x 2.1 in or 5 in x 1.8 in x 1.7 in|
|Weight||6.1 oz High or 5.8 oz Low|
|Objective Size||24 mm|

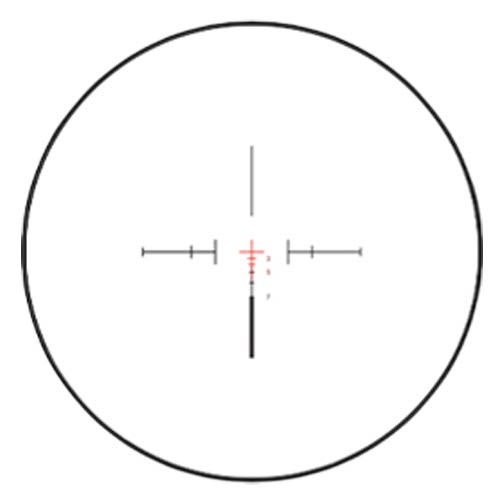

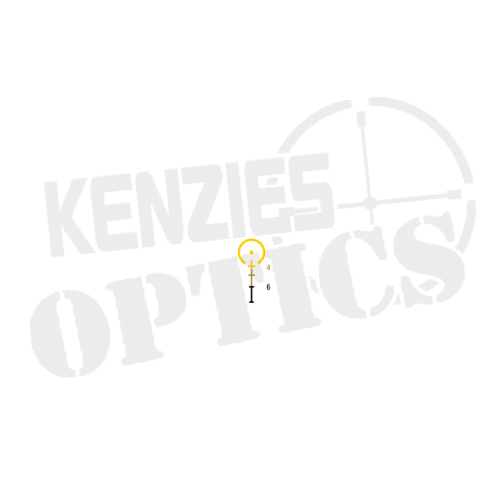

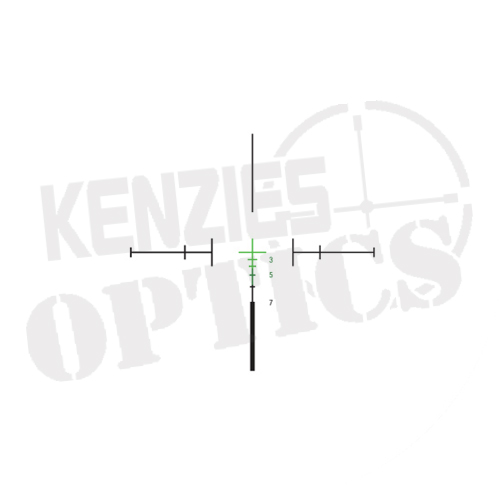

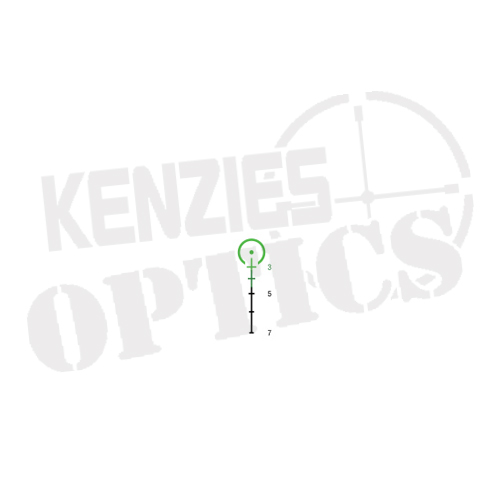

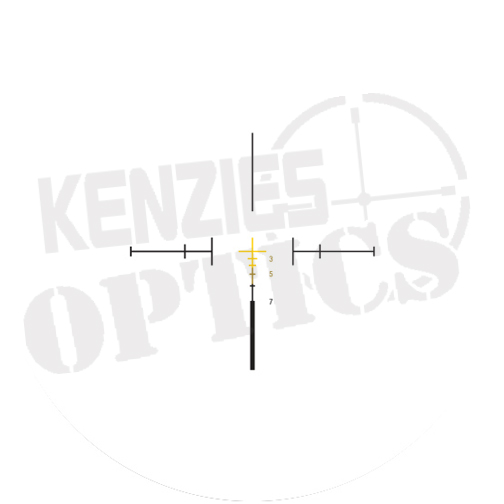

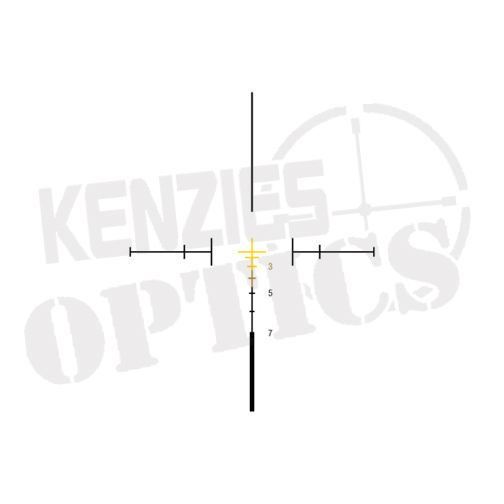

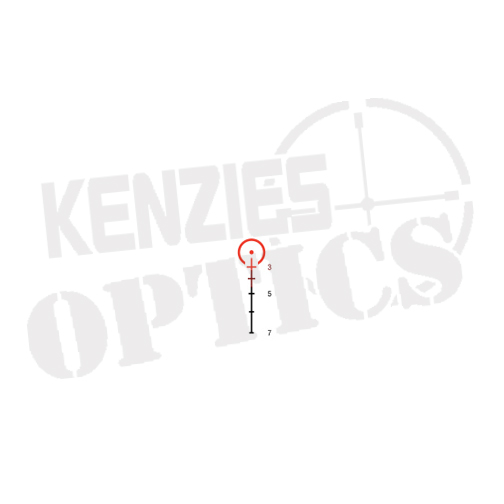

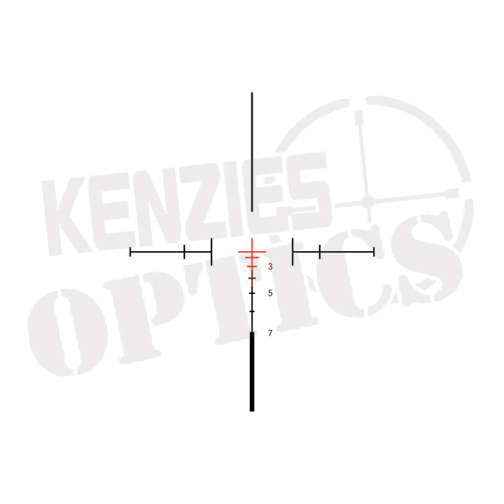

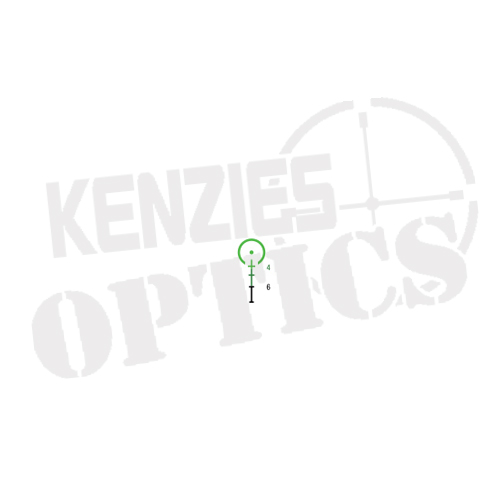

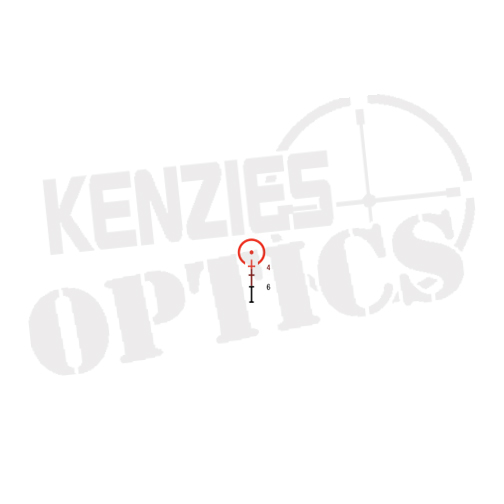

|Reticle Pattern||Crosshair or Horseshoe Dot|
|Day Reticle Color||Red, Amber or Green|
|Night Reticle Color||Red, Amber or Green|
|Bullet Drop Compensating (BDC)||Yes|
|Caliber||0.223 or 7.62 x 39 mm|
|Bindon Aiming Concept (BAC)||Yes|
|Illumination Source||Fiber Optics & Tritium|
|Power Source||Fiber Optics & Tritium|
|Adjustment||2 clicks per in. @100 yards|
|Eye Relief||1.4 in|
|Exit Pupil||0.315 in|
|Field of View (degrees)||4.9°|
|Field of View||25.6 ft. @ 100 yds|
|Mount||High: M16 or AR15 Carry Handle Base
Low: Not Included
|Housing Material||Forged Aluminum|
