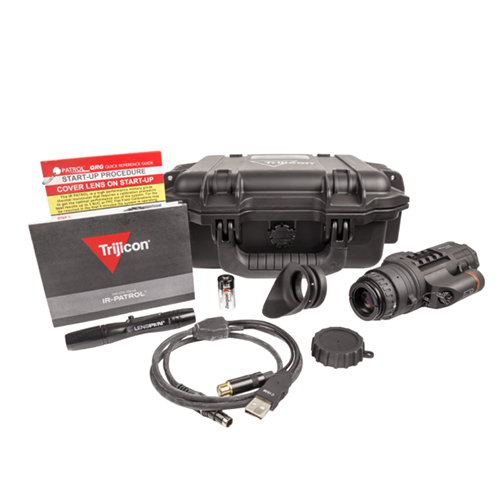

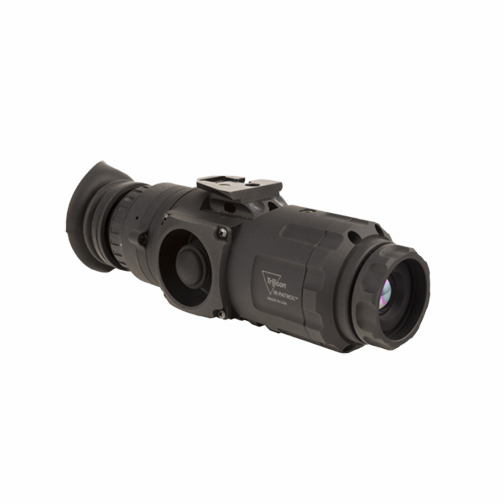

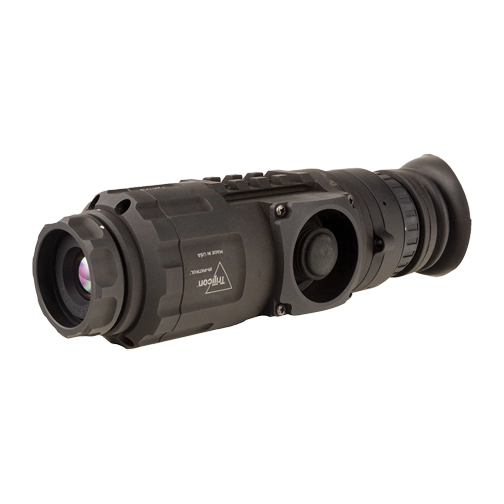

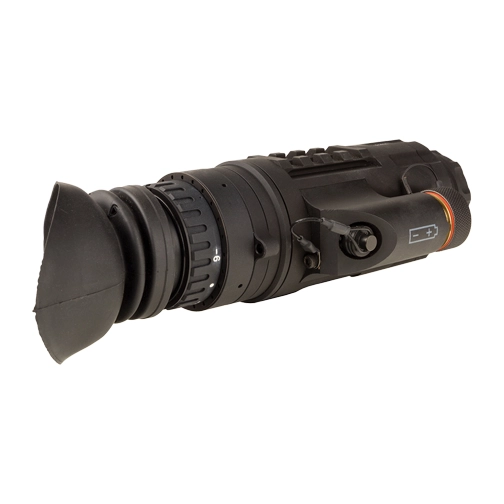

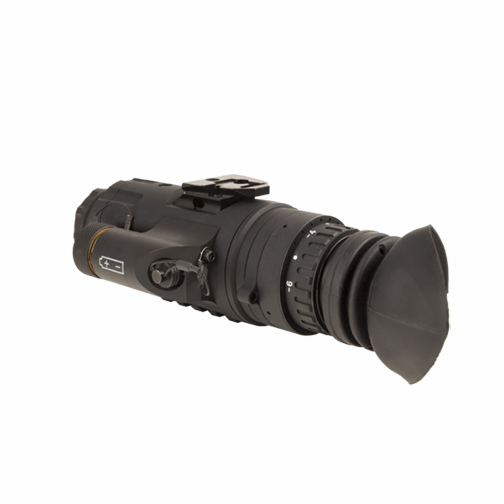

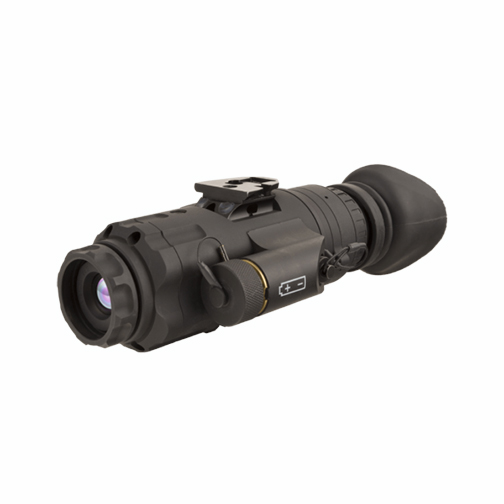

Trijicon IR Patrol LE100C – 19mm Thermal Handheld / Tripod Mounted (30Hz)

Original price was: $6,365.00.Current price is: $4,774.00.

Backorder this item now

Want to be notified when this product is back in stock?

SKU: IRMO-100C Categories: , , Tags: , , , ,

Trijicon IR Patrol LE100C

The Trijicon IR PATROL LE100C has advanced ability to process images with brilliantly sharp detail, and a user friendly, icon based menu system for intuitive navigation. Whether your mission is searching for a suspect or securing your position, the Trijicon IR-PATROL® is the ideal multipurpose thermal imaging monocular. It’s compact, lightweight, rugged and offers some of the most advanced performance options on the market. Choose to either helmet mount or operate as a handheld unit.

Trijicon IR Patrol LE100C Features

Superior Processing Power

Comes with a digital OLED display, 640 x 480 pixel resolution and 12 micron sensor pitch.

Thumbstick System Controller

Trijicon’s rugged, weatherproof, multi directional thumbstick control comes standard. Unlike most conventional buttons, the IR-PATROL controls are large and easy to find in complete darkness.

Afocal Magnifier Lens Multipliers

Trijicon’s optional 2x and 3x Afocal Magnifiers provide an easy, cost effective way to get long range magnification. By using an Afocal Magnifier, your system will double or triple its lens magnification, depending upon the magnifier you purchase.

Maxpol Polarity White Hot & Black Hot

The IR-PATROL comes with an easy to control polarity mode that lets you switch between three levels of white hot and three levels of black hot. Why limit yourself to one setting? With low, medium and high levels, you can pick your perfect mode.


Application Handheld Tripod Mounted
Sensor Resolution 640 x 480
Sensor Micron 12μm
Sensor Type Vox Vanadium Oxide
Frame Rate 30Hz
Display Type Digital OLED
Thermal Sensitivity < 50mK
Spectral Response 8 to 12 MICRONS
FOV 22°
Eye Relief 27 mm
Diopter -6/+2
Magnification E-Zoom 1x Optical/8x Digital
Objective Lens 19mm/f/1.2
Battery Type CR123 Lithium
Battery Life Approx. 2 hours/battery
Environmental -40°C to +55°C Operating/ -45°C to +75°C Storage
Weight 16oz/454 g
Dimensions 5.95 x 2 x 2.95 in
User Interface Thumbstick
Mounting Kit ¼-20 Interface
Download Cable Yes
Shoe Interface No
Polarity E-Zoom Yes
Edge Detect No
Image Capture Yes
Video Out No
Reticle Feature No
Configuration Level No

Trijicon Products are subject to export controls administered by the U.S. Department of Commerce or the U.S. Department of State and require an export license to be shipped outside of the United States. Export or re-export without prior authorization from the U.S. Government is prohibited. For this reason, we only sell directly to established distributors, who have provided the necessary information and documentation required for proper authorization to export.

For additional information, please contact the Trijicon Export Compliance Team by calling 1-248-960-7700.
