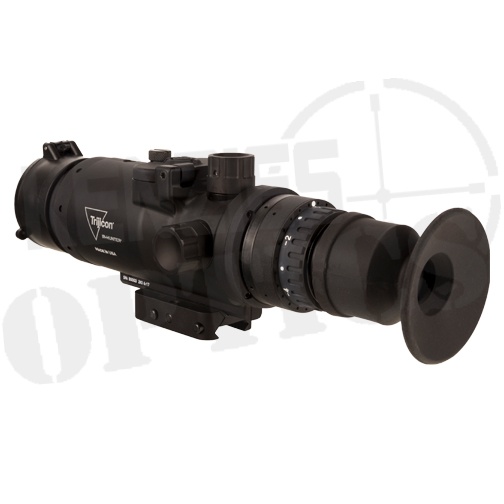

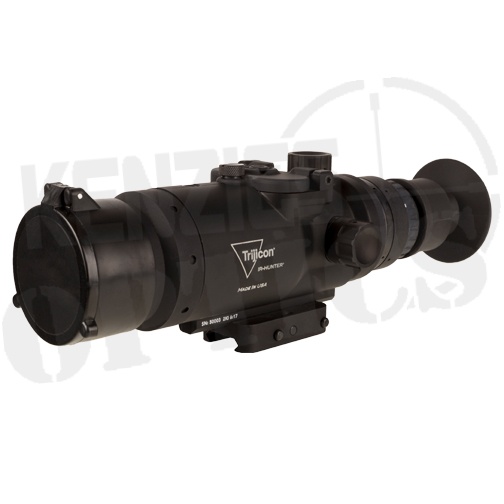

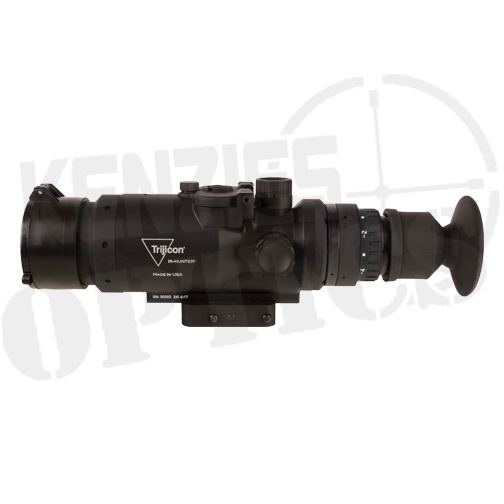

Trijicon IR-Hunter 35mm Thermal Scope
The Trijicon IR-Hunter 35mm Thermal Scope was designed to be rugged, powerful and easy to use. It features a state of the art 640×480 resolution, that is 4 times as many pixels as competing 320 system, 12 micron pixel pitch, that has a smaller footprint than competing 17 micron systems, and 60 Hz frame rate that improved clarity for moving images. Redesigned electronic hardware and a new digital turret controls improve system response and enable the use of external USB power sources and digital video recorders. The IR-Hunter is engineered to last and built in the USA.
Trijicon IR-Hunter 35mm Thermal Scope Features
Specifications |
||||||
| Alaska to Africa Temperature Tested | To ensure each family of scopes is ready for whatever the users put them through, Trijicon perform “Alaska to Africa” temperature shock tests with temps from -20°F to 140°F | |||||
| Solid Zero Tested | Their scopes are designed to hold their zero giving you the precision you need. Every model is subjected to 5,000 consecutive rounds, confirming no reticle shift has occurred. | |||||
| Drop Tested | Trijicon doesn’t believe every drop should be followed by a warranty claim. Each scope design is put through a drop to check for durability. | |||||
| Shock & Vibration Tested | All scope models are tested to withstand recoil and vibrational stresses without malfunction, so it can take a beating before, during, and after use. | |||||
| Immersion Tested | All models are immersion tested, and every scope is dry nitrogen filled to eliminate internal fogging. | |||||
Specifications |
||||||
| A) Faster System Control
New and improved rotary knobs provides improved system response and reduced lag |
B) Expanded Functionality
New USB-C connector allows the use of external battery packs, and download of analog and digital video with available adapter with compatible DVRs |
|||||
| C) Premium Lens Quality
New manual focus adjustment (60mm only) for improved image quality at all distances |
D) Improved Battery Compartment Design
Redesigned internal battery compartment for a slimmer look and increased durability |
|||||
| E) Mounting Versatility
New quick release mounts featuring Trijicon Q-LOC Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark |
F) Improved Reticle Choices
User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, 5.56 BDC, 7.62 BDC, and 300BLK BDC |
|||||
Specifications |
||||||
| Sensor Resolution | 640×480 | |||||
| Sensor Micron | 12mm | |||||
| Sensor Type | Vox | |||||
| Frame Rate | 30Hz / 60Hz | |||||
| Display Type | OLED | |||||
| Thermal Sensitivity | < 50 mK | |||||
| Spectral Response | 8-12mm | |||||
| Field of View | 12° | |||||
| Eye Relief | 27mm | |||||
| Diopter | -6/+2 | |||||
| Optical Magnification | 1.75x | |||||
| Digital Zoom | 1-8x | |||||
| Combined Magnification | 1.75-14x | |||||
| Objective Lens | 35mm f/1.2 | |||||
| Battery Pack | (2) CR123 | |||||
| Battery Life | Approx. 4 hrs. | |||||
| Environmental | -25.6°F (-32°C) to 122°F (50°C) Operating
-59.8°F (-51°C) to 160°F (71°C) Storage |
|||||
| Submersion | 1m/1hr | |||||
| Weight | 29.1 oz.
(825g) |
|||||
| Dimensions (LxWxH) | 9.8 in. x 3.0 in. x 3.2 in.
(250.8mm x 76.2mm x 81.8mm) |
|||||
| User Interface | Dial Encoders | |||||
| Mounting Kit | Mini Picatinny Rail Mount | |||||
| Easy Zero | Yes | |||||
| Image Capture | Yes | |||||
