Description

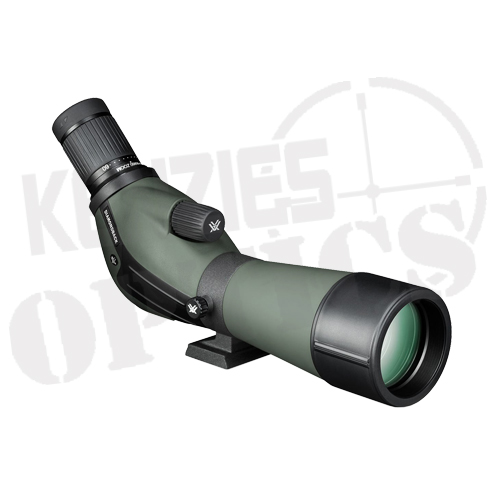

Vortex Diamondback 20-60×60 Spotting Scope

The Diamondback spotter gives outstanding performance clearly a superb choice when you need a heavyduty performer in a lightweight, compact package. The Diamondback line gives you a bright, crisp image throughout the magnification range and its rugged build stands up to rough use in the field.

Diamondbac Spotting Scope Features

XR Fully Multi-Coated

Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air to glass surfaces.

Dielectric Coating

Multi layer prism coatings provide bright, clear, color-accurate images.

Porro Prism

Valued for a rich depth of field, wide field of view, and three-dimensional image.

Straight Body Design

Valued for speedy target acquisition and ease of use. Most compatible design for use with car window mounts.

Angled Body Design

Valued for allowing an overall lower mounting height which maximizes stability in wind, offers greater comfort when glassing for extended periods, and permits the use of a smaller, lighter tripod.

Waterproof

O-ring seals keeps moisture, dust and debris from getting in for a reliable performance in all environments.

Fogproof

Nitrogen gas purging stops internal fogging over a wide range of temperatures.

Adjustable Eyecups

Twist up and down for comfortable viewing with or without eyeglasses.

Built-in Sunshade

Lowers glare and protects the objective lens from raindrops and snow.

Rotating Tripod Ring

Lets rotation of the eyepiece to a sideways position, giving you adjustable viewing angles.


Specifications

Magnification 20 to 60 x
Objective Lens Diameter 60 mm
Linear Field of View @ 1000 yds 114 to 51 ft
Angular Field of View 2.2 to 1 degrees
Close Focus 20 ft
Eye Relief 17 to 14 mm
Exit Pupil 3 to 1 mm
Length Angled 14.4 in
Length Straight 14 in
Weight 33.8 oz




Related Items

Additional information

Weight N/A
Model Options

Angled, Straight
