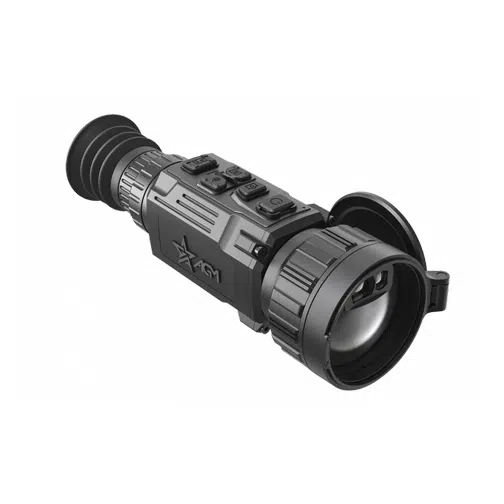

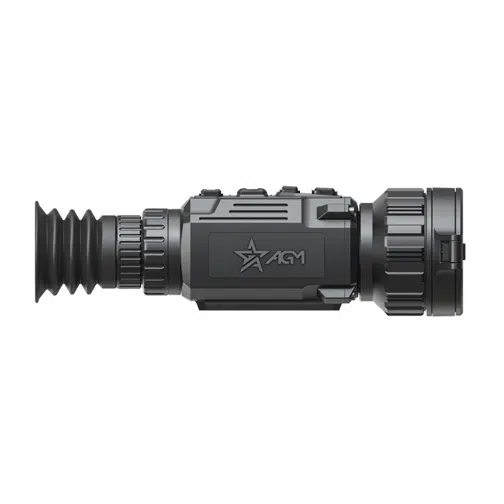

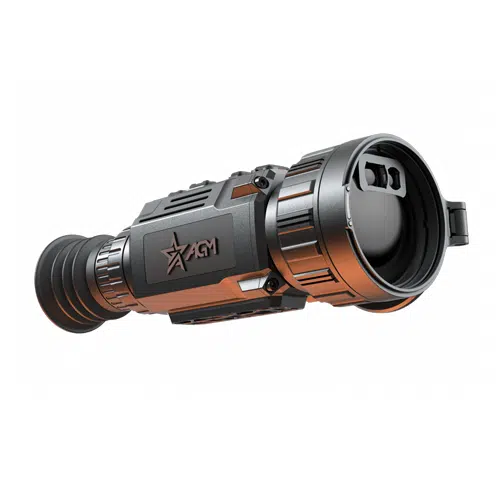

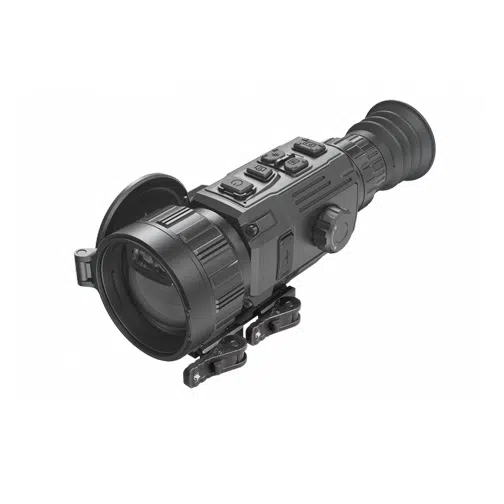

AGM Rattler V3 LRF 50-640 Thermal Imaging Riflescope
The AGM Rattler V3 LRF 50-640 Thermal Scope is a powerhouse optic built for serious hunters and tactical shooters. It features a 640×512 resolution 12-micron thermal sensor, built-in laser rangefinder, and up to 2,500 yards of detection. Engineered for clarity, range, and fast target acquisition, the RattlerV3 delivers premium performance day or night in the harshest conditions..
The Rattler V3 LRF 50-640 brings the once inconceivable new in-lens LRF technology to the compact Rattler series as well. Not only that, but the Rattler V3 LRF 50-640 also pairs a new 1920 high resolution display with an industry-leading sub-15mK thermal sensor, which combines to produce the best 640 resolution thermal image that AGM has ever produced.
These technical parameters work together to produce a detection range 2.2 MILES. It’s also the first Rattler ever to come with a shutterless NUC and an adjustable display which users can change from rectangular to semi-circular. It also works to raise the base magnification of the Rattler V2 50-640 from 2.5X to 3.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Flip on the new image boost 2.0 within the menu and users will be happy to concede that the AGM brand, which started five years ago as a new and exciting entry-level competitor, has quickly evolved into one of the most advanced thermal image producers on the planet.
AGM Rattler V3 Features
Superior sub-15 milikelvin thermal sensitivity
640×512 resolution with 12-micron sensor
Built-in 1,000m laser rangefinder in the lens
Integrated ballistic calculator
Large OLED display with 1920×1080 resolution
Shutterless technology
Various reticle types and colors
3.5x to 28x magnification
On-board video/audio recording and image capture
Built-in EMMC storage (64 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Standby mode
Over 5.5 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
Specifications |
||||||
| Ballistic Calculator | Yes | |||||
| Safety Class for Laser | Class1 | |||||
| Shot-Activated Recording | Yes | |||||
| Max. Recoil | 1000g/0.4ms | |||||
| Dimensions | 232 × 83 × 70 mm ( 9.1 × 3.3 × 2.8 in ) | |||||
| Wavelength | 905 nm | |||||
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome | |||||
| Exit Pupil Diameter | 6 mm | |||||
| Reticle | 10 | |||||
| Distance Measurement | Built-in Laser Rangefinder | |||||
| Picture In Picture Mode (PIP) | Yes | |||||
| Defective Pixels Correction (DPC) | Yes | |||||
| Audio Recording | Yes | |||||
| Magnification | 3.5× – 28× | |||||
| Detector type | 12μm Uncooled Focal Plane Arrays | |||||
| FFC (Flat Field Correction) | Semi-Auto, Manual | |||||
| Standby Mode | Yes | |||||
| Refresh rate | 50 fps | |||||
| Aperture | F 1.0 | |||||
| Resolution | 640×512 | |||||
| Measuring Distance of Laser Rangefinder | 10 m to 1000 m | |||||
| Detection Range (6′ object) | 2,600 m | |||||
| NETD | ≤15 mK | |||||
| Field of view (H × X) | 8.7° × 5.3° (15.2 m × 9.19 m@100 m) | |||||
| Digital zoom | 1×, 2×, 4×, 8× | |||||
| Diopter adjustment range | -4 D to 3 D | |||||
| Focusing range | 15 m minimum | |||||
| Hot Track | Yes | |||||
| Eye relief | 45 mm | |||||
| Display | 1920×1080, 0.49 inch, OLED | |||||
| Storage | Built-in EMMC (64 GB) | |||||
| Record Video | Yes | |||||
| Capture Snapshot | Yes | |||||
| Battery Type | Replacable and Rechargeable Li-ion Battery | |||||
| Wi-Fi | Yes | |||||
| Battery Operating Time | ≥5.5 h (25°C, with hotspot off) | |||||
| Power supply | 5V DC/2A Supports external power supply | |||||
| Operating Temperature Range | -30°C to 55°C (-22°F to 131°F) | |||||
| Weight | 585 g (1.3 lb) | |||||
| Protection Level | IP67 | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
