Description

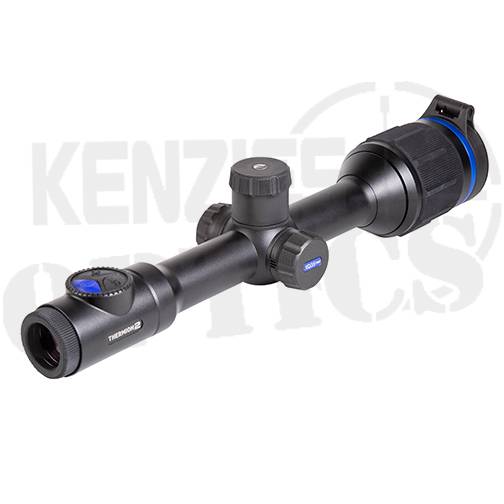

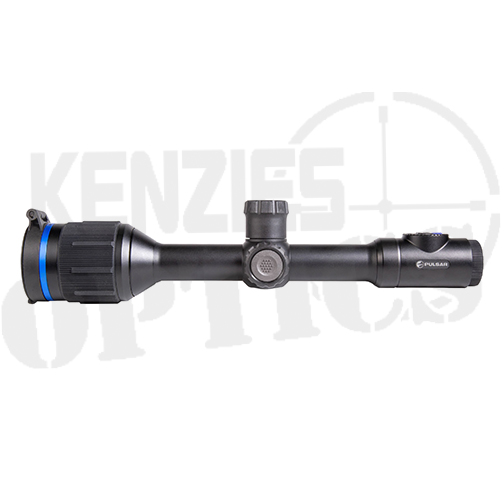

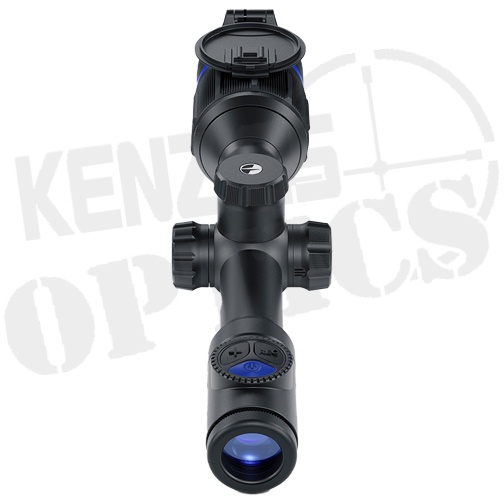

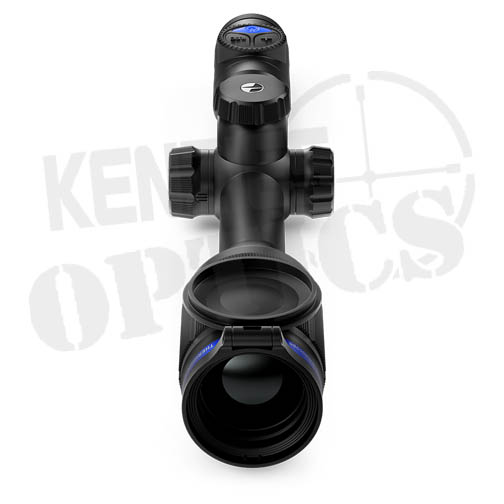

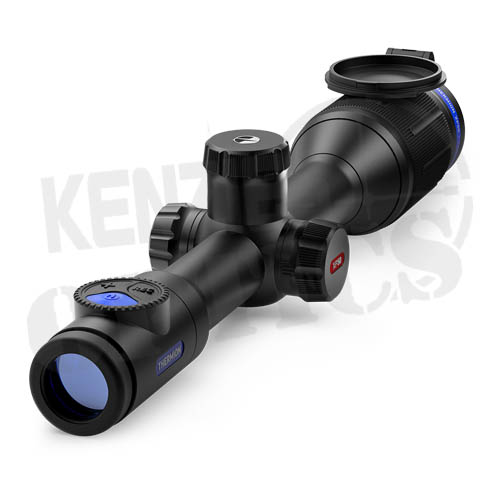

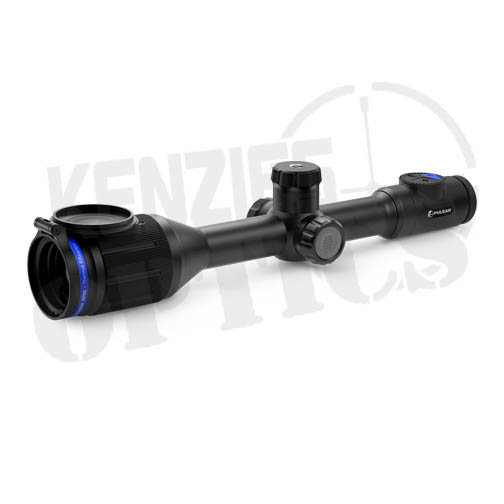

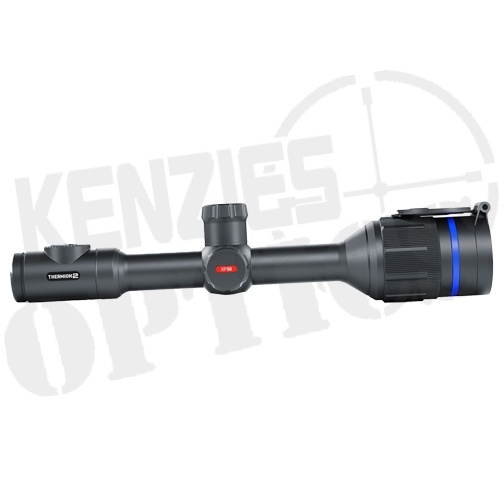

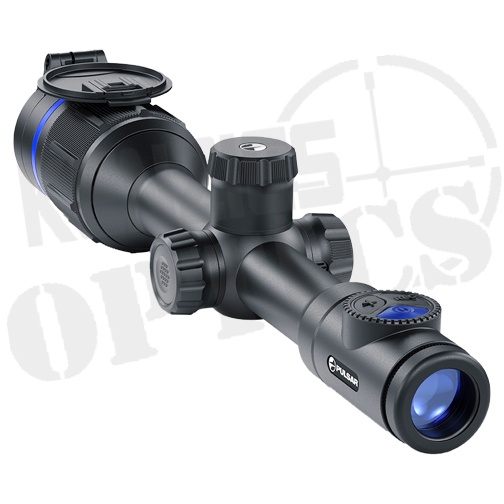

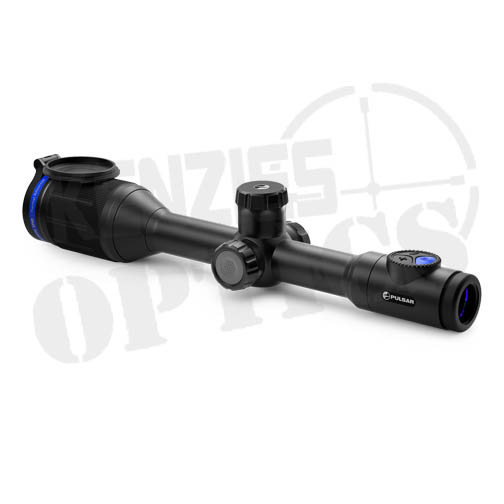

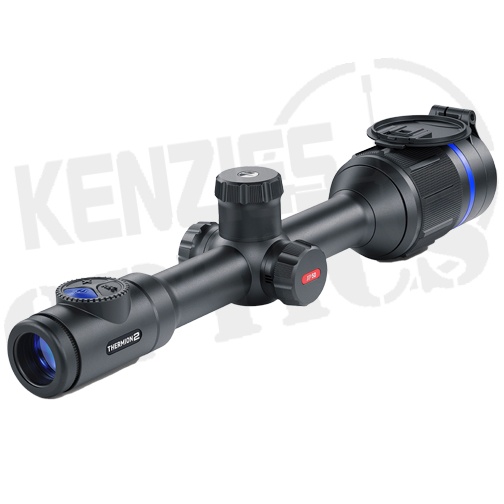

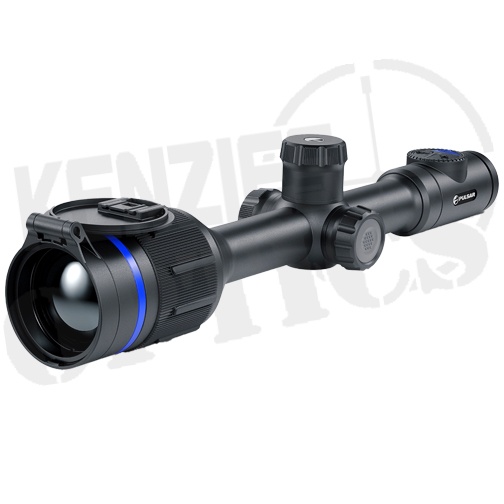

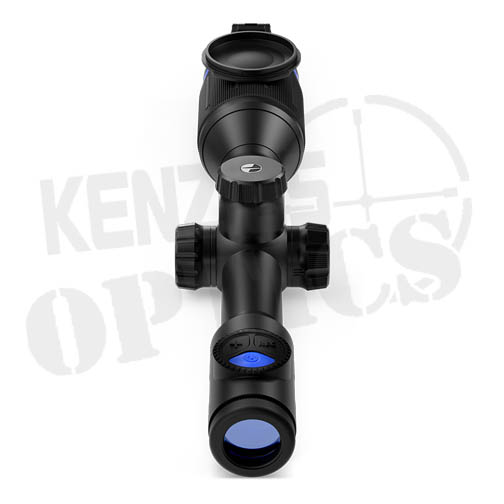

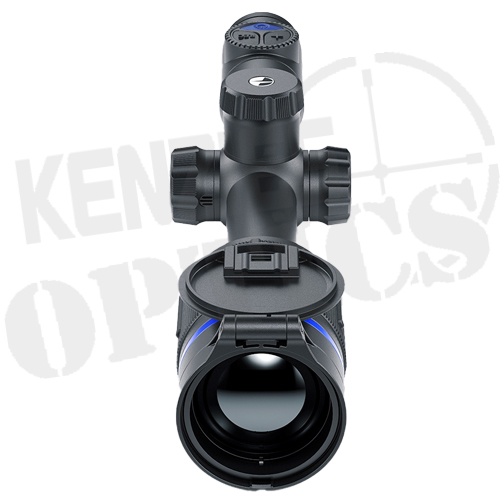

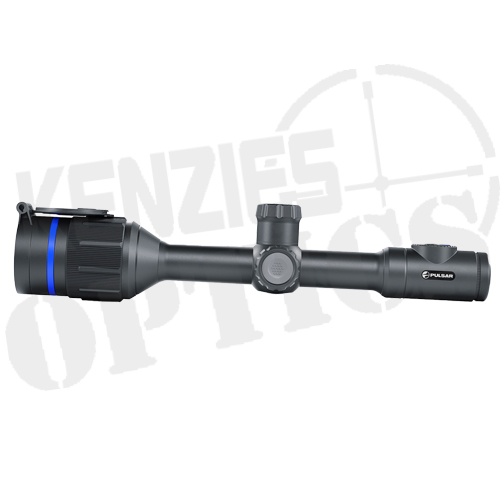

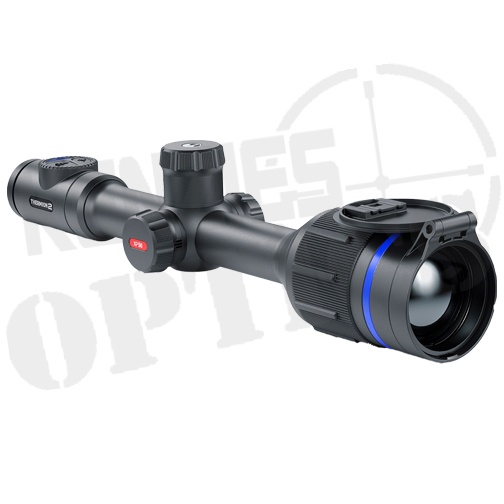

Pulsar Thermion 2 XQ38 Thermal Imaging Scope
The Pulsar Thermion 2 XQ38 Thermal Imaging Scope was built on Pulsar’s legendary thermal excellence. The highly sensitive thermal imaging sensor with NETD <40mK ensures perfect detail recognition even in the harshest weather conditions with low thermal contrast. Quality fast aperture germanium optics ensure optimal heat energy transmissivity minimizing noise and improving the details of the scene observed. The Thermion 2 features unprecedented detection range of up to 1350 m even in complete darkness, thanks to combination of the high quality germanium optics and an advanced thermal imaging sensor.
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances. It features up to 5 zeroing profiles, with 10 distance coordinates each for varying scenarios, in internal memory for quick rifle change outs and on the fly adjustments. There is a wide array of color customizable reticles, including scalable ballistic styles, and color options of black, white, red and green. The Thermion 2 is rugged and reliable and features a lightweight metal construction and is precision fabricated of housing elements that ensures flawless field performance. Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12 gauge and 9.3×64. IPX7 waterproof rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run perfectly even after submersion in up to 3 feet of water for 30 minutes.
Pulsar Thermion 2 XQ38 Thermal Imaging Scope Features
Picture in Picture
Picture in picture displays a magnified image at the top center 10% of the overall field of view for precise shot placement.
Image Boost Technology
Image Boost technology is a proprietary combination of software algorithms which enhance image clarity and overall image detail. Applying Image Boost makes for a sharper and more detailed picture enabling better object identification capabilities.
Full Color, HD AMOLED Display
While the Thermion’s HD AMOLED display delivers crisp, richly contrasted, vividly colored field of view, AMOLED technology ensures flawless, fluid, high resolution imaging and power saving.
Video and Still Photo Recording
Integrated video (including recoil activation) and still image recording in MPEG-4 and .jpg makes sharing the thermal action quick and easy. The onboard 16-GB internal memory handles recoil flawlessly and stores hours of video or thousands of photos.
Stream Vision App Supported
Built in Wifi module gives you connectivity of the Pulsar Thermion XQ38 with smartphones or tablets. The smartphone and thermal imager combination feature direct image streaming, downloading and sharing recorded files, firmware update and many other.
Upgradable Functionality
Functions and features of Thermion models as well as their performance can be upgraded and improved with the release of new software.
User Friendly Controls
Thermion operation and adjustments are simple using the three function buttons on the top of the device and left side encoder. The three buttons and encoder provide access and management of all device menu options, settings, and system functions.
B-Pack Mini Combined Power System
Thermion riflescopes have a combined battery system which consists of two rechargeable batteries – internal and external. The external rechargeable battery ensures additional operation time and can be replaced in a matter of seconds.
Rugged, Reliable All Metal Housing
Designed for rugged reliability, Thermion riflescopes boast full, reinforced yet lightweight metal construction. Precision fabrication of housing elements ensures flawless field performance.
Recoil Rated up to .375 H&H, 12-Gauge and 9.3×64
Recoil rated up to 6,000 joules for flawless performance on larger calibers up to .375 H&H, 12-gauge and 9.3×64.
IPX7 Waterproof
IPX7 waterproof rated for protection from heavy rainfall, snow or other precipitation. The Thermion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
Variable Digital Zoom
Digital zoom, up to 8x, provides improved focus and overall target recognition at significant distances.
Zeroing Profiles Management
Store up to 5 zeroing profiles, with 10 distance coordinates each for varying scenarios, in internal memory for quick rifle change outs and on the fly adjustments.
Customizable Reticle Options
Wide array of color customizable reticles, including scalable ballistic styles. Color options: black, white, red and green.
Battery Used
Type: Combined B-Pack Internal + external
Quantity: 1
Specifications |
||||||
Sensor | 384 x 288 pix. k@ 17 µm (NETD <40 mK) | |||||
Objective Lens | F35/1.0 | |||||
Magnification, x | 2.5-10 (x4 zoom) | |||||
Field of View (H X V), Degrees / m @ 100 m | 10.7 x 8.0 / 18.7 x 14.0 | |||||
Detection Range, m | 1350 | |||||
Sensor Type | Uncooled | |||||
Resolution, Pixels | 384 x 288 | |||||
Pixel Pitch, µm | 17 | |||||
NETD, mK | <40 | |||||
Frame Rate, Hz | 50 | |||||
Display Type | AMOLED HD | |||||
Resolution, Pixels | 1024 x 768 | |||||
Click Value, H/V, mm at 100 m | 18 / 18 (от minimum magnification) | |||||
Click Range, H/V, mm at 100 m | 3600 / 3600 | |||||
Number of Preloaded Reticles | 10+ | |||||
Video / Photo Resolution, Pixel | 1024 x 768 | |||||
Video / Phot Format | .mp4 / .jpg | |||||
Wireless Protocol | WiFi | |||||
Wireless Standard | 802,11 b/g | |||||
Frequency, GHz | 2.4 | |||||
Line of Sight Reception Range, m | 15 | |||||
Degree of Protection, IP Code (IEC60529) | IPX7 (waterproof) | |||||
Operating Temperature Range, °С | -25 – +50 | |||||
Max Recoil Power on Rifled Weapon (Eo), Joules | 6000 | |||||
Shock Resistance on the Smooth Bore Rifles, Caliber | 12 | |||||
Mounting Brackets on Weapon | Standard 30mm Rings | |||||
Output Voltage, V | 3.0 – 4.2 | |||||
Battery Type | Dual Li-Ion B-Pack Mini Power System: 2 A-h Changeable Battery (External) / 3.2A-h Battery (Internal) | |||||
Capacity, mAh | 2000 (external) + 3200 (internal) | |||||
Operating Time on Battery Pack (at t=22 °C), h * | 5+ | |||||
External Power Supply, V | 5 (Micro USB Type B) | |||||
Body Material | Metal | |||||
Dimensions, mm | 399 x 78 x 83 | |||||
Weight, kg | 0.9 |
