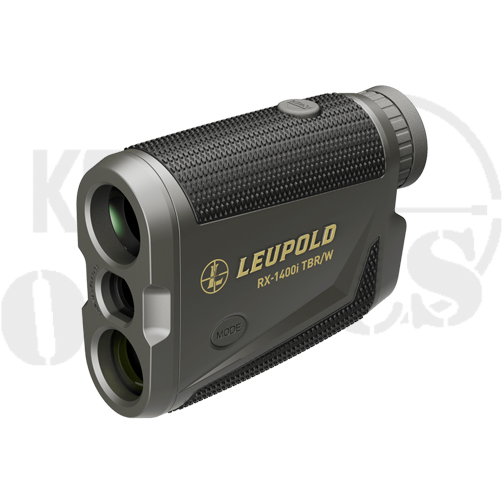

Leupold RX-1400i TBR/W Gen 2 Rangefinder
The Leupold RX-1400i TBR/W Gen 2 Rangefinder was designed to be the most versatile, feature rich rangefinder in its class. It is equipped with a bright red display and Leupold’s high performance DNA laser engine this lightning fast rangefinder will take your hunting and shooting to the next level.
Its dead-on ranging engine delivers the speed and accuracy serious backcountry sportsmen demand, while its ballistically calculated ranges for riflemen and Flightpath and trig solutions for archers – simplify even the most extreme uphill and downhill shots. Adaptable and powerful the RX-1400i TBR/W is the perfect addition to any outdoorsman’s pack. It can also calculate 10 MPH windage holds and display additional holdovers in MOA, MIL, inches, and centimeters. Whether you’re carrying a rifle or a bow this season, you’ll want the RX-1400i TBR/W close at hand.
Leupold RX-1400i TBR/W Gen 2 Features
Line of Sight (LOS)
Line of Sight (LOS) calculates the distance to a target in a straight line, regardless of any incline or decline.
Bow Mode
Bow Mode uses the distance and the angle of a shot to calculate a ballistic equivalent to the target for more accurate uphill and downhill archery shots.
TBR/W
True Ballistic Range / Wind (TBR/W) technology provides ballistically calculated ranges for extremely accurate shots at longer distances and steeper angles. It can also generate a hold point for a 10 MPH wind at a 90 degree angle out to 800 yards.
Last Target Mode
Last Target mode ensures the rangefinder reads the farthest target in the laser’s path, so grasses and twigs don’t interfere with an accurate range.
Flightpath
Flightpath technology uses your bow’s ballistics to display the highest point of your arrow’s flight, so you can take tighter shots with more confidence.
TOLED
TOLED displays use bright red numbers and letters and have adjustable brightness settings to optimize readability in changing light conditions.
Selectable Reticles
Offers a variety of reticles to choose from to fit any use or preference.
Specifications |
||||||
| Magnification | 5 | |||||
| Tripod Compatible (1/4-20) | No | |||||
| Rifle Angle Compensation | TBR/W | |||||
| Archery Angle Compensation | Bow Mode | |||||
| True Ballistic Range (TBR) | No | |||||
| Horizontal Distance (TRIG-H) | No | |||||
| Archer’s Advantage | No | |||||
| True Golf Range (TGR) | No | |||||
| Trophy Scale | No | |||||
| Prism Lock | No | |||||
| Battery Type | CR2 | |||||
| Length (in) | 4 | |||||
| Width (in) | 1.4 | |||||
| Height (in) | 3 | |||||
| Weight (oz) | 5.1 | |||||
| Objective Diameter (mm) | 21 | |||||
| Linear FOV (ft@1000 yd) | 368 | |||||
| Angular FOV (Degrees) | 7 | |||||
| Eye Relief (mm) | 18.3 | |||||
| Min Diopter (dpt) | -3 | |||||
| Max Diopter (dpt) | 3 | |||||
| Light Transmission (%) | 60 | |||||
| Battery Life (Actuations) | 3000 | |||||
| Accuracy to 125 (yd) | .5 | |||||
| Accuracy to 1000 (yd) | 2 | |||||
| Accuracy above 1000 (yd) % | .5 | |||||
| Max Range – Deer (yd) | 900 | |||||
| Max Range – Trees (yd) | 1200 | |||||
| Max Range – Reflective (yd) | 1400 | |||||
| Min Range (yd) | 6 | |||||
| Laser Classification | Class 3R | |||||
