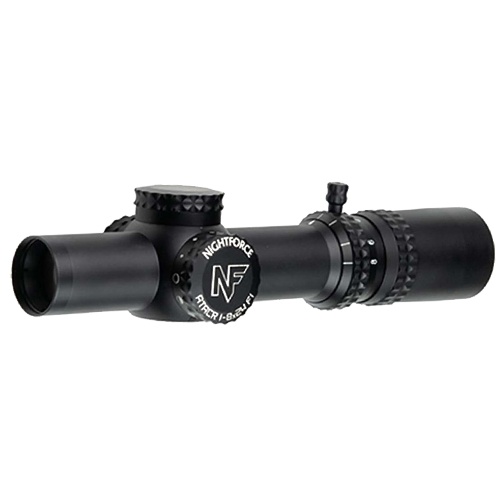

Nightforce ATACR 1-8x24mm
The Nightforce ATACR 1-8x24mm is designed and built to be the ultimate low-power variable riflescope. It includes pristine ED glass, bright daylight illumination, an intelligent reticle, very low-profile adjustments and bomb-proof reliability, with a field of view at 1x equivalent to open sights…but vastly more precise. The Nightforce ATACR 1-8×24 F1 measures just over 10 inches in length and weighs 21 ounces, with a streamlined profile. The daylight visible, center red dot allows for rapid engagements like a red-dot sight.
Unlike a red-dot, however, the 1-8x provides up to 8x zoom to help locate, identify and engage targets at the maximum effective range of most rifles. The intelligent FC-DM first focal plane reticle provides precise hold and hold-off points. The low-profile turrets are capped to prevent accidental adjustment and offer true .1 Mil-Radian adjustment. To aid in fast magnification adjustments, an integrated Power Throw Lever (PTL) is included.
Nightforce ATACR 1-8x24mm Features
Low profile, capped adjustments .1 Mil-Radian increments
Integrated power throw lever
Daylight illuminated reticle; “Off” settings between brightness settings
34 mm body tube for superior strength and maximum adjustment range
Two piece locking diopter

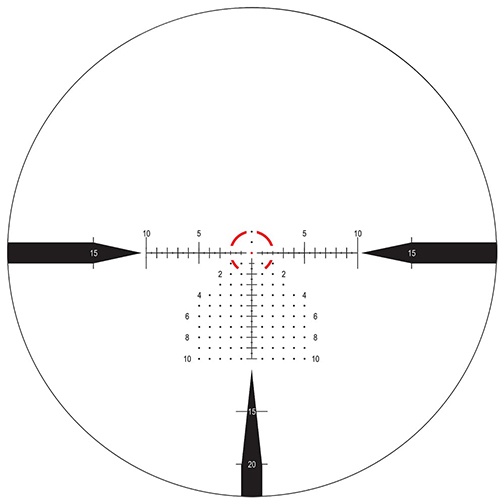

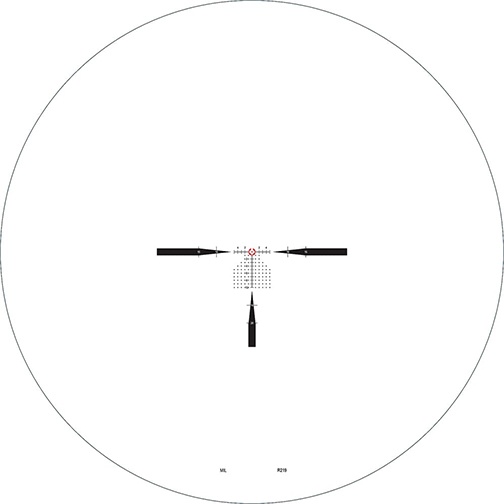

Nightforce Atacr 1-8 FC-DM Reticle
The first focal plane FC-DM reticle is optimized specifically for low power variable riflescope use. At low power, the daylight bright center dot and segmented circle are visible under the brightest of conditions, allowing for fast and accurate target acquisition.
The clean .5 and 1 Mil-radian (Mil) markings provide easy hold points for moving targets, wind and elevation hold-overs, or for reference markings. For more precise engagements and use at longer ranges, the additional features of the reticle provide fast and easy elevation and windage holds. The FC-DM incorporates reference dots spaced every 1 Mil down to 10 Mils, allowing for easy hold-o s and shot corrections.
Designed specifically for the ATACR 1-8×24 F1 riflescope, this reticle is perfectly suited for most any shooting application including close quarters, hunting, competition, and general shooting.
For more reticle information click here »
|Objective Outer Diameter||24 mm|
|Exit Pupil Diameter||1x: 11.26 mm
8x: 3.19 mm
|Field of View @100 yards||1x: 96.1 ft
8x: 13.1 ft
|Field of View @100 meters||1x: 32.0 m
8x: 4.4 m
|Eye Relief||95 mm (3.74 in)|
|Internal Adjustment Range||e: 30 Mil
w: 30 Mil
|Click Value||.1 Mil-rad|
|Parallax Adjustment||Fixed 125 yd|
|Tube Diameter||34 mm (1.34 in)|
|Eyepiece Outer Diameter||46 mm|
|Overall Length (inches/mm)||10.06 in (255.5 mm)|
|Weight (ounces/grams)||21 oz (595 g)|
|Mounting Length (inches/mm)||5.67 in (144 mm)|
|PTL (Power Throw Lever)||Standard|
|Reticles Available||FC-DM / Daylight visible, adjustable illumination|
|Elevation Feature||Capped, low profile|
