Description

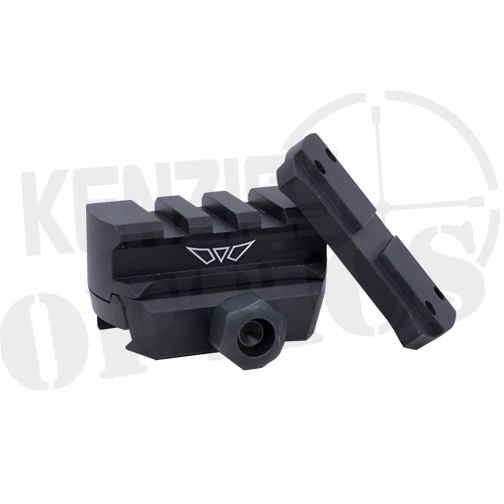

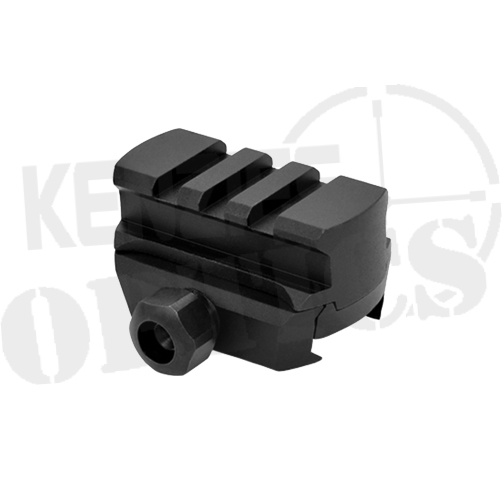

Warne Picatinny Modular Red Dot Riser Mount

The Warne Picatinny Modular Red Dot Riser Mount was designed and made in the USA. It offers an easy height adjustment with the included spacer to fit red dot optics that use a Picatinny attachment and requires a riser for use on an MSR. Since Picatinny mounted red dots can vary in height, this mount allows the user to select 2 different heights based on their needs. All riser mounts that Warne offers share a robust mounting base, while the top is engineered specifically for different red dot styles

Warne Picatinny Modular Red Dot Riser Features

Height w/o insert .805” top of rail to top of riser

Height w/insert .985” top of rail to top of riser

All risers include a .180” thick spacer

Designed and MADE IN USA

Installation Instructions

Assembly Instructions for 6102M – Picatinny

Assemble base and mount with supplied T-10 screws.

Starting on the underside of the base insert supplied T-10* screws up through the bottom & loosely tighten all 4 screws

Continue to tighten to a max of 25 in/lb

Place mount on rail and tighten nut to a max of 65 in/lb

*Use longer screws with spacer plate, shorter screws w/o spacer






More Rings & Mounts

Additional information

Weight .2 lbs
