Leupold Mark 4HD 4.5-18×52 M1C3 Side Focus FFP Riflescope – Illuminated PR1-MOA

Original price was: $1,799.99.Current price is: $1,599.99.

Backorder this item now

Want to be notified when this product is back in stock?

SKU: 183623 Categories: , Tags: , , , ,

Leupold Mark 4HD 4.5-18×52 M1C3 Side Focus FFP Riflescope – Illuminated PR1-MOA

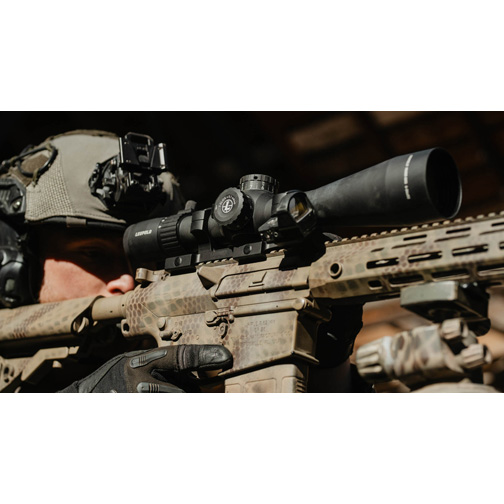

Ready your rifles with a versatile Leupold Mark 4HD 4.5-18×52. Leupold took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Leupold Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by Leupold’s lifetime guarantee.

Leupold Mark 4HD 4.5-18×52 Features

4:1 Zoom Ratio

A 4:1 zoom ratio strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.

Professional Grade Optical System

Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.

Motion Sensor Technology (MST)

Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.

Waterproof, Fogproof & Shockproof

Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

M1C3 Adjustments

These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock feature prevents inadvertent adjustments and ensures accurate return to zero.

Side Focus

The side focus adjusts the scope’s parallax, making the reticle clearer and have less perceived movement when you’re shooting at different distances.

Electronic Reticle Level

The Electronic Reticle will flash when the scope isn’t level, promoting more accurate long-range shots. It can also simplify the mounting process.

Custom Dial Compatible

Leupold’s Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.


This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.

Night Vision Compatible Illumination

Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment’s sensitivity.

First Focal Plane

In First Focal Plane (front focal plane) scopes, the reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.

Product Manual

PR1-MOA Illuminated Reticle

MOA based grid

Created with input from elite shooters and hunters

Multiple aiming points for extreme long-range shots

1 MOA increments

40 MOA of measurement in each direction

Front (first) focal plane


Battery Type CR2032
BDC Dial Included No
Daylight Bright Illumination Yes
Custom Dial System (CDS) No
Elevation Adjustment Type M1C3
Guard-ion Lens Coating No
Locking Dial Yes
Magnification Type Variable
Revolution Indicator Yes
Reticle Illum. FFP PR-1MOA
Reticle Type Illuminated
Adjustable Objective No
Switch Type Push Button
Windage Adjustment Type Capped
Weight (oz) 27
Elevation Adjustment Value per Click 1/4MOA
Elevation Adjustment Range (MOA) 125
Elevation Adjustment Range (MIL) 36
Elevation Adjustment Range (cm @ 100m) 360
Elevation Adjustment Per Revolution 25 MOA
Elevation Dial Travel Limit 71.5MOA
Windage Adjustment Value per Click 1/4MOA
Windage Adjustment Range (MOA) 65
Windage Adjustment Range (MIL) 18
Windage Adjustment Range (cm @ 100m) 180
Windage Adjustment Per Revolution 24 MOA
Magnification Max 18
Magnification Min 4.5
Objective Lens Diameter (mm) 52
Linear FOV Low Mag (ft@100yds) 23.1
Linear FOV High Mag (ft@100yds) 5.2
Angular FOV Low Mag (Degrees) 4.4
Angular FOV High Mag (Degrees) 1
Eye Relief Low Mag (in) 3.6
Eye Relief High Mag (in) 3.9
Minimum Parallax-Free Distance (yd) 25
Battery Life (hr), Low Intensity 1600
Battery Life (hr), Medium Intensity 1000
Battery Life (hr), High Intensity 300
Number of Illum Settings 8




Total Length (in) – A 14.6
B Total Mounting Space (in) – B 6.3
C Front Mounting Space (in) – C 1.9
D Rear Mounting Space (in) – D 2.1
E Eyepiece Length (in) – E 3.3
F Objective Length (in) – F 5.1
G Objective Diameter (in) – G 2.4
H Eyepiece Diameter (in) – H 1.8
K Maintube Diameter (mm/in) – K 34 mm
