Description

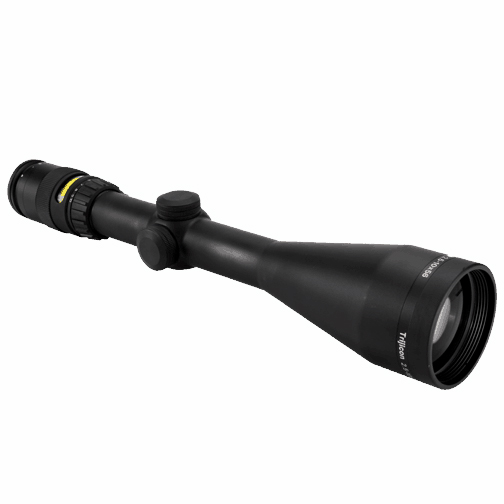

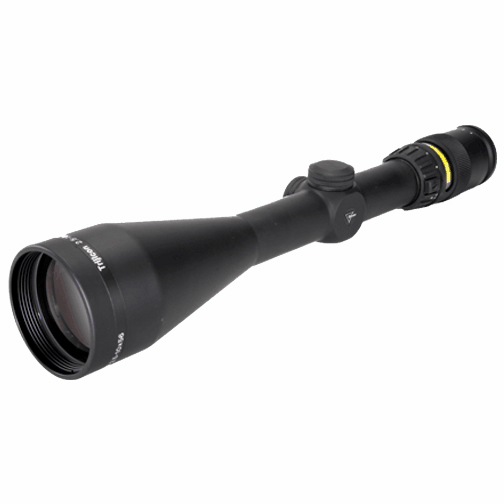

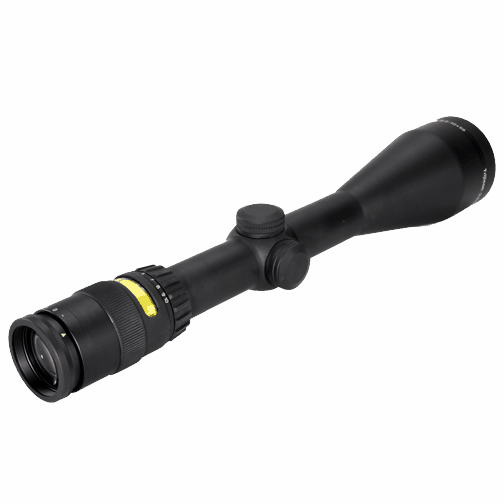

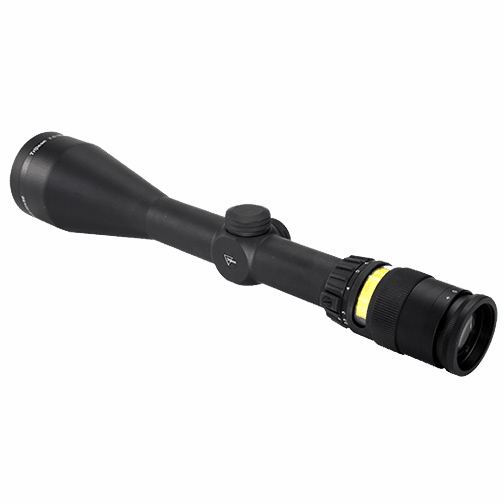

The TR22 AccuPoint has extreme light gathering capabilities with a huge 56mm objective lens, 30mm tube and the highest quality glass available. The scope is illuminated though the use of fiber optics and tritium, providing a vivid aiming point without the need for batteries. If your hunting calls for long distance shots, this AccuPoint is for you.


Features

Battery Free Illumination
Features a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

Variable Power
Allows the user to adjust magnification level to situational needs.

Aircraft-Grade Aluminum Housing
All-weather rugged construction protects against the toughest elements.

Superior Quality Lenses
Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion.

Second Focal Plane Reticle
Reticle size remains constant as magnification increases, which provides a more exact aiming point at higher magnifications.

Long Eye Relief
Provides unparalleled eye relief and protects against high-impact recoil from larger caliber rifles.

Easy-Focus Eyepiece “Both Eyes Open”
The illuminated reticles allow you to shoot with “both eyes open” for better target acquisition.

Zero Forward Emission
The illuminated reticle does not project any illumination from the objective lens.

Matte Black Finish
Eliminates glare and light reflection.

Waterproof To 3 Meters (10ft)
Dry-nitrogen-filled to eliminate fogging.

Limited Lifetime Warranty
Tritium lamp is warranted to illuminate for 15 years from date of original manufacture.


Bindon Aiming Concept

Although human vision is based on a binocular or two-eyed vision of an image, traditional riflescopes present a monocular view of the target. This monocular view significantly decreases vision capabilities and makes it difficult to acquire and track targets.

Traditionally, “both eyes open” aiming has been widely used with iron sights or reflex-style sights, but use with a magnified scope was often deemed implausible. The Bindon Aiming Concept (BAC) is a method of combining “both eyes open” aiming while using a magnified scope.

Shooting with “both eyes open” offers several advantages to the user: better situational awareness, a far superior sense of balance, a wider field-of-view, and far less eye strain. These advantages aid the shooter in quick target acquisition and improved shooting performance.


Utilizing BAC

When tracking a moving target with your shooting eye through a  riflescope, the image appears blurry as the riflescope moves due to the magnification. This blurriness forces the brain to automatically switch eye focus and take in target data from the non-shooting eye (non-magnified). Due to the use of a highly illuminated aiming point in most Trijicon optics, the reticle remains visible in the shooting eye and your brain will superimpose the aiming point onto the non-magnified target.

When the weapon is moving onto the target, you will not notice any magnification, all that will be seen is the illuminated reticle. Once you slow the weapon onto the target, the target will “zoom” in, allowing you to identify and engage more accurately if necessary. This aiming concept happens naturally, without conscious thought, for those with equal or close-to-equal vision in both eyes.


Specifications

Magnification 2.5x-10x
Objective
Size
56mm
Bullet
Drop
Compensator
No
Length 13.8in
Weight 20.7oz
Illumination
Source
Fiber Optics
& Tritium

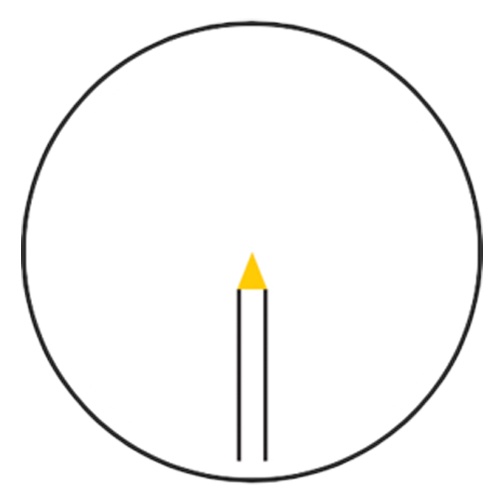

Reticle
Pattern
Triangle
Day
Reticle
Color
Amber
Night
Reticle
Color
Amber
Bindon
Aiming
Concept
No
Eye
Relief
2.8 to 4.1in
Exit
Pupil
16.3 to 5.6mm
FOV 7.18° to 1.94°
FOV
@ 100 yards
37.6 to 10.1ft
Adjustment
@ 100 yards
4 click/in
Tube
Size
30mm
Housing
Material
6061-T6
black hard
coat
anodized
Adjustment
Range
60 MOA
Total
Travel
Waterproof 10ft.
(3m.)

Package Includes

Trijicon Logo Sticker (PR15)

LENSPEN (TA56)

Set of Lenscaps

AccuPoint Manual

Warranty Card


Additional information

Weight 1.3 lbs

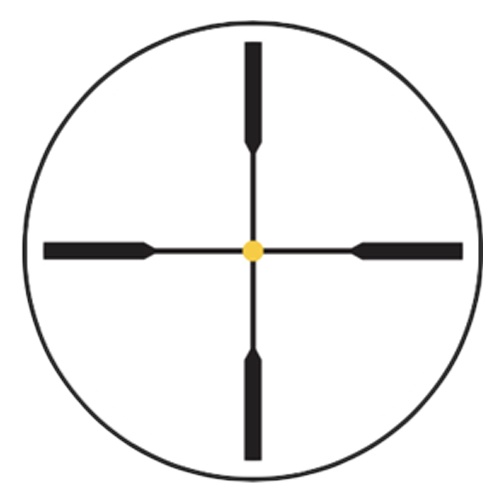

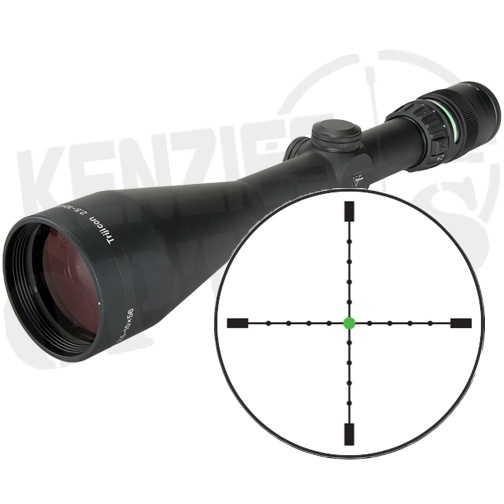

AccuPoint Reticle Options

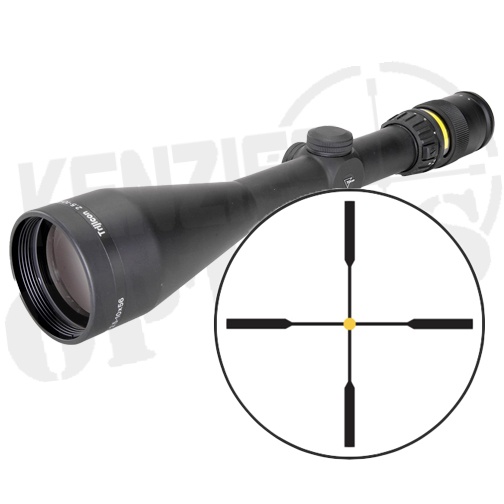

MIL-Dot Crosshair Green, Standard Duplex Crosshair Green, Triangle Post Green, Triangle Post Red
