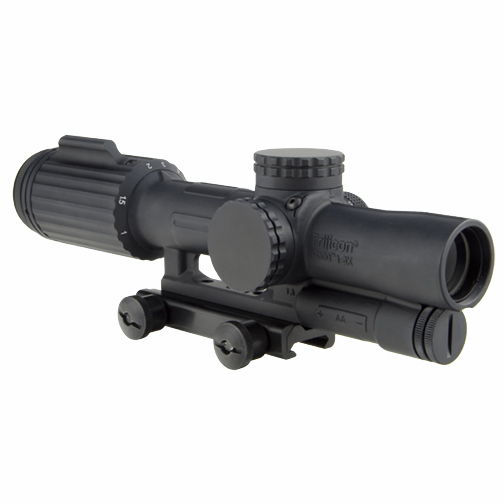

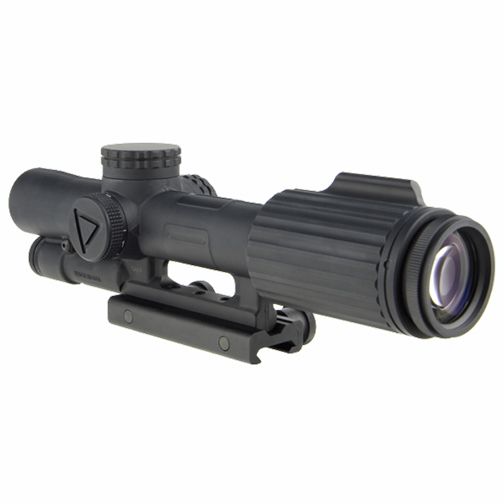

Trijicon VCOG 1 – 6 x 24 mm

The Trijicon VCOG 1 – 6 x 24 mm is a rugged, variable magnification riflescope that is designed for close quarter battle and long range. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the user to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery, it has 6 user selectable brightness settings. The green LED has a battery life of 1,400 hours at setting 4; the red LED has a 700 hour battery life. An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters.

VCOG 1 – 6 x 24 mm Features

First Focal Plane Reticle

Allows user to quickly acquire target and apply correct hold throughout magnification range.

Superior Quality Glass

Multi coated lenses provide clarity and light gathering capabilities with zero distortion.

Rugged Aluminum Alloy Housing

Forged 7075-T6 aircraft aluminum alloy housing makes the VCOG nearly indestructible.

Illuminated Reticle

Powered by a single AA battery.

BDC And Universal Reticles

Choose from Bullet Drop Compensating (BDC) and Ranging reticles for quick and accurate range estimation or Universal MIL and MOA reticles to accommodate multiple calibers, ammunition weights and barrel lengths.

Easy To Set Adjusters

Adjustments are easy and do not require tools.

No Rings Needed

The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system.

Rugged and Durable

Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate service to conditions in the field.

Adjustable Brightness Settings

Six user selectable brightness settings.

Quick Magnification Adjustments

Integrated dial fin allows easy rotation through magnification settings.

Constant Eye Relief

No head or stock adjustments throughout magnification range.

Waterproof

Dry nitrogen filled to eliminate fogging.


Specifications

Magnification 1 – 6x
Objective Size 24 mm
Bullet Drop Compensator Yes
Weight 23.2 oz. (w/o mount or battery)
Illumination Source LED

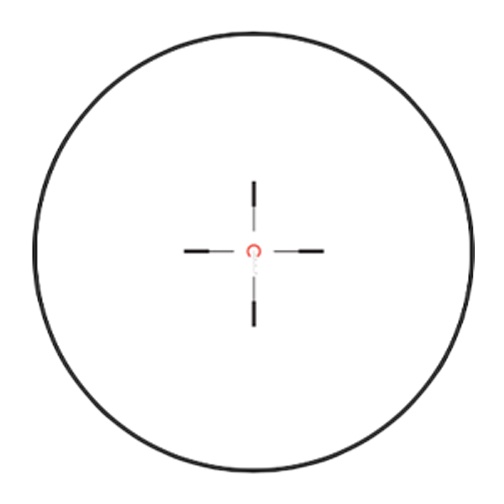

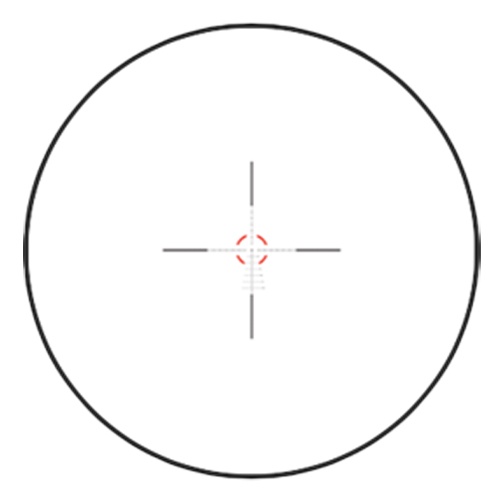

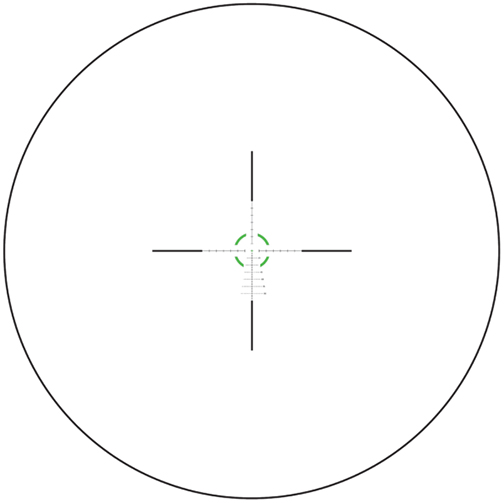

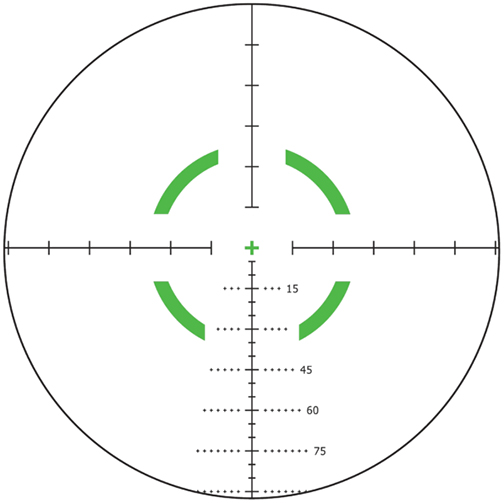

Reticle Pattern Segmented Circle / Crosshair

Segmented Circle / MOA

Horseshoe Dot / Crosshair

Day Reticle Color Red or Green
Night Reticle Color Red or Green
Calibration .223 / 55 grain / 300 BLK
Bindon Aiming Concept Yes
Eye Relief 4 in. Constant
Exit Pupil 0.41 – 0.15 in.
Field of View (Degrees) 18.0 – 3.0
Field of View @ 100 yards 95 – 15.9 ft.
Adjustment @ 100 yards

(clicks per in)

1 click @ 100m = 1/4 MOA
Mount Comes With TA51
Housing Material Forged Aluminum
Batteries 1 AA Alkaline or Lithium Battery
Battery Life 700 hours continuous use at brightness setting 4 of 6
Dimensions 10.05 x 2.51 x 2.73 in.
Focal Plane First
Adjustment Range Elevation: 90 MOA total travel

Windage: 90 MOA total travel

Per Revolution: 20 MOA
