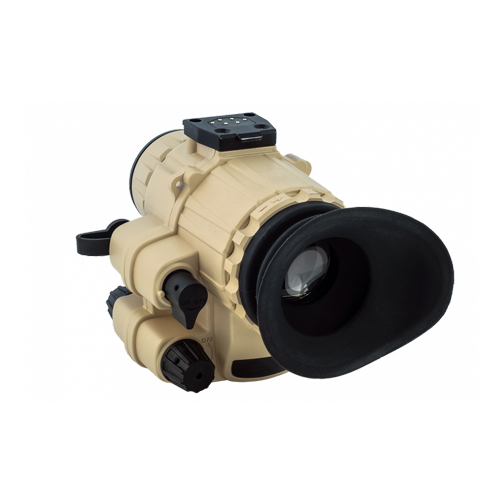

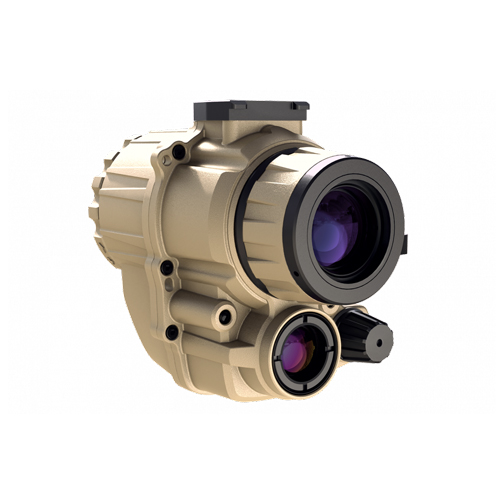

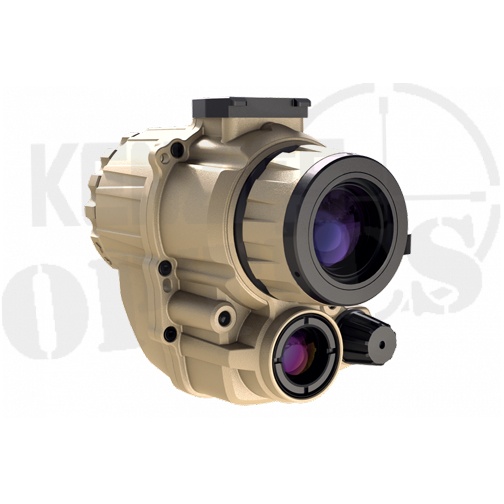

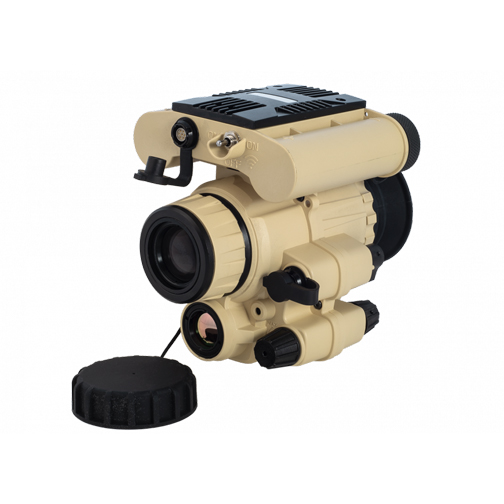

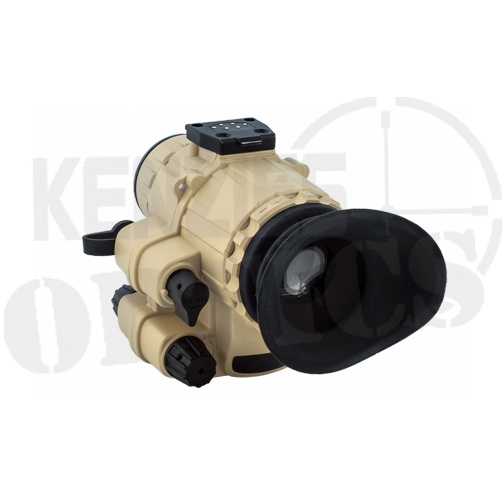

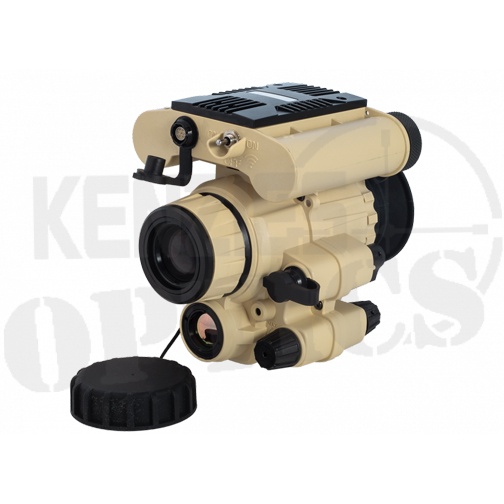

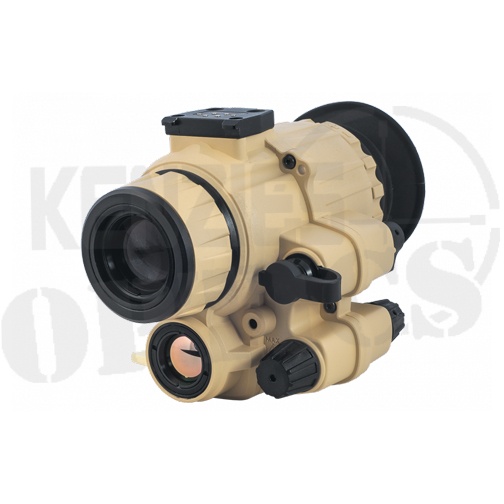

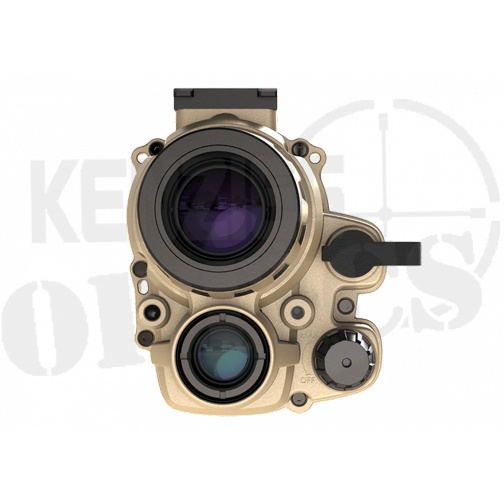

AGM F14 3APW Fusion Tactical Monocular

The AGM F14 Fusion is a tactical monocular that combines traditional white night vision with a thermal overlay. This allows you to observe and search targets at night and extreme environments. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments.

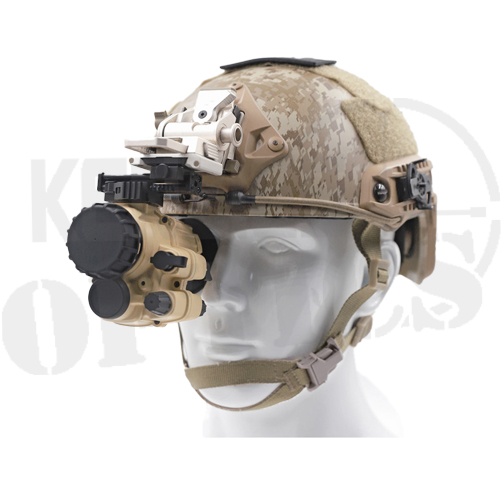

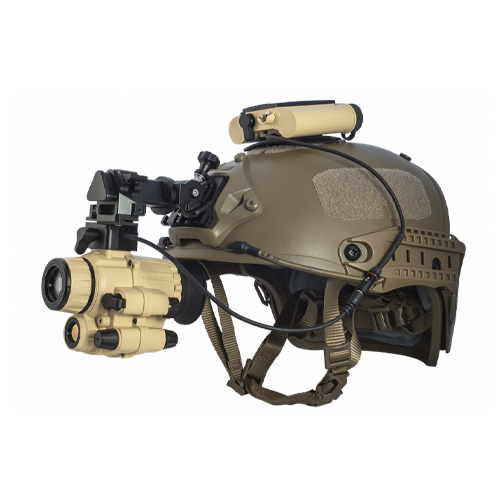

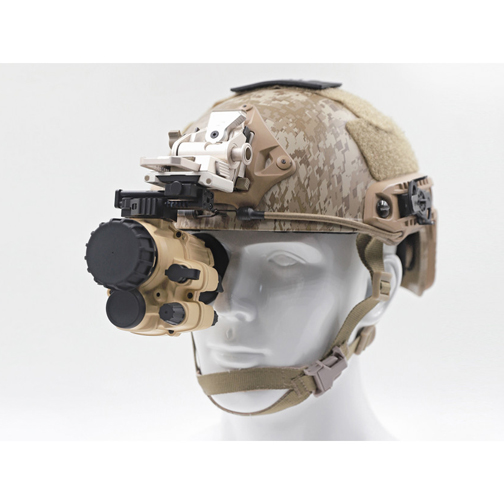

The AGM F14 is outfitted with a Gen 3 high performance image intensifier tube (IIT) and 12μm high sensitivity thermal detector with 640×512 resolution. The F14 can be used as hand held device or mounted on a helmet. The user friendly interface, comfortable and ergonomic operating controls makes adoption and application of the device incredibly simple. The device offers different variants of image view: thermal, I² night vision, and enhanced fusion image that can be easily adapted depending on different environmental conditions. It is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The monocular uses two 18650 rechargeable Lithium battery in the external holder for up to 8 hours of operating time in fusion image mode. In I² night vision mode device can run more than 60 hours.

AGM F14-3APW Fusion Features

Bi-spectrum image fusion and object highlight

Detail enhancement and target recognition

Selection of thermal view channel, I2 night vision channel, or both them combined with multiple fusion modes switchable

12 μm, 640×512 high sensitivity thermal detector

Digital zoom in thermal channel

Azimuth and Pitch/Inclination Indication

Brightness and contrast image adjustment

Extra large exit pupil diameter (15mm)

Low cower consumption. Up to 8 hours continuous running in fusion mode and more then 60 hours operation in I2 night vision mode

Aviation plug for external power supply and video output

Waterproof

Limited 3 Year Warranty

Data Sheet

User Manual

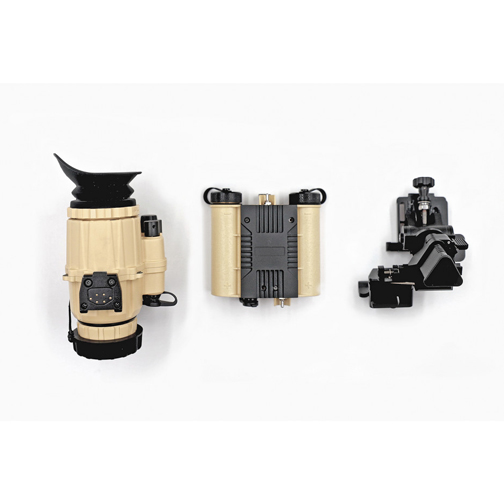

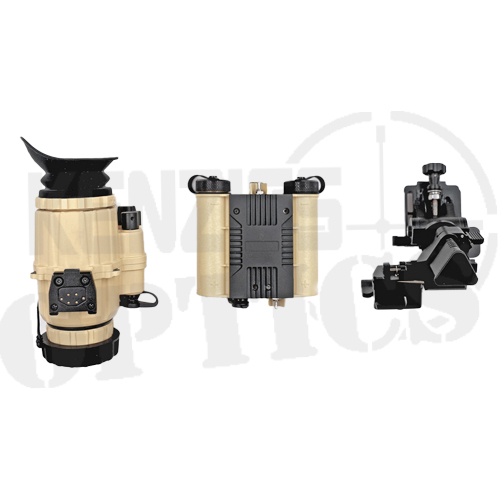

Package Includes

Battery Holder

Two 18650 Lithium Batteries

Helmet Support Kit

Video Cable

Hard Carrying Case

User Manual


Specifications

Detector Type 12 μm VOx Uncooled Focal Plane Arrays
Resolution 640 × 512
Response Waveband 8 μm to 14 μm
Thermal Field of View (HxV) 25.8° × 19.1°
Digital Zoom 1x, 2x, 4x, 8x
Detection Range (6′ object) – 1500 m/yd
Flat Field Correction (FFC) Manual
Palettes White Hot/Black Hot/Orange Hot, Outline, Highlighting, Thermal Image, Breath
Video Output Yes (via aviation plug)
I2 Night Vision Sensor Gen 3 Image Intensifier Tube
I2 Night Vision Module Manual Gain Control Yes
I2 Night Vision Module Lens Focal Length 25 mm
Optical Magnification 1x
Diopter Adjustment -3.5 to +2.5 dpt
Exit Pupil Diameter 15 mm
Eye Relief 25 mm
Bright Light Cut Off Yes
Infrared Illuminator Yes
Battery Type Two 18650 rechargeable battery (external battery holder)
Battery Operating Time More then 8 hours continuous running (fusion image mode) More then 60 hours continuous running (I2 night vision only)
External Power 5 VDC/2 A (via aviation plug)
Protection Level IP67 (Waterproof)
Dimensions 100 × 71 × 86 mm

(3.9 × 2.8 × 3.4 in)

Weight (w/o batteries) 380 g

(0.84 Ib)

Package Includes Monocular, Battery Holder, Two 18650 Lithium Batteries, Helmet Support Kit, Video Cable, Hard Carrying Case, User Manual




Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
