Description

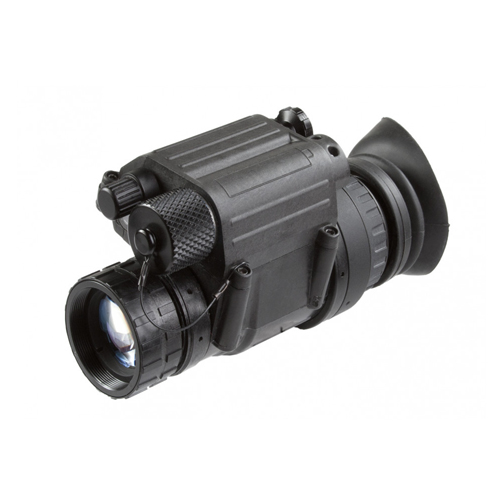

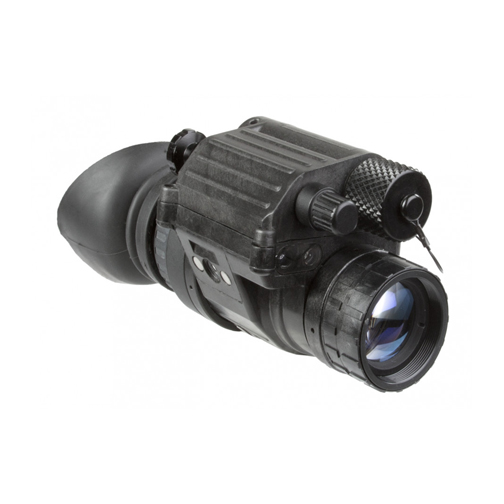

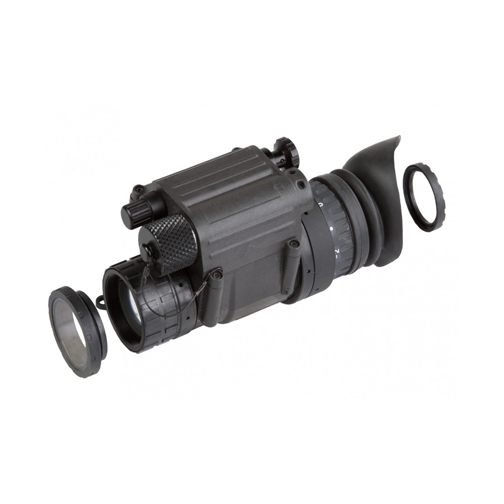

AGM PVS-14 3APW Night Vision Monocular

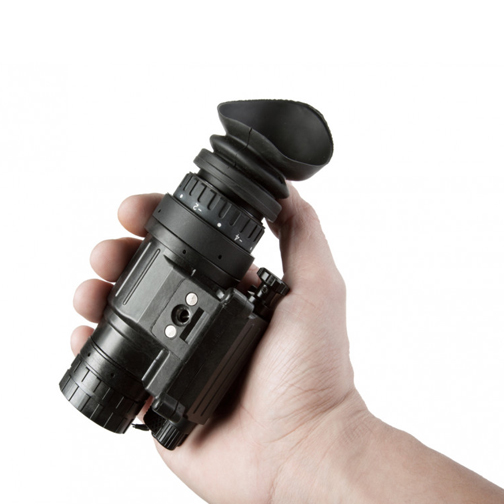

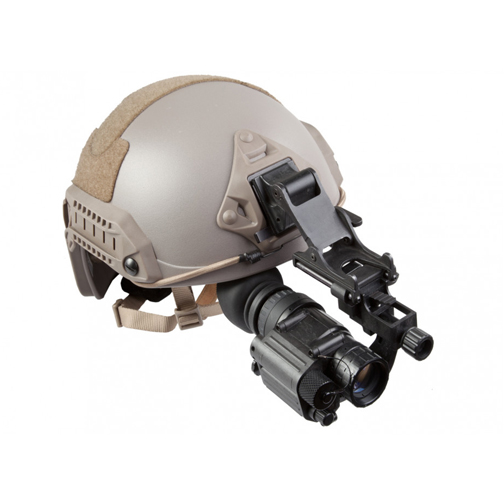

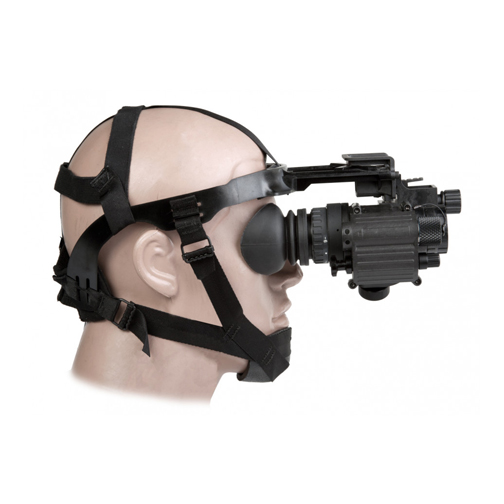

The AGM PVS-14 3APW is a Night Vision Monocular that features a Gen 3 white phosphor auto gated “3APW” FOM 1600-2000 image intensifier tube. The rugged, lightweight, multi purpose night vision device has repeatedly proven itself in combat. It was designed and originally commissioned by the United States Military to enable nighttime operation. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights.

The monocular conforms to 810G Military standards and demonstrates the tightest quality form and function. It is a full featured unit that weighs less than 12.4 ounces. The unit includes manual gain control, an automatic bright light shut-off feature, and a built in infrared (IR) illuminator. The bright light shut off feature ensures that the high quality photocathode tube is protected. AGM’s PVS-14 includes an array of optional accessories to support virtually any operation.

AGM PVS-14 Features

Compact, rugged design

Waterproof

Head or helmet mountable for hands free usage

Manual gain control

Ergonomic, simple, easy to operate controls

Built in Infrared illuminator and flood lens

Limited Three year warranty

Package Includes

Packing Box

System Soft Carrying Case

Helmet/ Head Mount Adapter

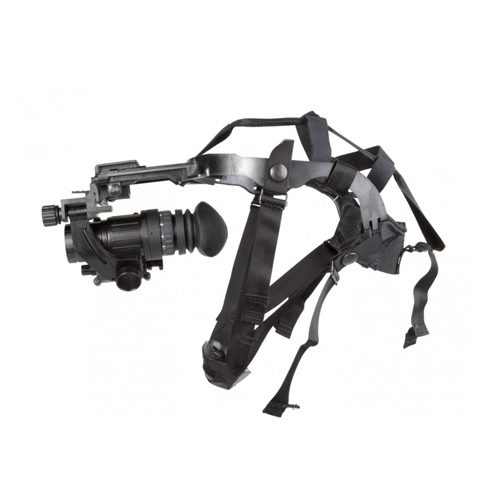

Head Mount Assembly

Neck Lanyard

Operators Manual

Batteries

Demist Shields

Sacrificial Window

Lens Tissue

Data Sheet

User Manual


Specifications

Image Intensifier Tube Gen 3 Auto-Gated “3APW” FOM 1600-2000
Resolution 64-72 lp/mm
Field of view cleanness by zone Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.

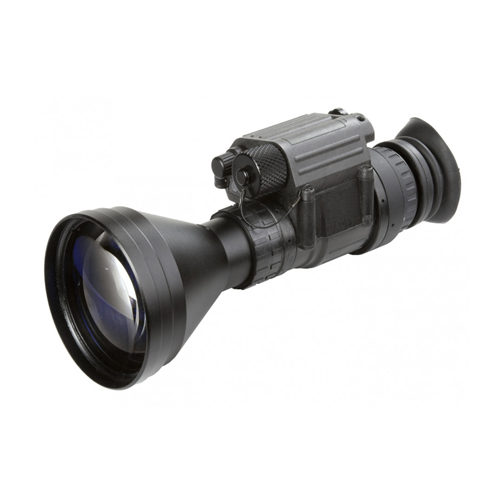

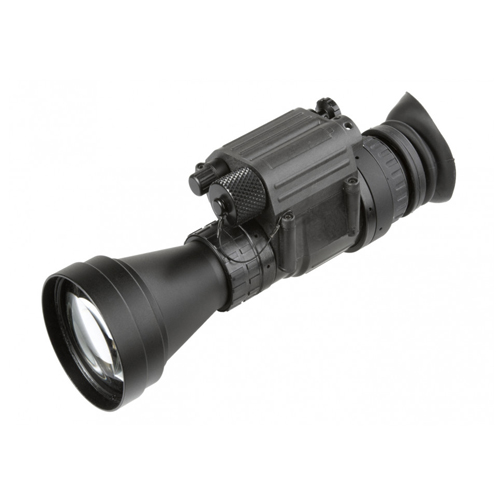

Magnification 1x (3x and 5x optional)
Lens System 26 mm; F/1.2
FOV 40°
Focus Range 0.25 m to infinity
Diopter Adjustment -6 to +4 dpt
Led Indicators Low battery; IR On; Excessive light conditions
Infrared Illuminator Yes
Manual Gain Control Yes
Bright Light Cut-Off Yes
Automatic Shut-Off System Yes
Battery Type One AA Alkaline
Battery Life (Operating) Up to 50 hours at 20°C
Operating Temperature Range -51° C to +49° C

(-60° F to 120° F)

Storage Temperature Range -51° C to +85° C

(-60° F to 185° F)

Weight 0.32 kg

(12.4 oz)

Overall Dimensions 114 x 63x 69 mm

(4,5 x 2,5 x 2,7 in)

Package Includes Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery











Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
