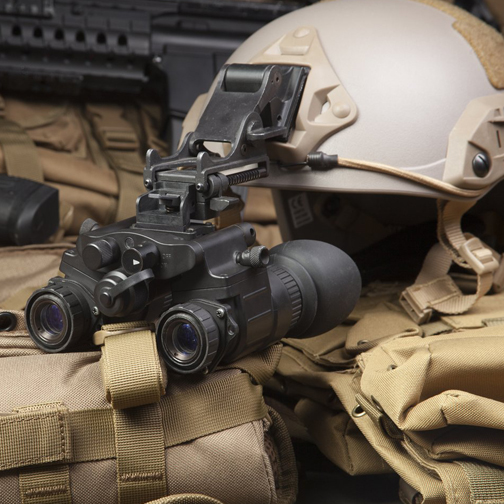

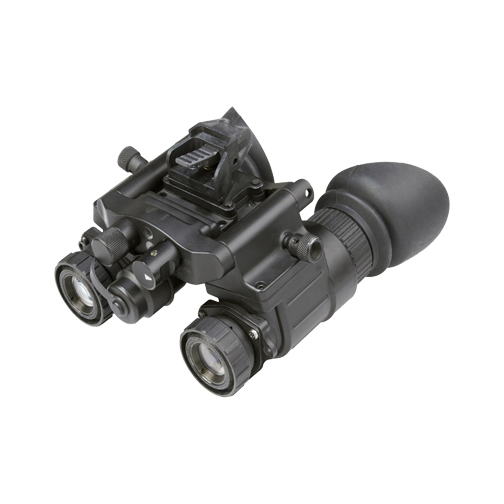

AGM NVG-50 Night Vision Goggles
The AGM NVG-50 Night Vision Goggles are offered in Level 1 Gen 3+ white or green phosphor or level 2 Gen 2 green phosphor. This dual tube night vision system has a 50° field of view. This allows for a large visual field without needing to move your binoculars. It is built with advanced multi coated optics and a compact composite housing. The NVG-50 uses a single AA alkaline battery or CR123A battery, and can run up to 20 hours. It also has an integral infrared illuminator so you can read in the dark.
AGM NVG-50 Night Vision Goggles Features
Redundant dual tube design
True stereoscopic vision
Wide 50° field of view
Lightweight and compact

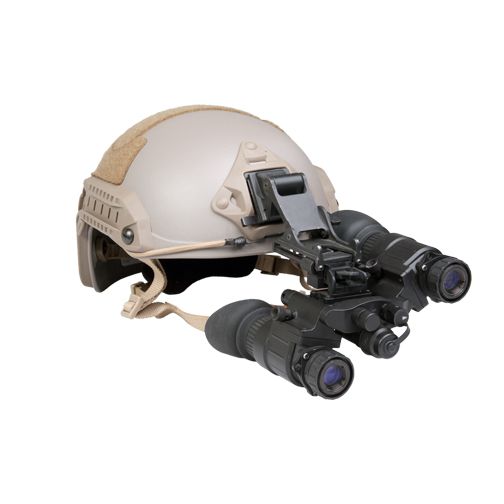

Head or helmet mountable for hands free operation
Bright light cut off
Ergonomic, simple, and easy to operate controls
Built in Infrared illuminator and flood lens
Utilizes single CR123A lithium or AA battery
Limited 3 year warranty
Specifications |
||||||
| Image Intensifier Tube | Gen 3+ “Level 1 Green Phosphor”
Gen 3+ “Level 1 White Phosphor” Gen 2+ “Level 2 Green Phosphor” Gen 3 Auto-Gated “Level 1” |
|||||
| Magnification | 1x (3x optional) | |||||
| Lens System | 19 mm; F/1.26 | |||||
| FOV | 50° | |||||
| Focus Range | 0.25 m to infinity | |||||
| Eye Relief | 17 mm | |||||
| Diopter Adjustment | -6 to +2 dpt | |||||
| Interpupillary Distance | 56 to 72 mm | |||||
| Led Indicators | Low battery; IR on; Excessive light conditions | |||||
| Manual Gain Control | Yes | |||||
| Bright Light Cut-Off | Yes | |||||
| Automatic Shut-Off System | Yes | |||||
| Infrared Illuminator | Yes; Two power levels | |||||
| Battery Type | One CR123A (3V) or AA (1.5 V) | |||||
| Battery Life (Operating) | Up to 20 hours at 20°C

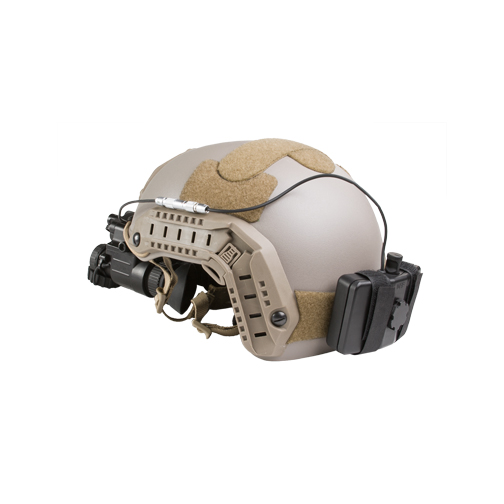

(up to 80 hrs with optional battery pack) |
|||||
| Operating Temperature Range | -40°C to +50°C
(-40°F to +122°F) |
|||||
| Storage Temperature Range | -50°C to +50°C
(-58°F to +122°F) |
|||||
| Weight | 615 g
(1.35 lbs) |
|||||
| Overall Dimensions | 112 × 118 × 74 mm
(4.4 × 4.6 × 2.9 in) |
|||||
