Trijicon ACOG 4x32mm

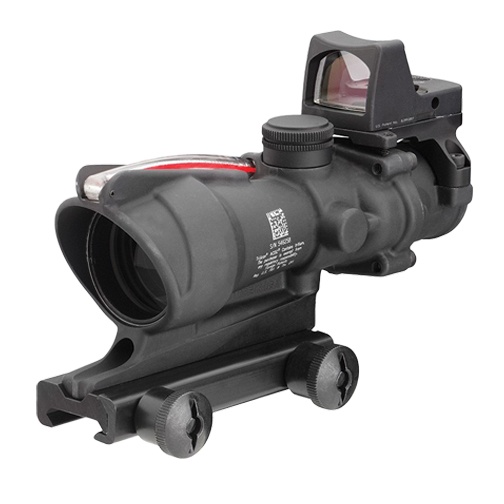

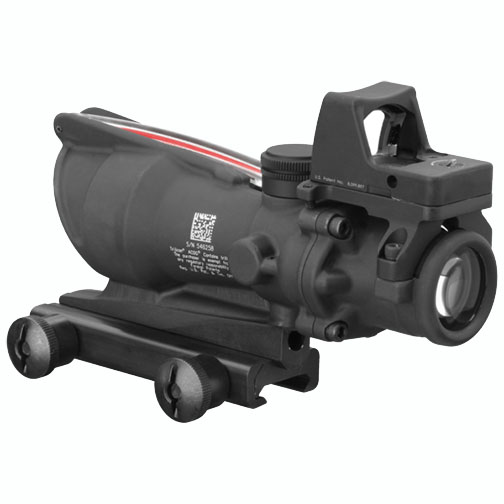

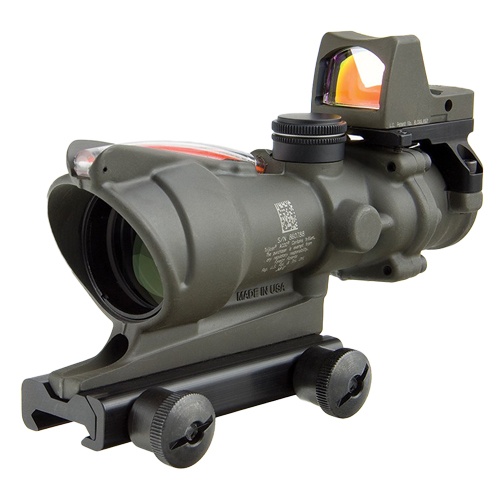

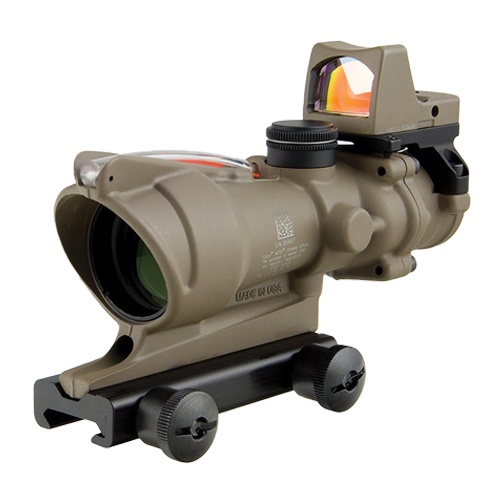

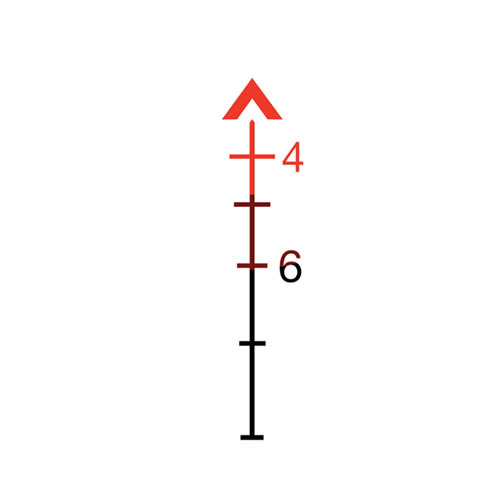

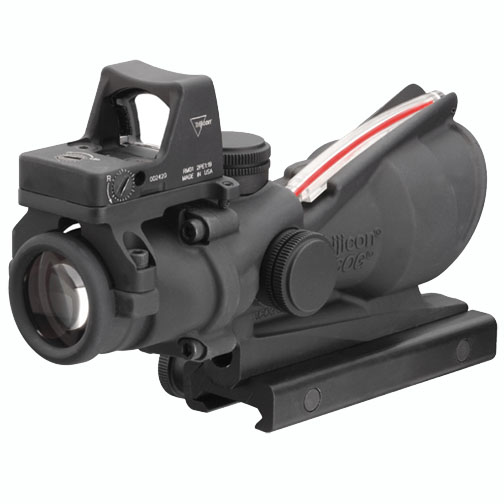

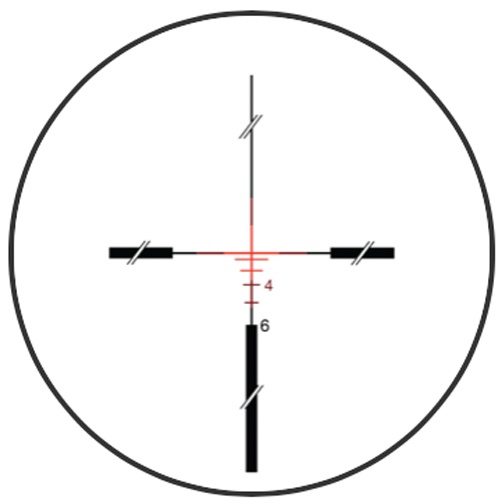

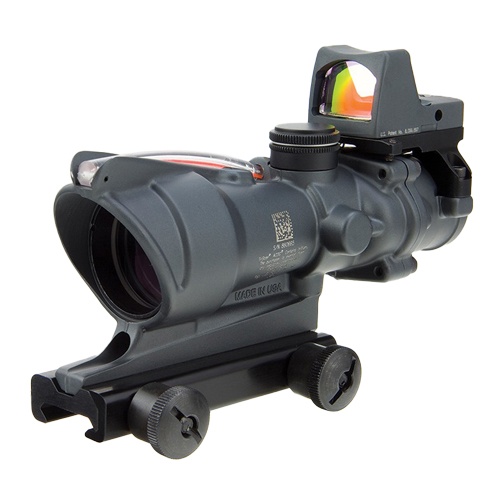

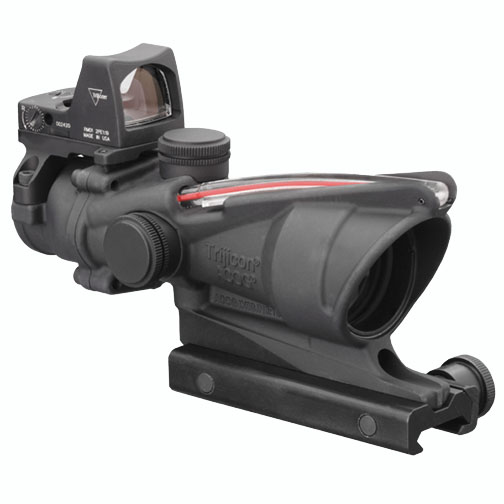

Adapted from the battlefields, US Forces have begun improving this proven Trijicon ACOG scope by adding a small red dot sight on top for close encounter missions. Trijicon has now created a similar model for the public, the TA31-D-100549. The main Trijicon scope provides a dual illuminated reticle using fiber optics and tritium for bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 800 meters without any manual adjustments. A Trijicon RMR Type 2 sits on top with a 3.25 MOA aiming dot.
ACOG 4x32mm Features
Battery Free Illumination
Features a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.
Rugged Aluminum Alloy Housing
Forged 7075-T6 aircraft aluminum alloy housing provides for a nearly indestructible sighting system.
“Both Eyes Open” Design
The ACOG can be used as a CQB sight when shooting “both eyes open,” utilizing the Bindon Aiming Concept (see below).
Superior Quality Glass Lenses
Multi coated lenses provide superior clarity and light gathering capabilities with zero distortion.
Fewer moving parts than a variable optic equals more durability.
No other magnified optic has been used more in combat than the ACOG.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Dry nitrogen filled to eliminate fogging. Five times more waterproof than military standard requirements.
Limited Lifetime Warranty
Tritium lamp is warranted to illuminate for 15 years on fiber optic scopes and 10 years on non-fiber optic scopes.
Bindon Aiming Concept
Although human vision is based on a binocular or two-eyed vision of an image, traditional riflescopes present a monocular view of the target. This monocular view significantly decreases vision capabilities and makes it difficult to acquire and track targets.
Traditionally, “both eyes open” aiming has been widely used with iron sights or reflex-style sights, but use with a magnified scope was often deemed implausible. The Bindon Aiming Concept (BAC) is a method of combining “both eyes open” aiming while using a magnified scope.
Shooting with “both eyes open” offers several advantages to the user: better situational awareness, a far superior sense of balance, a wider field-of-view, and far less eye strain. These advantages aid the shooter in quick target acquisition and improved shooting performance.
When tracking a moving target with your shooting eye through a riflescope, the image appears blurry as the riflescope moves due to the magnification. This blurriness forces the brain to automatically switch eye focus and take in target data from the non-shooting eye (non-magnified). Due to the use of a highly illuminated aiming point in most Trijicon optics, the reticle remains visible in the shooting eye and your brain will superimpose the aiming point onto the non-magnified target.
When the weapon is moving onto the target, you will not notice any magnification, all that will be seen is the illuminated reticle. Once you slow the weapon onto the target, the target will “zoom” in, allowing you to identify and engage more accurately if necessary. This aiming concept happens naturally, without conscious thought, for those with equal or close-to-equal vision in both eyes.
Finding Your Dominant Eye
In order to maximize the potential of “both eyes open” aiming, you must know which eye is dominant. To determine this, conduct the following test:
- First, OPEN BOTH EYES, and hold you index finger out in front of you line of sight on a fixed object.
- Next, CLOSE your non-shooting eye and note the position of finger on target.
- Then OPEN BOTH eyes, keeping finger on target.
- Finally, CLOSE opposite eye and note position of finger on target.
If your finger/aiming point does NOT move, that is your dominant eye. If your finger/aiming point moves off target at a great distance, your OTHER eye is dominant.
|Objective Size||32 mm|
|Bullet Drop Compensator||Yes|
|Weight||15.1 oz without RMR|
|Illumination Source||Fiber Optics & Tritium|
|Day Reticle Color||Red|
|Night Reticle Color||Red|
|Bindon Aiming Concept||Yes|
|Eye Relief||1.5 in|
|Exit Pupil||8 mm|
|FOV @ 100 yards||36.8 ft|
|Adjustment @ 100 yards (clicks/in)||2|
|Housing Material||Forged Aluminum|
The TA31-RMR also includes
3.25 MOA Trijicon RMR Type 2
Lanyard Assembly for Adjuster Caps(TA71E)
Trijicon Logo Sticker(PR15)
ACOG BAC Manual
