Description

NVision NOX Thermal Monocular

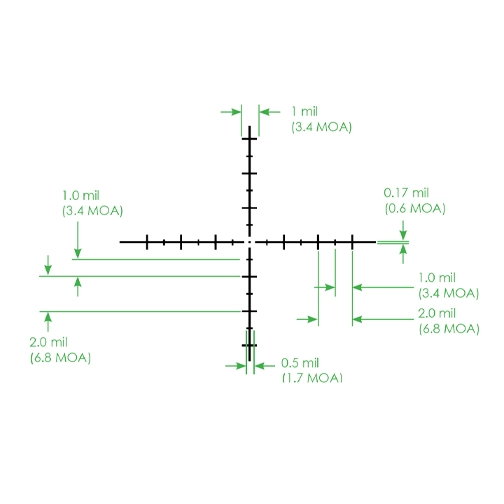

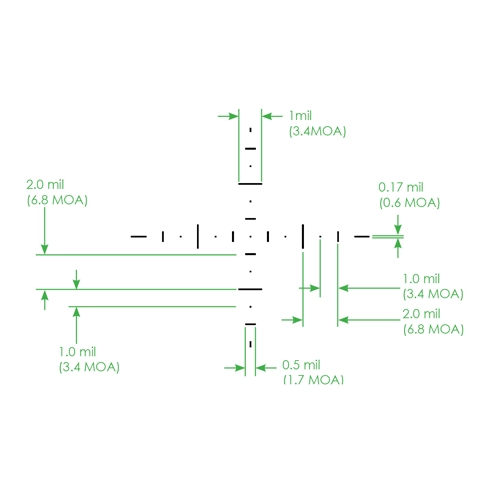

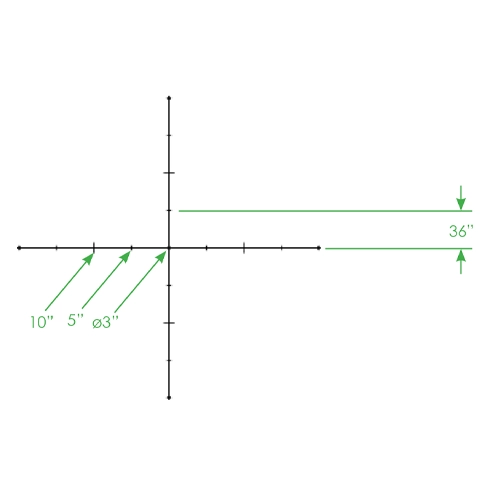

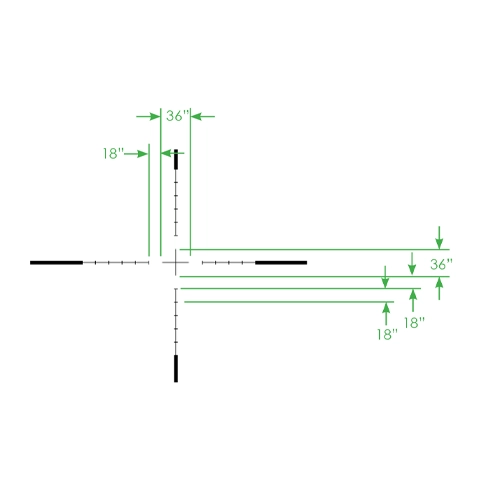

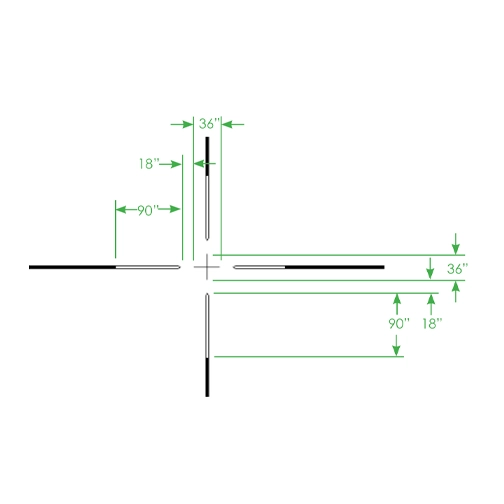

The NVision NOX is one of the most advanced thermal monoculars and is built into a compact and rugged package. It comes in two different configurations, the NOX18 or the NOX35. The handheld scanner can be used as a weapon sight with adjustable reticles and can be helmet mountable with user configurable left /right eye operation. It has a state of the art 12 micron 640×480 BAE thermal core with 60 Hz refresh rate, delivering the same image clarity as the N-Vision HALO Thermal Scope.

NVision NOX Thermal Monocular Features

BAE 12 micron 640×480, 60 Hz Core

2 models: 18mm and 35mm

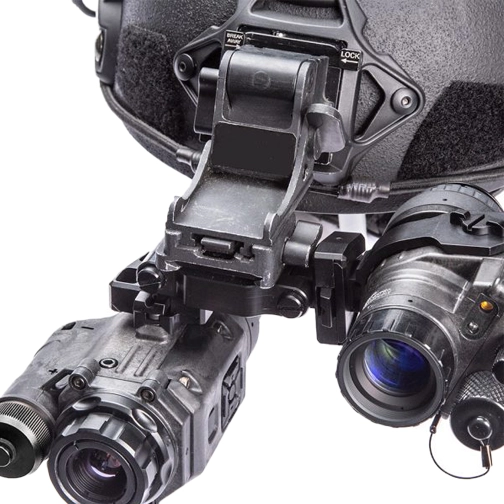

Weapon and helmet mountable

NVision NOX Includes

18650 adapter

USB Cable

Video Cable

CR123 battery (1)

18650 battery (1)

18650 battery charger

Quick reference guide

Field pouch


Specifications

Sensor Pixel Pitch 12 um
Resolution 640 x 480
Refresh Rate 60 Hz
Lenses 18mm F1.0

35mm F1.1

Focus Manual, non-rotating
Field of View 18mm: 24.3(H) x 18.3(V); 30.4 (diagonal)

35mm: 12.2(H) x 9.3(V); 15.1 (diagonal)

Digital Zoom 1x/2x/4x/8x
Display Type OLED 640×480 B&W
Power One CR123 or one 18650
Remote power USB 5.0V
External connector Waterproof USB-C
Calibration (NUC) Manual
Weight CR123 Battery 18mm : 12.6 oz (w/o weapon mount) 14.9 oz (w/ weapon mount)

35mm: 16.0 oz. (w/o weapon mount) 18.3 oz. (w/ weapon mount)

Weight 18650 Battery: 18mm: 14.3 oz (w/o weapon mount) 16.6 oz (w/ weapon mount)

35mm: 17.7 oz (w/o weapon mount) 20.0 oz (w/ weapon mount)

Size CR123 Battery 18mm: 5.0×2.9×2.4 (w/o weapon mount) 5.0×2.9×3.0 (w/ weapon mount)

35mm: 6.8×2.9×2.4 (w/o weapon mount) 6.8×2.9×3.0 (w/ weapon mount)

Size 18650 Battery 18mm: 6.4×2.9×2.4 (w/o weapon mount) 6.4×2.9×3.0 (w/ weapon mount)

35mm: 6.8×2.9×2.4 (w/o weapon mount) 6.8×2.9×3.0 (w/ weapon mount)


Related Items

Additional information

Weight N/A
Size

18mm, 35mm
