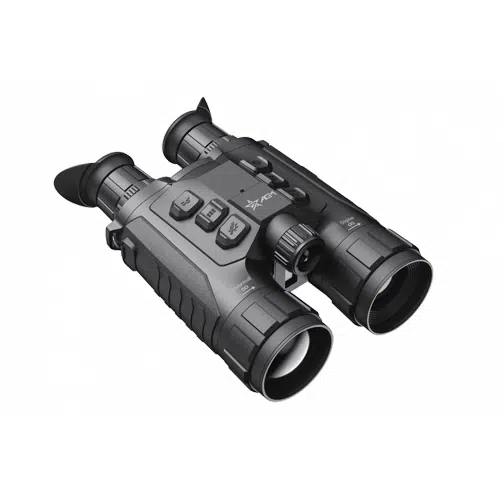

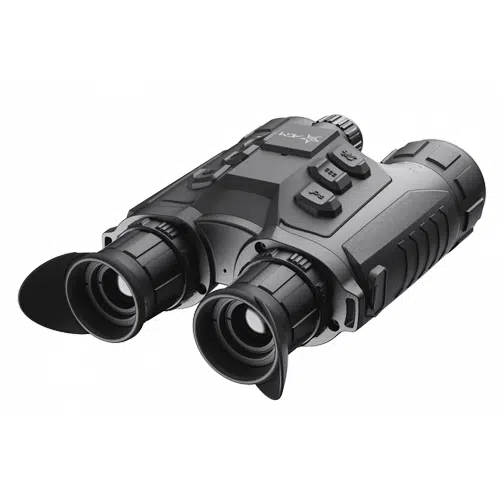

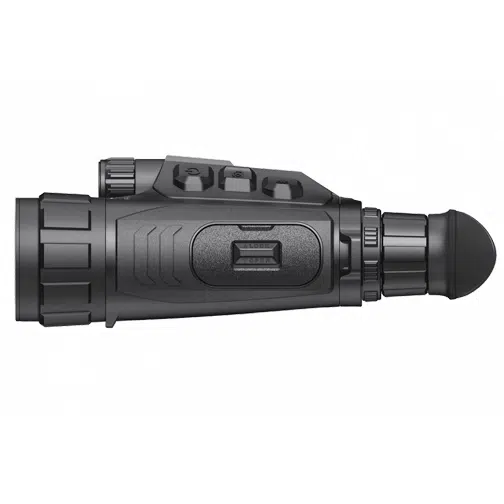

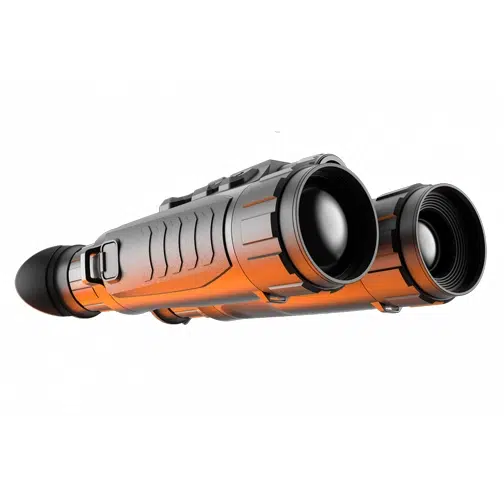

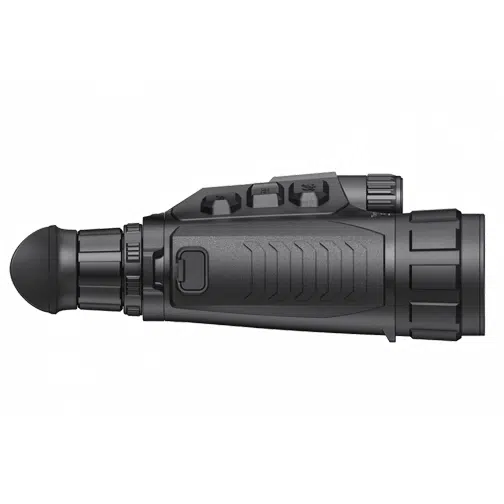

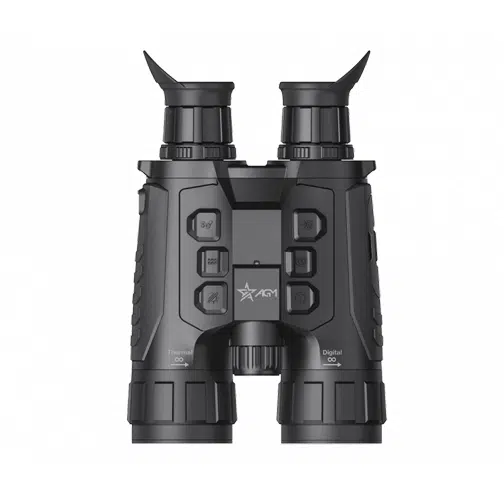

AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular

$4,995.00

Out of stock

Fast & Free Shipping $199+

Join the waitlist to be emailed when this product becomes available

Description

AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular

The AGM ObservIR LRF 50-640 Thermal & Digital Day / Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector.

Unlike other thermal binoculars on the market, the AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.

The AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 50 mm objective lens with a 1.0 aperture, 3840×2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, picture-in-picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries,

USB Type-C port for external power capabilities, IP67 waterproof rating. The AGM ObservIR LRF 50-640 Thermal & Digital Day/Night Vision Binocular package includes four 18650 batteries, wrist strap and charger.

Spec Sheet

Product Manual



Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

Specifications

Interpupillary Distance 60 mm to 74 mm
Safety Class for Laser Class 1
Palettes Black Hot, White Hot, Red Hot, Fusion
Dimensions 221×142×71 mm (8.7×5.6×2.8 in)
Infrared Illuminator Built-in 850nm Smart IR.Power and beam angle adjustment.
Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode Jungle, Recognition
Video Recording Yes
Audio Recording Yes
Magnification Thermal Channel – 3.0x – 24x / Optical Channel – 5.5x – 22x
Detector type Thermal Detector – 12μm VOx Uncooled Focal Plane Array / Digital Sensor – 3840×2160, 1/88” Progressive Scan CMOS
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Resolution 640 × 512
Laser Wavelength 905 nm
Detection Range (6′ object) 1,800 m
Snapshot Yes
Lens system Thermal Channel – 50 mm; F1.0 / Optical Channel – 60 mm, F2.2
NETD Less than 15 mK (25°C, F#=1.0)
Field of view (H × X) Thermal Channel – 8.7° × 7.0° / Optical Channel – 6.9° × 4.1°
Diopter adjustment range -5 to +3
Monitor 1920×1080, 0.49 inch, OLED, 50 FPS
Display Day, Night, Auto
Storage 64 GB EMMC
Battery Type Two 18650 rechargeable battery (removable)
Wi-Fi Yes
Battery Life (Operating) Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)
Power supply 5 VDC/2 A, USB Type-C interface. Supports external power supply.
Operating Temperature Range -20°C to 55°C (-4°F to 131°F)
Weight 0.91 kg (2.01 Ib)
Protection Level IP67 (Waterproof)

Features

AGM ObservIR LRF Features

  • Dual-spectrum thermal and digital day/night system
  • 12μm high-sensitivity thermal sensor
  • 640×512 thermal resolution
  • 3x – 24x thermal magnification
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof
