Description

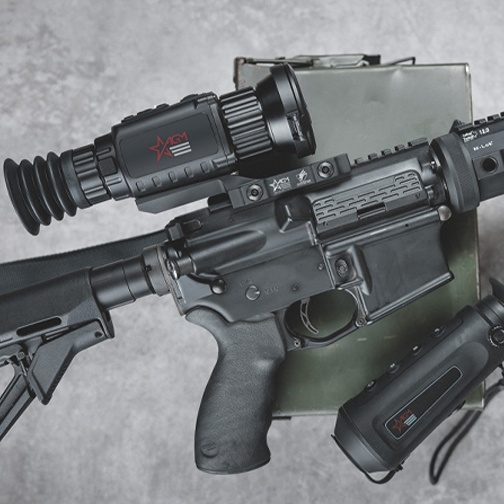

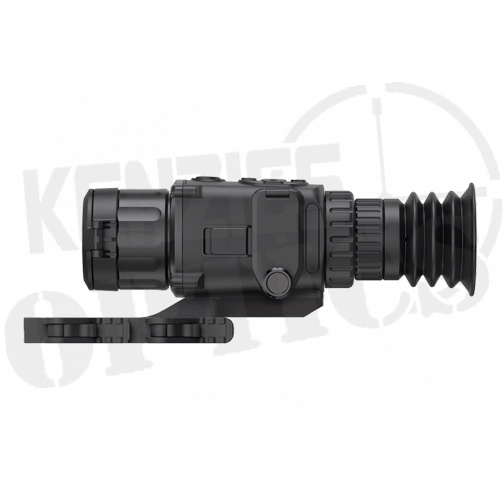

AGM Rattler TS50-640 Thermal Imaging Scope

The AGM Rattler TS50-640 Thermal Imaging Scope was designed as a compact and rugged scope that is developed for 24 hours operation under any weather and environmental conditions. It features a 50mm Germanium lens and 20x digital zoom that makes it the perfect unit for long range use. This thermal imaging scope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides a clear image under the harshest environment conditions.

It can be used as a thermal scope or handheld monocular, but is mainly applied to scenarios such as patrolling and hunting. Powered with two CR123 batteries the AGM Rattler gives up to 4.5 hours of continuous operation time. An external 5V power  bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard WiFi module for live video streaming and video/image recording via application is also available.

AGM Rattler TS50-640 Features

640×512 thermal resolution

12 μm, 35 mK NETD high sensitivity detector

Fast 50Hz imaging

1024×768 resolution, 0.39 inch OLED display

2.5x optical magnification

1x, 2x, 4x, 8x digital zoom

Digital image processing technology

Video recording and snapshot, built in EMMC (16 GB)

Various reticle types and colors

Stadiametric rangefinder

Adjustable color palettes

WiFi data transmission

Standby mode

Waterproof, shockproof

Up to 4.5 hours continuous working

External power supply capability

Limited 3 year warranty

Data Sheet

Package Includes

Lens Tissue

Operators Manual

Packing Box

USB Cable

Soft Carrying Case


Specifications

Palettes Black Hot

White Hot

Red Hot

Fusion

Reticle 5 types, 4 colors, on/off
Drop Test Height 1.5m

(4.9 feet)

Boresight Adjustment Digital Controlled
Boresight Increment 0.15 mil / 0.52 MOA
Distance Measurement Yes (Stadiametric Rangefinder)
Scene Mode Jungle, Recognition
Picture In Picture Mode (PIP) Yes (2× Zoom)
Video Recording Yes
Defective Pixels Correction (DPC) Yes
Uniformity Correction Auto, Manual, External Correction
Observation Distance 2,500 m
Detector Type 12μm, Uncooled, 50 Hz
Standby Mode Yes
Resolution 640 × 512
Lens System 50 mm; F/1.0
Optical Magnification 2.5x
Field of View (H × X) 8.8° × 7.0°
Digital Zoom 1×, 2×, 4×, 8×
Eye Relief 45 mm
Display 0.39 inch, OLED, 1024×768, 50 Hz
Storage Built in EMMC (16 GB)
Battery Type Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output Yes (via USB)
Battery Life (Operating) Up to 4.5 hr
External Power Supply 5 VDC/2 A, USB Type-C interface
Operating Temperature Range -20°C to +55°C

(-4°F to +131°F)

Degree of Protection IP67
Weight 480 g

( 1.06 lb)

Overall Dimensions 187 × 62 × 59 mm

(7.4 × 2.5 × 2.3 in)

Package Includes Thermal Imaging Rifle Scope

Mount

USB Cable

Lens Cloth

Manual


Export Restrictions

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
