AGM UNVG 3AL1 Gen 3 Auto-Gated Green Phosphor Night Vision Binoculars

Original price was: $9,299.00.Current price is: $8,795.00.

Only 1 left in stock

Fast & Free Shipping $199+

SKU: 12UN412941143111 Categories: , , Tags: , , , , , , Brand:

Description

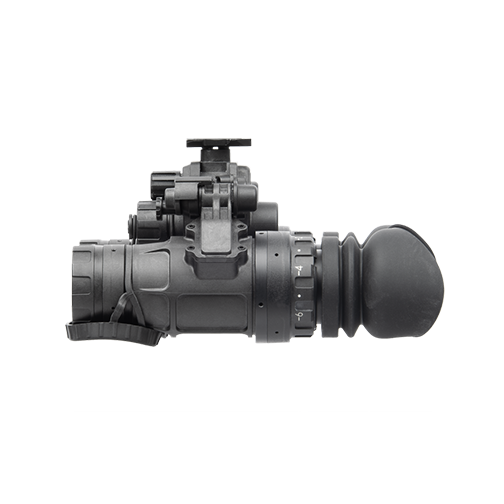

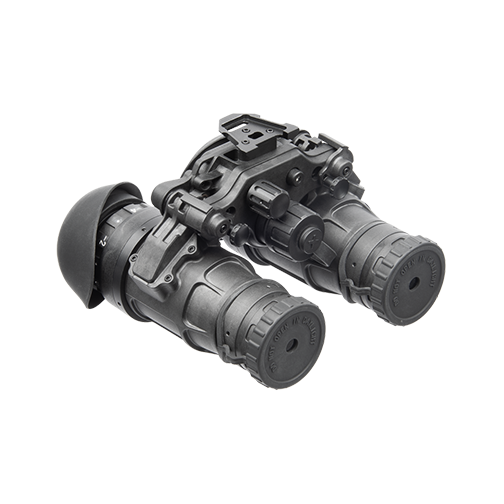

AGM UNVG 3AL1 Gen 3 Auto-Gated Green Phosphor Night Vision Binoculars

The AGM UNVG 3AL1 is a dual-channel night vision system. The AGM UNVG 3AL1 uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT).

The AGM UNVG 3AL1 is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The independent movement of the tube pods allows for single or dual eye configurations for increased operational flexibility.

Each tube automatically turns off when its pod is turned sideways. Operating from a single AA alkaline battery, the UNVG can run up to 15 hours. With an external battery pack (included), the operating time increases to 50 hours! Also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to an either standard dovetail type headset and helmet mount.

Warning: California’s Proposition 65

Specifications

  • Interpupillary Distance: 56 to 72 mm
  • Image Intensifier Tube: Gen 3 Auto-Gated “Level 1”
  • Resolution: 64-72 lp/mm
  • Field of view cleanness by zone: Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
  • Magnification: 1x
  • Lens System: 25mm, F/1.23
  • FOV: 40°
  • Focus Range: 0.25 m to Infinity
  • Eye Relief: 25 mm
  • Diopter Adjustment: -6 to +2 diopters
  • Infrared Illuminator: Yes
  • Manual Gain Control: Yes
  • Battery Type: One AA (1.5 V) or External Battery Pack (four AA or two CR123A)
  • Battery Life (Operating): One AA – up to 15 hours / External Battery Pack (four AA) – up to 50 hours / External Battery Pack (two CR123A) – up to 30 hours
  • Exit Pupil Diameter: 14 mm
  • Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
  • Storage Temperature Range: -50°C to +70°C (-58°F to +158°F)
  • Weight: (w/o battery) – Goggles: 500 g (1.1 lb) / External Battery Pack: 250 g (0.55 lb)
  • Overall Dimensions: Goggles: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in) / External Battery Pack: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in)

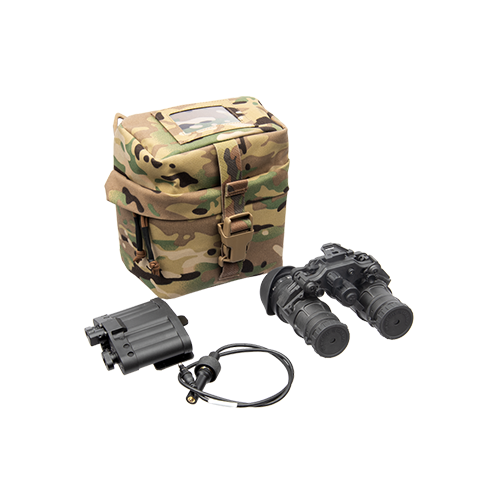

  • Package Includes: Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shield (2), Sacrificial Window (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery
  • Protection Level: IP67
