Description

EOTech Vudu 1-10×28 FFP Scope

The EOTech Vudu 1-10×28 FFP Scope was designed to provide the user with uncompromising targeting from extremely close to long range. It offers a robust 34mm, one piece aircraft aluminum tube and a single piece eyepiece that includes a removable throw lever from fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.


Specifications

Magnification 1-10x
Focal Plane First
Tube Diameter 34mm
Objective Diameter 28mm
Illuminated Yes
Battery Type CR2032
Overall Length 10.63” (270mm)
Weight 21.3 oz (603g)
Eye Relief 1X: 3.27-3.90” (83-99mm)

10X: 3.35-3.62” (85-92mm)

Field of View @ 100 Yards 1X: 116.6 ft (35.5m)

10X: 11.7 ft (3.6m)




Specifications

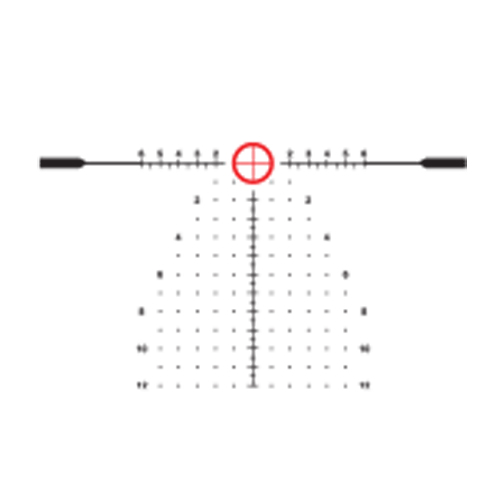

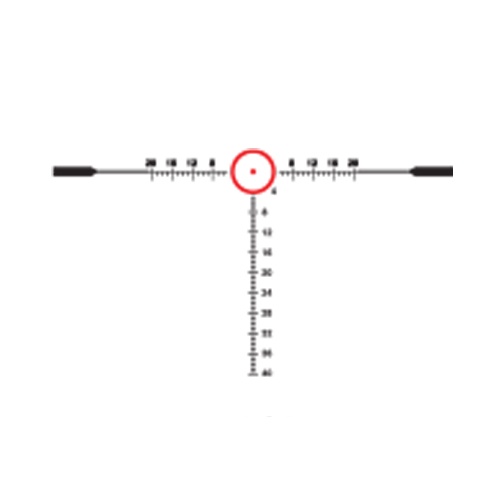

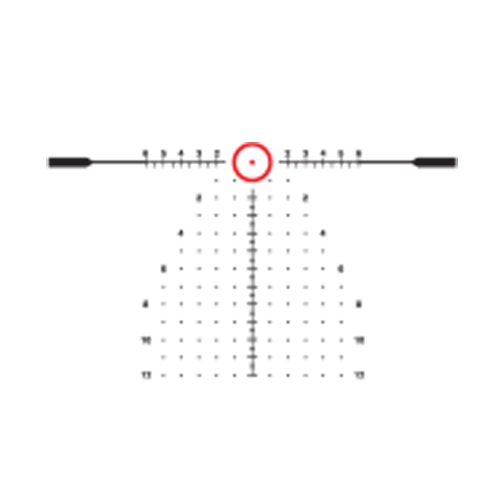

Reticle Specifications SR-4 SR-5 LE-5
Adjustment Graduation Per Click 0.25 MOA 0.1 MRAD 0.1 MRAD
Adjustment Graduation Per Rotation 40 MOA 15 MRAD 15 MRAD
Total Elevation Travel 100 MOA 29 MRAD 29 MRAD
Total Windage Travel 80 MOA 23 MRAD 23 MRAD
