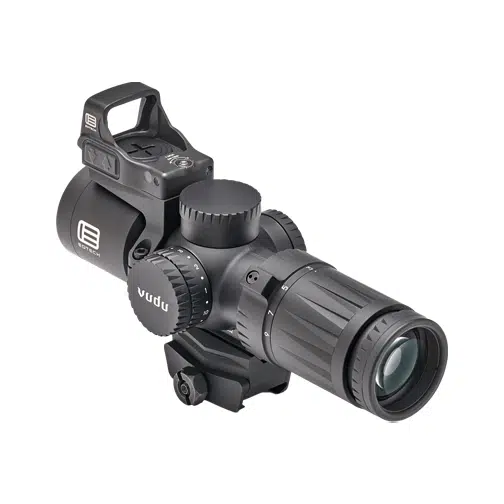

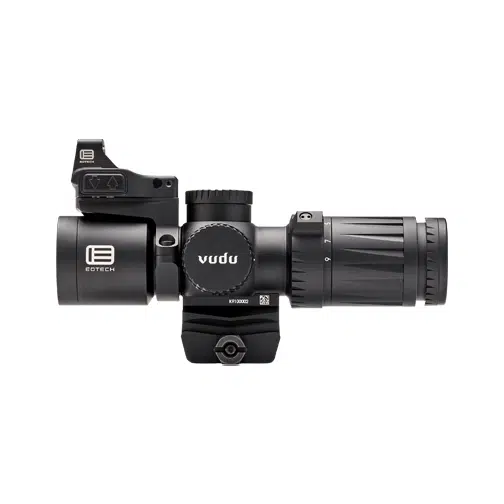

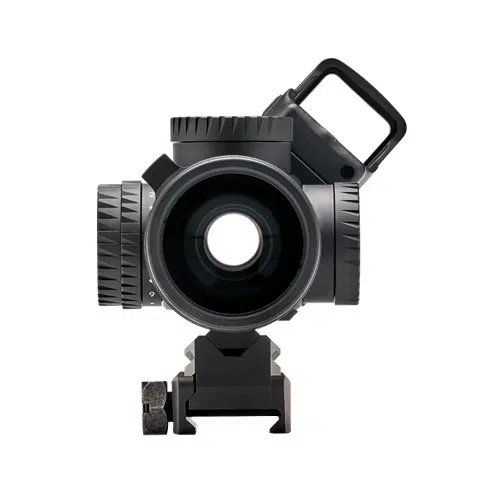

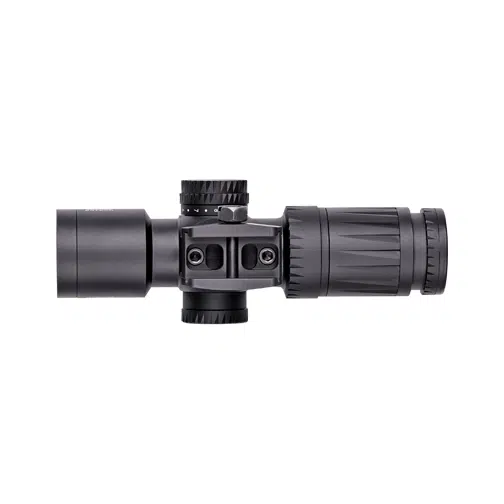

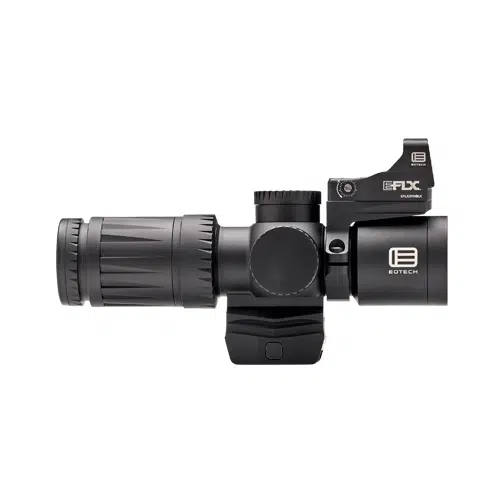

EOTech Vudu 3-9×32 SFP Riflescope Integrated Mount w/ EFLX – HC1 Reticle

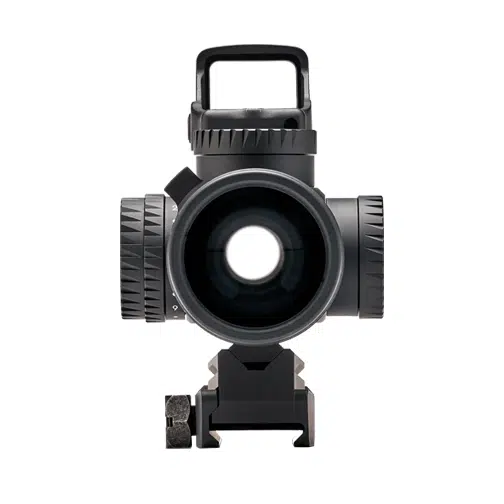

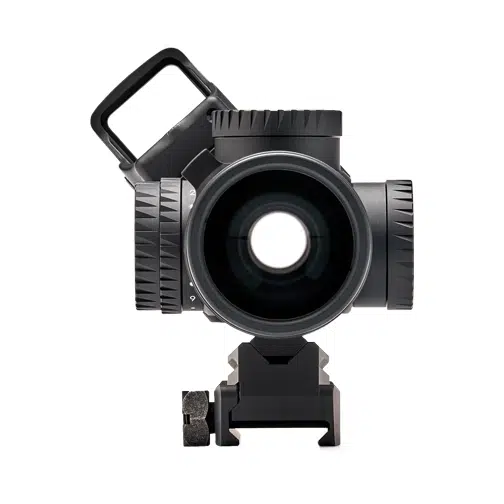

The EOTech Vudu 3-9×32 is second focal plane riflescope that is crafted from aircraft grade aluminum for lightweight durability. Measuring just 6.8″, it is fog, water, and shock resistant, with capped 1/4 MOA turrets. An illuminated reticle with 10 brightness settings run up to 300 hours on a CR2032 battery Its integrated base is compatible with mini-ACOG mounts. For added versatility, this version features a ring mount and EFLX sight that allows non-magnified targeting, mountable at the top or 45 degree angles for dynamic use.
EOTech Vudu 3-9×32 Features
Aircraft Grade
Aircraft grade aluminum, single piece construction with anodized finish for extreme durability. Laser etched adjustment indicators and push button illumination controls for tracking east. Water-resistant, fog resistant, shock resistant with single construction eyepiece.
Fog Resistant
Nitrogen gas purging prevents internal fogging over the operating temperature range.
Shock Resistant
The rugged design prevents damage from heavy recoil and rough handling.
Water Resistant
The single piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.
Anti-Reflective Lenses
XC high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge to edge clarity. Water resistant, fog resistant, shock resistant with single construction eyepiece.

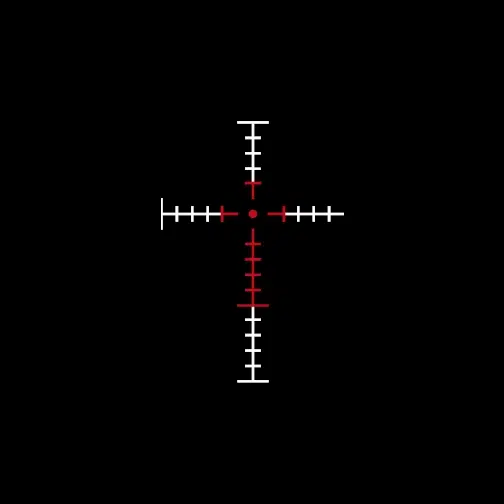

HC1 Reticle
The HC1 is a second focal plane MOA based hashmark reticle that was designed for the precision long range shooter. The non-illuminated crosshairs allow for elevation and windage correction, while the ultra small center aiming dot (0.15 MOA at 32x) provides the utmost accuracy. The HC1 is an excellent choice for precision long range shooting such as bench rest, F-class and small game dog hunting.
HC1 Reticle Specifications |
||||||
Adjustment Graduation Per Click | 0.25 | |||||
Adjustment Graduation Per Rotation | 30 | |||||
Total Elevation Travel | 90 | |||||
Total Windage Travel | 60 |
Reticle Dimensions |
||||||
Center Dot Diameter | 3.60 (3x)
1.20 (9x) |
|||||
Line Thickness | 1.20 (3x)
0.40 (9x) |
|||||
Space Between Hash Marks | 6.00 (3x)
2.00 (9x) |
|||||
Length of Short Hash Marks | 7.50 (3x)
2.50 (9x) |
|||||
Length of Long Hash Marks | 15.00 (3x)
5.00 (9x) |
Included in the Box
Vudu 3-9×32 SFP Riflescope
Integrated Mount
EFLX w/ Mount
Reticle Manual
Lens Cleaning Cloth
Battery
Specifications |
||||||
Overall Length | 6.8″ (172.7mm) | |||||
Height Above Bore | 1.56″ (39.7 mm) | |||||
Weight | 16 oz (454 g) | |||||
Magnification | 3-9x | |||||
Illuminated Reticle | Yes, HC1 | |||||
Objective Diameter | 32 mm | |||||
Power Source | CR2032 | |||||
Eye Relief | 3X: 2.5-3.1″ (64-81 mm)
9X: 2.3-3.1″ (59-79 mm) |
|||||
Field-of-View @ 100 Yards | 3X: 38 ft (11.6 m)
9X: 12.7 ft (3.9 m) |
|||||
Country of Origin | Made in Japan |
