EOTech Vudu 5-25x50mm Scope

The EOTech Vudu 5-25x50mm Scope features a first focal plane optic design allowing for quick, as well as accurate target ranging at all magnification levels. The exceptionally bright illuminated reticle will let you take that shot during the difficult low light hours of dawn and dusk. Whether you need an optic for hunting, competition, or a duty rifle, Vudu scopes will get the job done. All this at a more affordable price compared to other high quality first focal plane scopes.

The New Vudu 5-25 x 50 mm is ideal for the short platform rifles. At 11.2 inches in length, the 5-25x is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and also EOTECH’s EZ Check Zero Stop for quick adjustments and return to zero. One unique advantage of the short design is that it provides the ability to attach either a clip on night vision or thermal device in front of the scope and still allow the user to make adjustments to the device without leaving the scope.

EOTech Vudu 5-25x50mm Scope Features

Aircraft Grade

Aircraft grade aluminum, single piece construction with anodized finish for extreme durability. Laser etched adjustment indicators and push button illumination controls for tracking east. Water resistant, fog resistant, shock resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti Reflective Lenses

XC high density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge to edge clarity. Water resistant, fog resistant, shock resistant with single construction eyepiece.

Product Manual

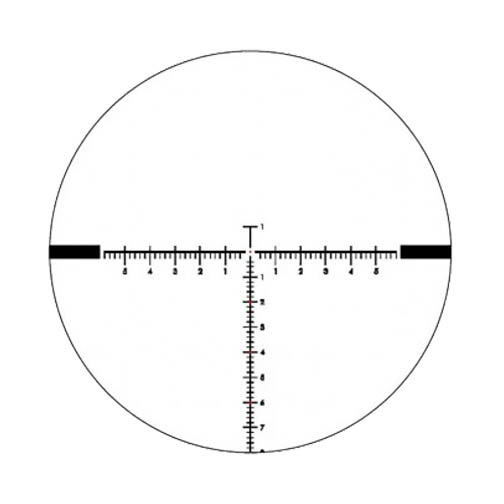

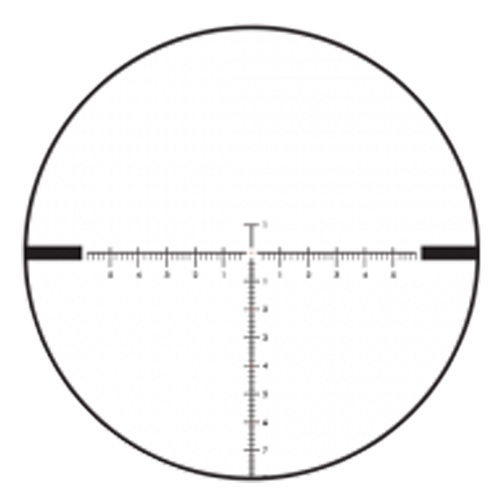

MD3 Reticle

The MD3 is a first focal plane MRAD based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long range accuracy.

Adjustment Graduation Per Click: 0.1 MRAD

Adjustment Graduation Per Rotation: 10 MRAD

Total Elevation Travel: 29 MRAD

Total Windage Travel: 23 MRAD

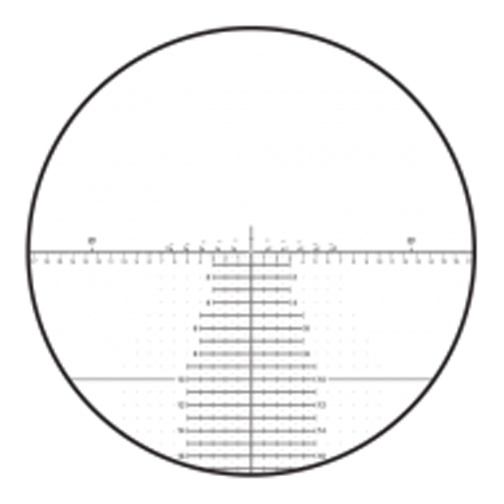

Horus H59 Reticle

The MRAD based H59 reticle features the popular horizontal and vertical grid pattern that allows for built in range finding, holdovers and wind compensation to maximize extreme range precision. The windage tree is also perfect for quick follow up corrections.

Adjustment Graduation Per Click: 0.1 MRAD

Adjustment Graduation Per Rotation: 10 MRAD

Total Elevation Travel: 29 MRAD

Total Windage Travel: 23 MRAD

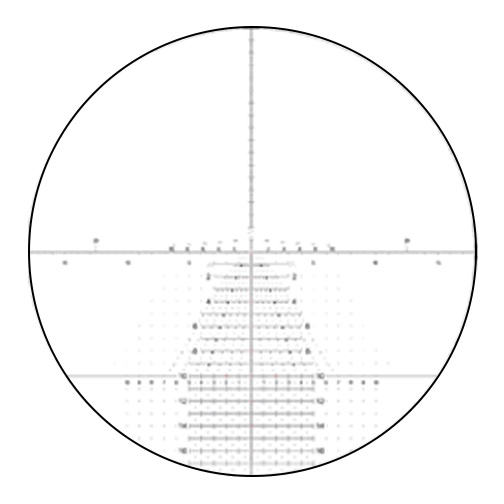

Horus TR3 Reticle

The TREMOR3 reticle is designed for speed and accuracy. It’s combines a patented feature that gives users the capability of quickly and accurately estimating target ranges and compensate for drop & wind. Additionally it provides the user wind speed and drop correction information for fast and accurate second shot corrections.

Adjustment Graduation Per Click: 0.1 MRAD

Adjustment Graduation Per Rotation: 10 MRAD

Total Elevation Travel: 29 MRAD

Total Windage Travel: 23 MRAD

MD4 Reticle

The MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25″ at 100 yards.

Adjustment Graduation Per Click: 0.25 MOA

Adjustment Graduation Per Rotation: 34 MOA

Total Elevation Travel: 100 MOA

Total Windage Travel: 80 MOA

Controlled under Export Administration Regulations (EAR); may not be exported without proper authorization by the U.S. Department of Commerce.
