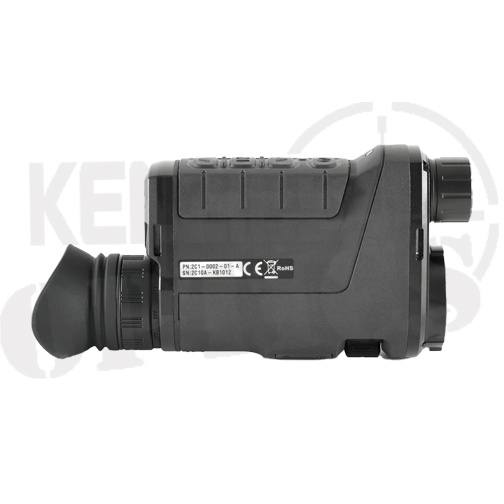

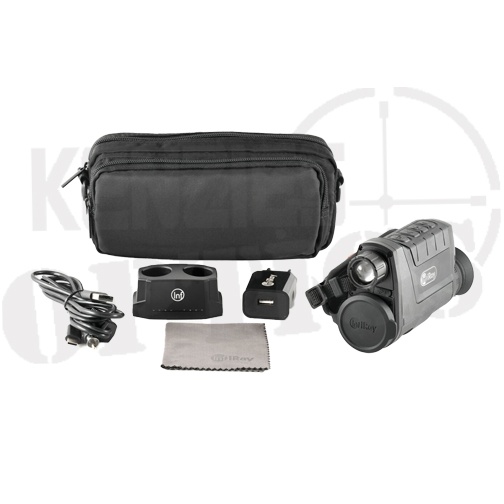

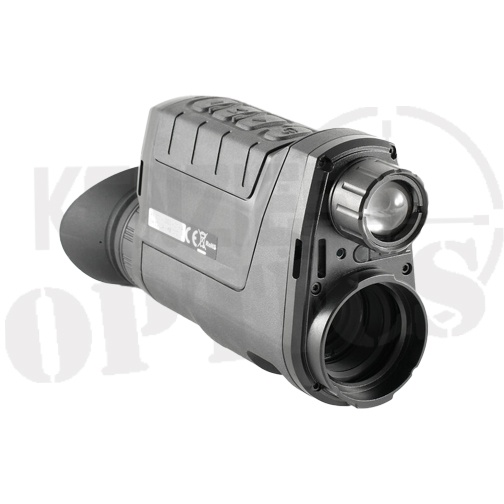

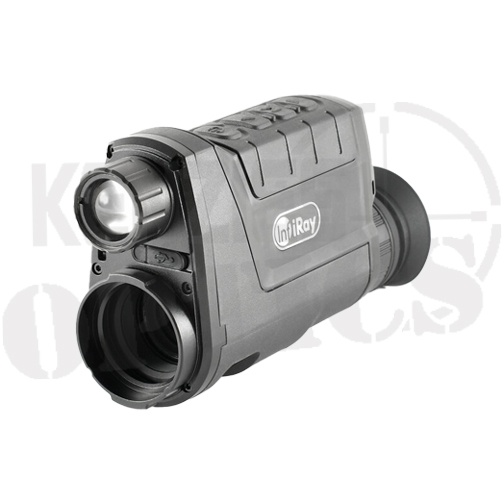

InfiRay Cabin CBL19 Thermal Monocular

The InfiRay Cabin CBL19 is a compact and powerful monocular with the ability to detect up to 1070 yards. It was designed so you can operate it easily with one hand and is available in multiple lens options. The 50Hz 12μm Micro II sensor features InfiRay’s next generation MATRIX III processing ensures an unmatched viewing experience on it’s HD display. Standard features of the Cabin Series includes a quick focus F/1.0 lens, stadiametric rangefinder, image and video capture, wireless connectivity, Picture in Picture and an LED flashlight to guarantee you to have everything you will need in the palm of your hand.

User Guide

Data Sheet


Specifications

Display Type LCOS (1280×960)
Onboard Recording Video (no audio)
Wifi Yes
Warranty 5-Years
Ingress Protection IP67
Image Capture Yes
Objective Focal Length 19mm
Optical Magnification 2X
Digital Magnification 4X
Detection Range 1070 yards
Eye Relief 20mm
Diopter Range -5 to +5
Connector Type USB-C
Objective F# 1.0
Startup Time 10 Seconds, Instant from Standby
Horizontal Angular Field of View 13.8°
Vertical Angular Field of View 10.4°
Housing Material ABS, Magnesium
Sensor Resolution 384×288
Sensor Pixel Size 12μm
Sensor Frame Rate 50Hz
Power Source Li-Ion Battery Pack (IBP-2), External USB-C
Operating Temperature Range -4°F-122°F
Run Time 6 hours on Li-Ion Battery Pack
Weight lb/gr 0.89lbs/403g
Length in/mm 6.5″/152mm
Width in/mm 2″/51mm
Height in/mm 3.3″/84mm






More Thermal Imaging



Additional information

Weight .89 lbs
