Description
INFITAC FMP13 Mini Thermal Sight
The INFITAC FMP13 Mini Thermal Sight is an ultra-compact thermal optic designed to deliver thermal imaging performance in a lightweight package. Featuring a 256×192 thermal sensor, 60Hz refresh rate, 13mm F1.0 lens, and 1.4-inch 360×300 display, the INFITAC FMP13 Mini Thermal Sight provides a responsive thermal viewing experience while maintaining a compact footprint.
Weighing approximately 4 ounces, the FMP13 is designed for applications where size and weight are important. Its rugged IP67-rated construction and ability to withstand up to 1200g of recoil make it suitable for demanding environments.
The FMP13 features a standard RMR footprint for compatible pistol mounting applications and can also be configured for rifle use with optional mounting solutions. Available configurations include Picatinny rail, 30mm ring, 45° offset, and Aimpoint Acro mounts, providing flexibility for different optic setups.
Key Features
- 256×192 thermal sensor with 12μm pixel pitch
- 60Hz refresh rate for smooth thermal imaging
- 13mm F1.0 objective lens
- 1.4-inch 360×300 display
- 0.5× base magnification
- 1× and 2× digital zoom
- 13.5° × 10.1° field of view
- Standard RMR footprint
- Optional mounting solutions for multiple pistol and rifle configurations
- Touchscreen controls with physical button operation
- Multiple reticle options
- Automatic brightness adjustment
- Multiple thermal color palettes
- IP67-rated waterproof construction
- Rated for up to 1200g of recoil
- Approximately 4 oz (113g)
- CR2 battery with up to 5 hours of operation
- USB-C external power capability
Thermal Imaging Performance
The INFITAC FMP13 uses a 256×192 thermal sensor with a 13mm F1.0 lens to provide thermal imaging in a compact package. The 60Hz refresh rate helps provide a responsive viewing experience, while the 1.4-inch 360×300 display presents the thermal image through a compact viewing window.
The FMP13 also offers multiple thermal color palettes, including White Hot, Black Hot, Red Hot, and Rainbow, allowing users to select the display presentation that best suits their viewing conditions.
Compact and Lightweight Design
At approximately 4 ounces, the FMP13 is designed for users who want thermal capability without adding substantial weight or bulk to their setup. The compact housing measures approximately 2 × 1.5 × 1.7 inches, making it particularly well suited to applications where available mounting space is limited.
Mounting & Compatibility
The INFITAC FMP13 features a standard RMR footprint for compatible pistol mounting applications. INFITAC also offers optional adapters for additional pistol footprints, including RMSc, DPP, and Glock MOS configurations.
For rifle applications, optional mounting solutions include:
- Picatinny rail mount
- 30mm ring mount
- 45° offset mount
- Aimpoint Acro mount
These mounting options allow the FMP13 to be configured as a compact thermal optic alongside other sighting systems.
Important: Mounting compatibility depends on the specific firearm, optic footprint, and mount being used. Verify the required footprint and mounting hardware before purchasing.
Durability & Environmental Protection
The FMP13 is built for demanding conditions with an IP67 rating and a recoil rating of up to 1200g. Its operating temperature range is approximately -4°F to 122°F (-20°C to 50°C).
Battery & Runtime
The FMP13 operates on a CR2 battery and provides up to approximately 5 hours of operation under the manufacturer’s specified conditions. The optic also supports USB-C external power at 5V, providing an additional power option when appropriate.
INFITAC FMP13 Specifications
| Specification | Details |
|---|---|
| Model | FMP13 |
| Series | Fast Mini |
| Thermal Resolution | 256×192 |
| Pixel Pitch | 12μm |
| Objective Lens | 13mm F1.0 |
| NETD | ≤25mK |
| Refresh Rate | 60Hz |
| Magnification | 0.5× |
| Digital Zoom | 1× / 2× |
| Field of View | 13.5° × 10.1° |
| Focus Range | 2 yards to infinity |
| Display | 1.4-inch 360×300 |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow |
| Battery | CR2 |
| Battery Life | Up to 5 hours |
| External Power | USB-C, 5V |
| Footprint | Standard RMR |
| IP Rating | IP67 |
| Recoil Rating | Up to 1200g |
| Operating Temperature | -4°F to 122°F |
| Weight | Approx. 4 oz / 113g |
| Dimensions | Approx. 2 × 1.5 × 1.7 in |
| Material | AL7075-T6 |
Specifications are based on current manufacturer-published information.

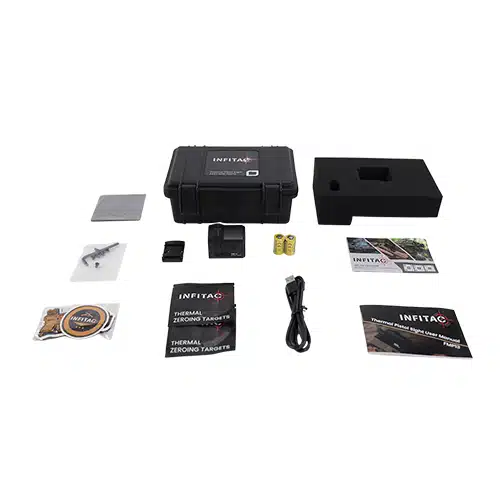

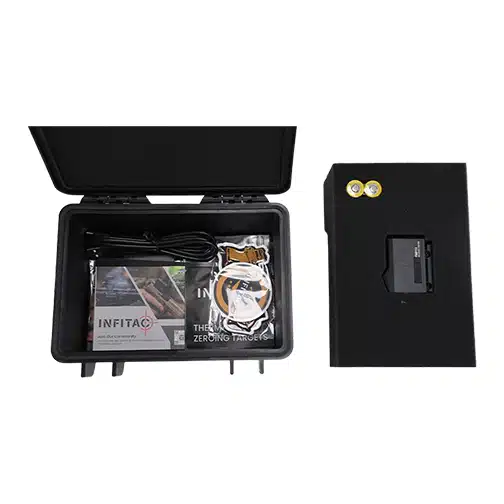

What’s Included
The INFITAC FMP13 package includes:
- FMP13 Thermal Sight
- RMR pistol adapter
- Mounting screws and tool
- Two heated targets for zeroing
- Two CR2 batteries
- USB-C cable
- Lens cloth
- INFITAC branded accessories
- User manual
- Warranty card
Product Manual & Firmware
Why Choose the INFITAC FMP13?
The INFITAC FMP13 combines compact size, low weight, thermal imaging capability, flexible mounting options, and rugged construction into a single optic. Its 256×192 sensor, 60Hz refresh rate, 13mm F1.0 lens, and multiple mounting configurations make it a versatile choice for users looking for a compact thermal sight.
