Description

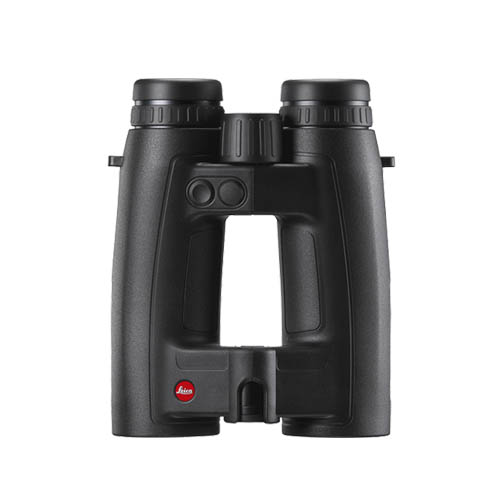

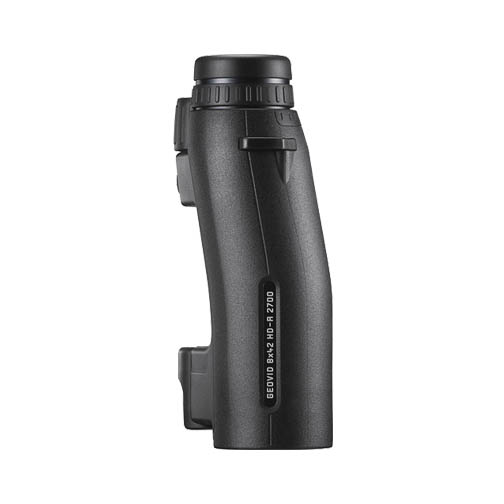

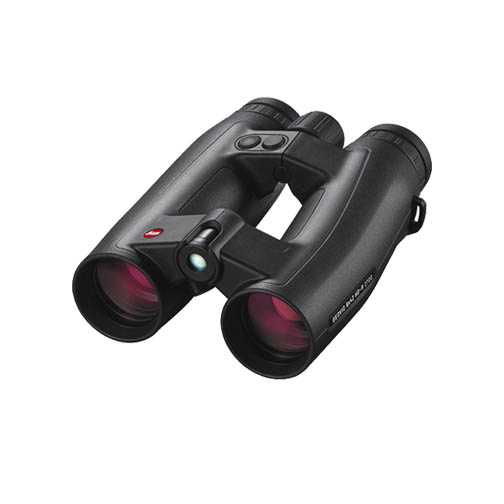

Leica Geovid 8×42 HD-R 2700 Rangefinder Binoculars

The Leica Geovid 8×42 HD-R 2700 Rangefinder Binoculars combines ergonomic design, razor sharp, high contrast images with reliable rangefinding technology. The Geovid HD-R 2700 guarantees easy and intuitive operations. The Equivalent Horizontal Range (EHR) output requires no pre programming. The EHR gives the user greater safety and flexibility in steep terrain. Leica’s own algorithm takes into account not only the linear distance and angle but also a realistic ballistic trajectory, making it much more accurate than the cosine function known as the Rifleman’s Rule. The result is a highly precise calculation of the EHR at a ballistic function range of 1,200 yds / 1,100 m.

At angle shots within a range of 10 to 1,100 meters the ballistic function (EHR) calculates the relevant shooting distance from the hunter to the targeted animal. Along with linear distance and angle, the algorithm developed by Leica always takes into account a realistic ballistic curve. It also includes barometric pressure and temperature for fast, precise and easy calculation of the right point of aim in the mountains.

Leica Geovid 8×42 HD-R 2700 Rangefinder Binoculars Features

Open Ergonomic Bridge for a natural hold and intuitive operation

Integrated laser rangefinder with a range of 2,200 yds / 2,000 m

Output of linear and equivalent horizontal distance (EHR) of 2,700 yds / 2,500 m; displayed at the push of a button

Air pressure and temperature sensors for increased precision

Water and dirt repellent Aqua Dura coating


Specifications

Package Includes Contoured neoprene carrying strap, front lens caps, eyepiece caps, battery, Cordura case
Magnification 8x
Front Lens Diameter 42 mm
Exit pupil 5.2 mm
Twilight factor 18.3
Field of View 426 ft (130 m)
Close Focus Range Approx. 16.5 ft (5.0 m)
Dioptric Correction ±4
Distance Measurement (Range) 10 yds to approx. 2,700 yds  (10 m to approx. 2,500 m)
Equivalent Horizontal Range (EHR) 10 yds to 1,200 yds (10 m to 1,100 m)
Measuring Accuracy 0,5 yds at 10 to 200 yds  (± 0,5 m at 10 to 200 m)

± 1 yds at 200 to 400 yds (± 1 m at 200 to 400 m)

0,5 % beyond 400 yds (± 0,5 % beyond 400 m)

Display LED display with 4 characters and ambient light controlled brightness
Eyecup with twist and pull action Yes, detachable, with 4 click stops
Focus Type Internal focusing with center focusing barrel
Prism system Perger Porro System
Coating HDC multicoating, Aqua Dura lens coating
Waterproof Waterproof to 16.5 ft (5 m)
Body Magnesium, nitrogren filled
Dimensions 4.9 x 7.0 x 2.8 in (125 x 178 x 70 mm)
Weight Approx. 34.3oz (975 g) incl. battery
Yard or Meter Switch Yes, detachable, with 4 click stops
Laser Eye safe, invisible light laser compliant with EN and FDA Class 1
Measuring Mode Scan mode, single measurement
Power Supply CR2 lithium battery
Battery Life Approx. 2,000 measurements at 68° F (20°C)
Accessories Tripod adapter (42 220) floating carrying strap (42 163)

Additional information

Weight 2.1 lbs
