Description

Nightforce ATACR 4-16x42mm F1

If you need something compact yet powerful, the ATACR 4-16×42 F1 delivers. The fully multi-coated ED glass lenses within are stunning. Adjustments are standard with the Nightforce low profile ZeroHold feature, and available in .1 Mrad (12 Mils per revolution) or .25 MOA (30 MOA per revolution) increments. A capped windage adjustment helps prevent accidental adjustment in the field. The parallax adjustment is marked with approximate numbered distances and is coupled with DigIllum digital reticle illumination. The eyepiece features enhanced engraving, an integrated Power Throw Lever (PTL) and an XtremeSpeed thread for making a fast diopter adjustment. All of these features are paired with intelligent, Nightforce F1, first focal plane, reticles that provide for fast hold-off adjustments and precise ranging calculations.

Inspired by the NXS, designed from the ground up, the ATACR Advanced Tactical Scope family defines Rugged, Reliable, Repeatable. Incorporating Nightforce’s proprietary optical prescription in a built like a tank housing, every ATACR scope delivers benchrest precision even under the harshest of conditions. Fully multi-coated ED glass results in superb light transmission, brilliant images and exceptional color contrast. The scope is available in a variety of reticle options.


Specifications

Focal Plane First
Magnification Range 4 – 16x
Objective Lens Diameter 42 mm
Tube Diameter 34mm (1.34 in)
Internal Adjustment Range MOA e: 89 MOA

w: 60 MOA

Internal Adjustment Range Mil e: 26 Mil
w: 18 Mil
Click Value .250 MOA
.1 Mil-rad
Calibrated Ranging Power N/A
Parallax Adjustment 45 yd – ∞
Exit Pupil Diameter 4x:10.3 mm
16x:2.7 mm
Eye Relief 85-90 mm
3.35-3.54 in
Field of View @100 yards 4x: 26.9 ft
16x: 6.9 ft
Field of View @100 meters 4x: 8.1 m
16x: 2.1 m
Objective Outer Diameter 50 mm
Eyepiece Outer Diameter 45 mm
Overall Length (inches/mm) 12.6 in (320 mm)
Weight (ounces/grams) 30 oz (850 g)
Mounting Length (inches/mm) 6.3 in (160 mm)
Front/Rear Mounting Length 2.00 in
2.53 in
Power Throw Lever Standard
Reticles Available MOAR

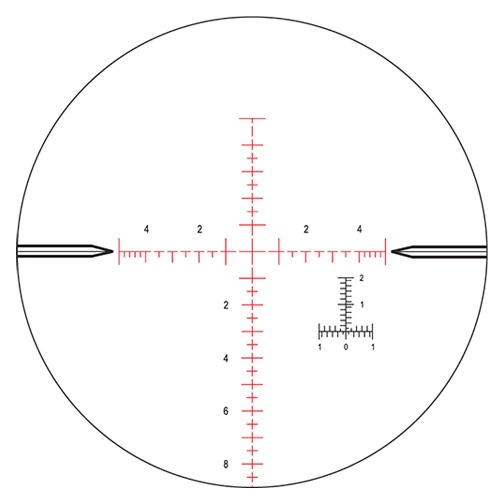

MIL-R

MIL-C

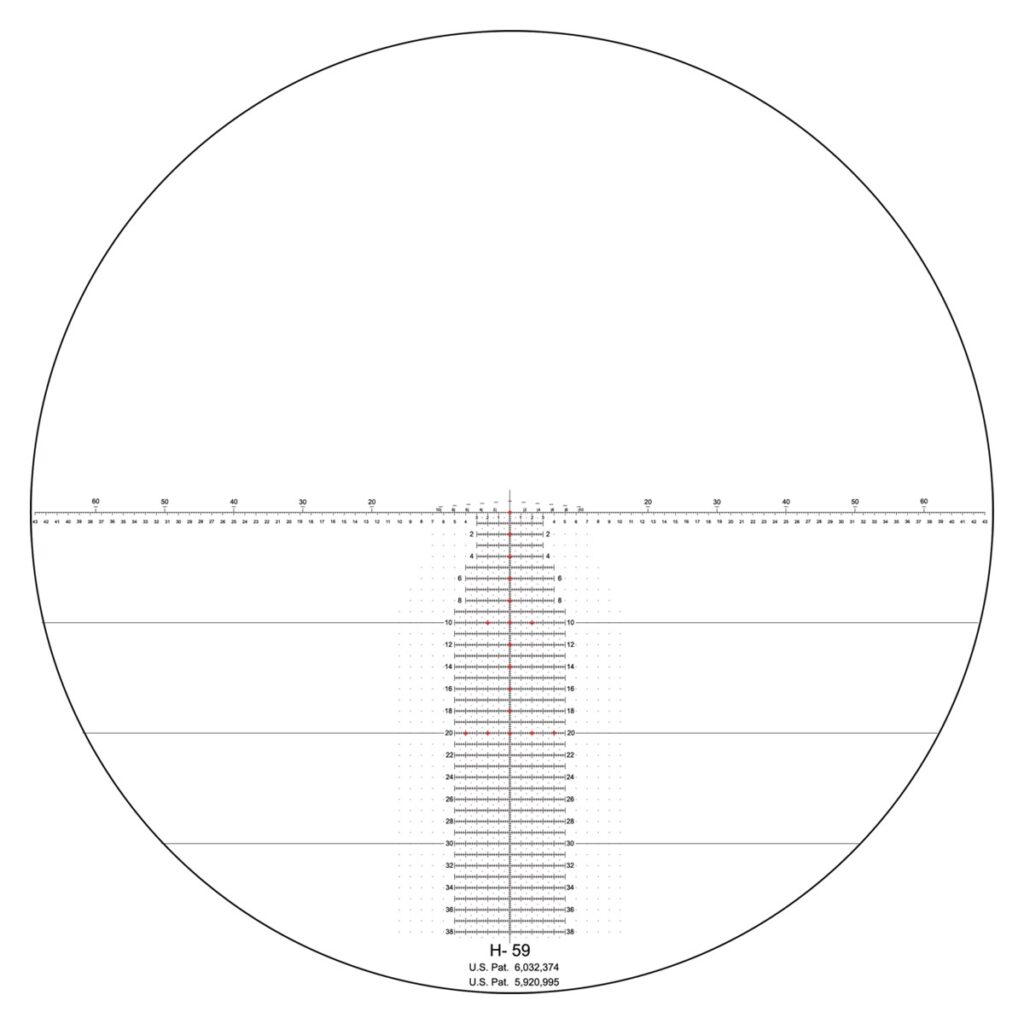

H59

TReMoR3

MIL-XT

Illumination Digillum
Elevation Feature ZeroStop
