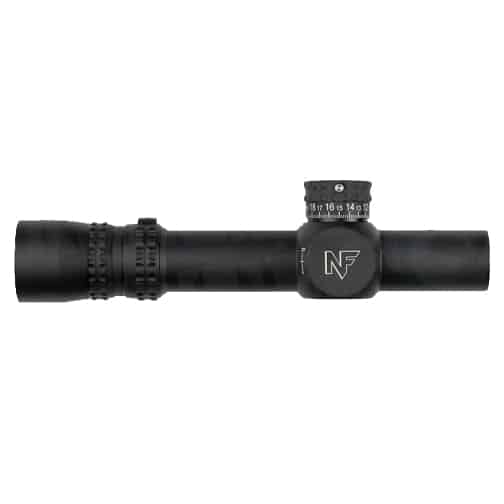

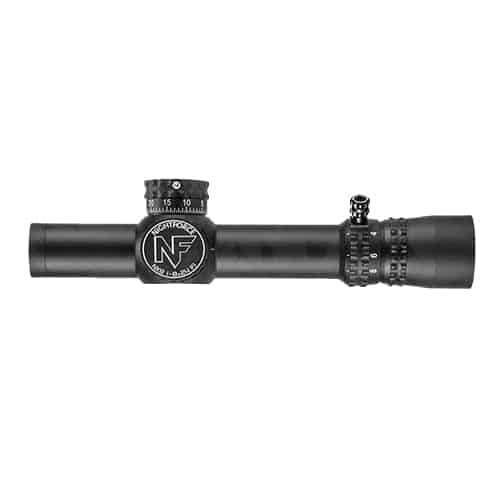

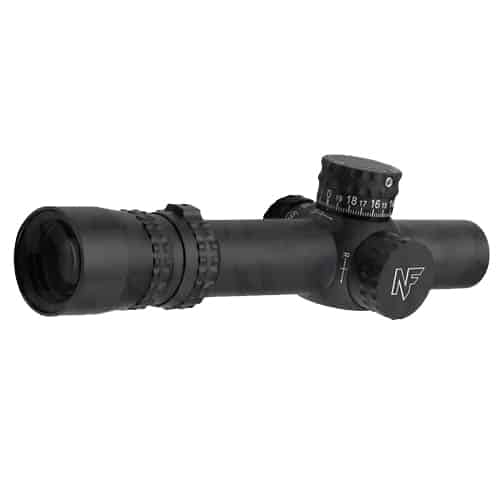

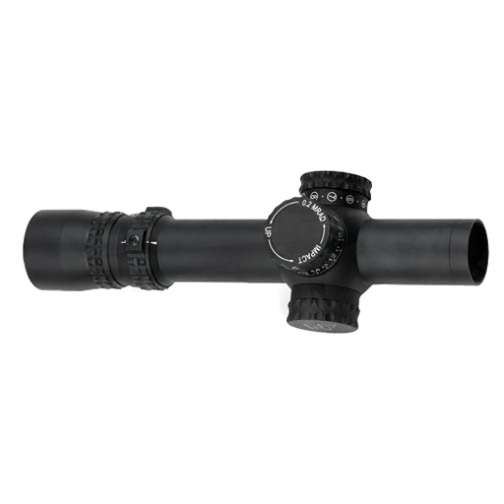

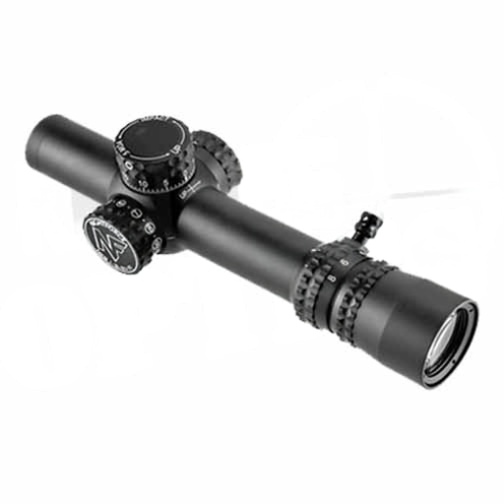

Nightforce NX8 1-8x24mm F1 Scope

The Nightforce NX8 1-8 offers a daylight visible center dot so users can engage targets as fast as a red dot. With advanced first focal plane reticles, the intelligent FC-Mil provides precise hold points. If you prefer to dial long shots, the Nightforce NX8 1-8 has the ZeroStop elevation adjustment feature that can give a rapid and positive return to zero. Each NX8 model has true .2 Mil-Radian adjustments. They are equipped with a built-in Power Throw Lever (PTL) to help aid in fast magnification adjustments.

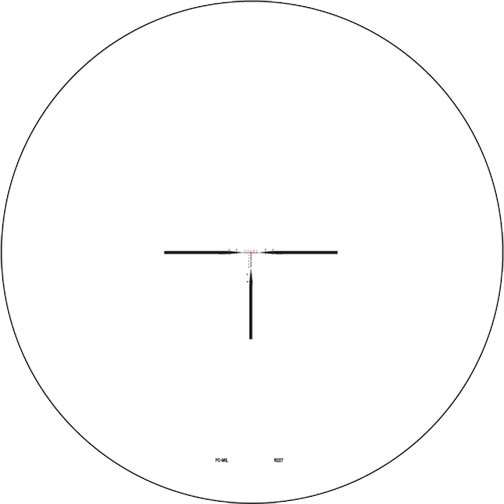

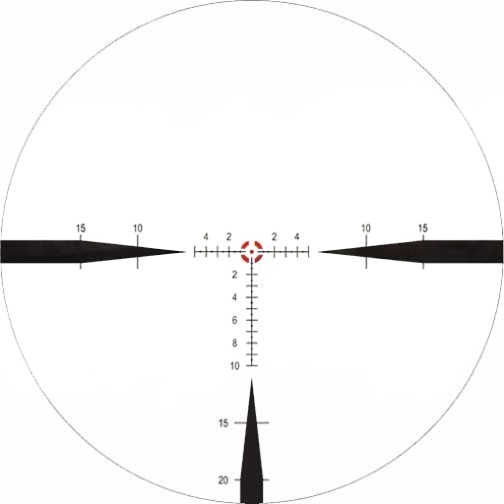

FC-Mil Reticle

Nightforce created the FC-Mil Reticle to optimized the ability of low-power variable scopes (LPVO). As first focal plane reticles, elevation and windage markings are valid at every magnification setting, providing precise hold and reference points. At low power, the bright daylight center dot and segmented circle are visible under the harshest light, allowing fast, accurate target acquisition.

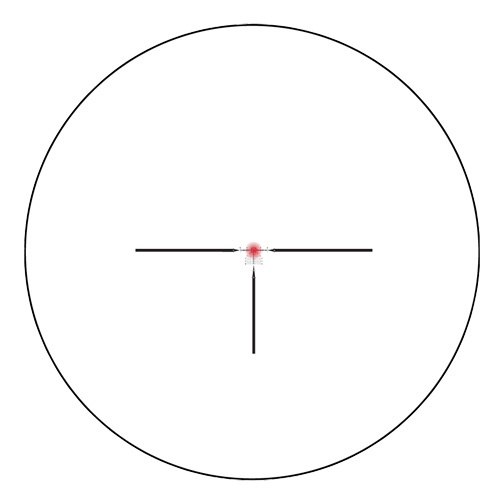

FC-MOA Reticle

The FC-MOA Reticle Created and optimized for low-power variable riflescopes. As first focal plane reticles, elevation and windage markings are valid at every magnification setting, providing precise hold and reference points. At low power, the bright daylight center dot and segmented circle are visible under the harshest light, allowing fast, accurate target acquisition.


Specifications

Focal Plane First
Magnification Range 1-8x
Objective Lens Diameter 24mm
Tube Diameter 30mm
Internal Adjustment Range Mil e: 30Mil
w: 30Mil
Click Value .20Mil
Calibrated Ranging Power N/A
Parallax Adjustment Fixed @ 125m
Exit Pupil Diameter 1x: 7.9mm
8x: 3.0mm
Eye Relief 95.3mm
(3.75in)
FOV @ 100 Meters 1x: 35.3m
8x: 4.4m
FOV @ 100 Yards 1x: 106ft
8x: 13.2ft
Objective Outer Diameter 1.18in
Eyepiece Outer Diameter 1.57in
Overall Length 8.75in
Weight 17oz
Mounting Length 5.67 in
Front/Rear Mounting Length Fr 1.7in
Rr 2.3in
Power Throw Lever Standard
Reticles Available FC-MOA
FC-Mil
Illumination Daylight
Visible
Adjustable
Elevation Feature ZeroStop
