Description

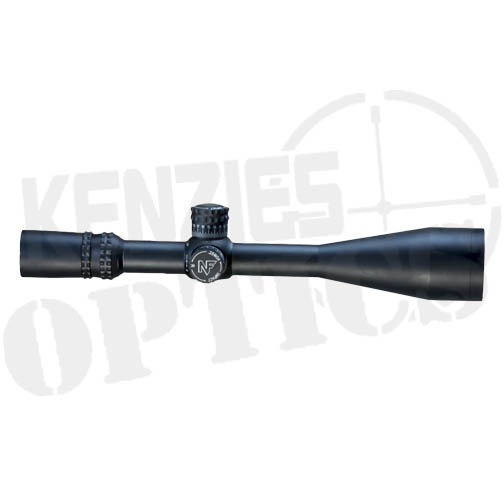

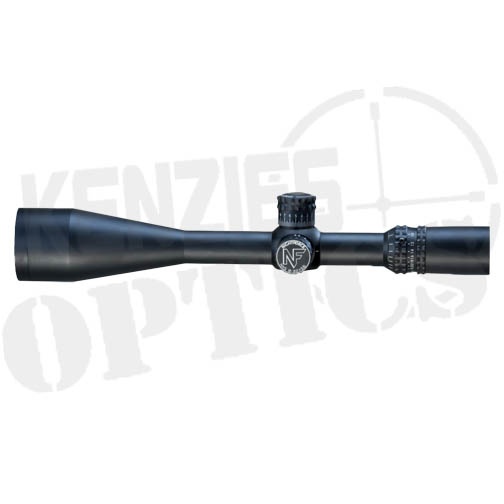

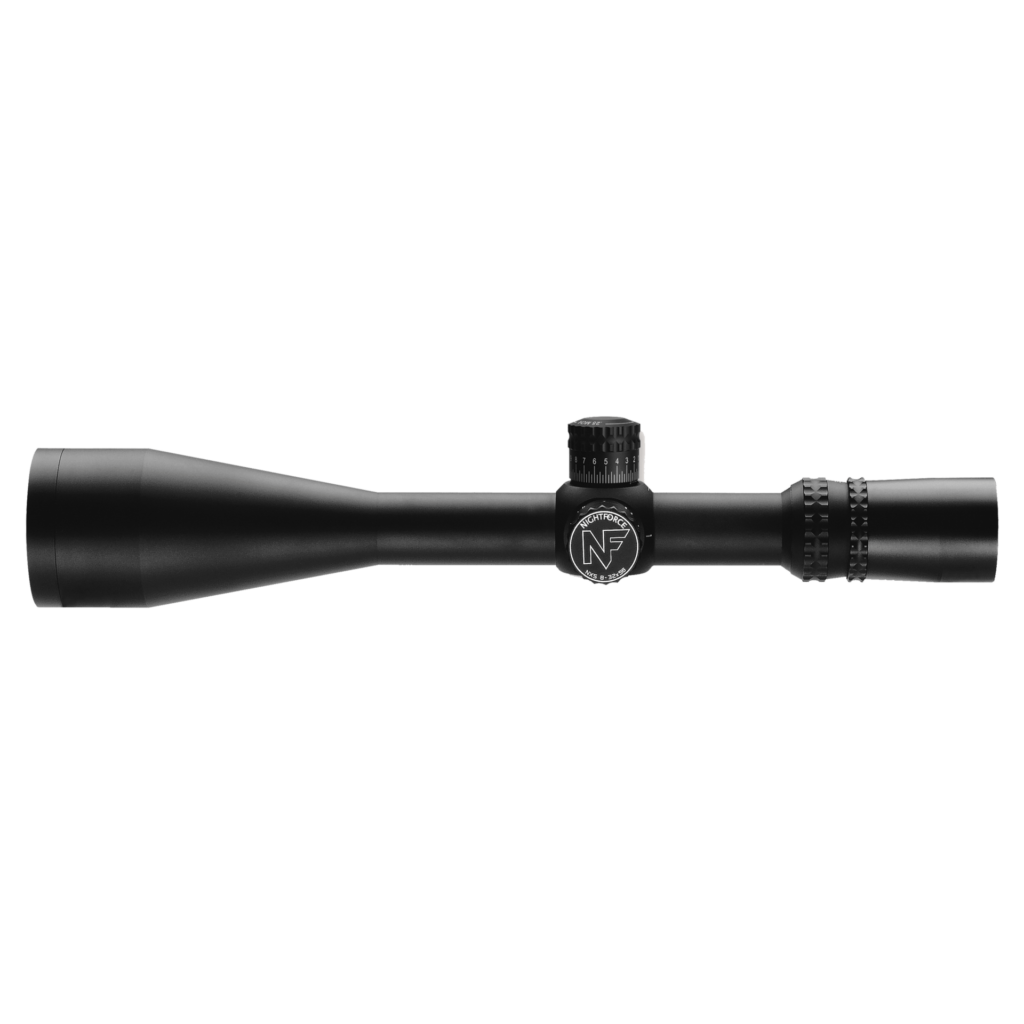

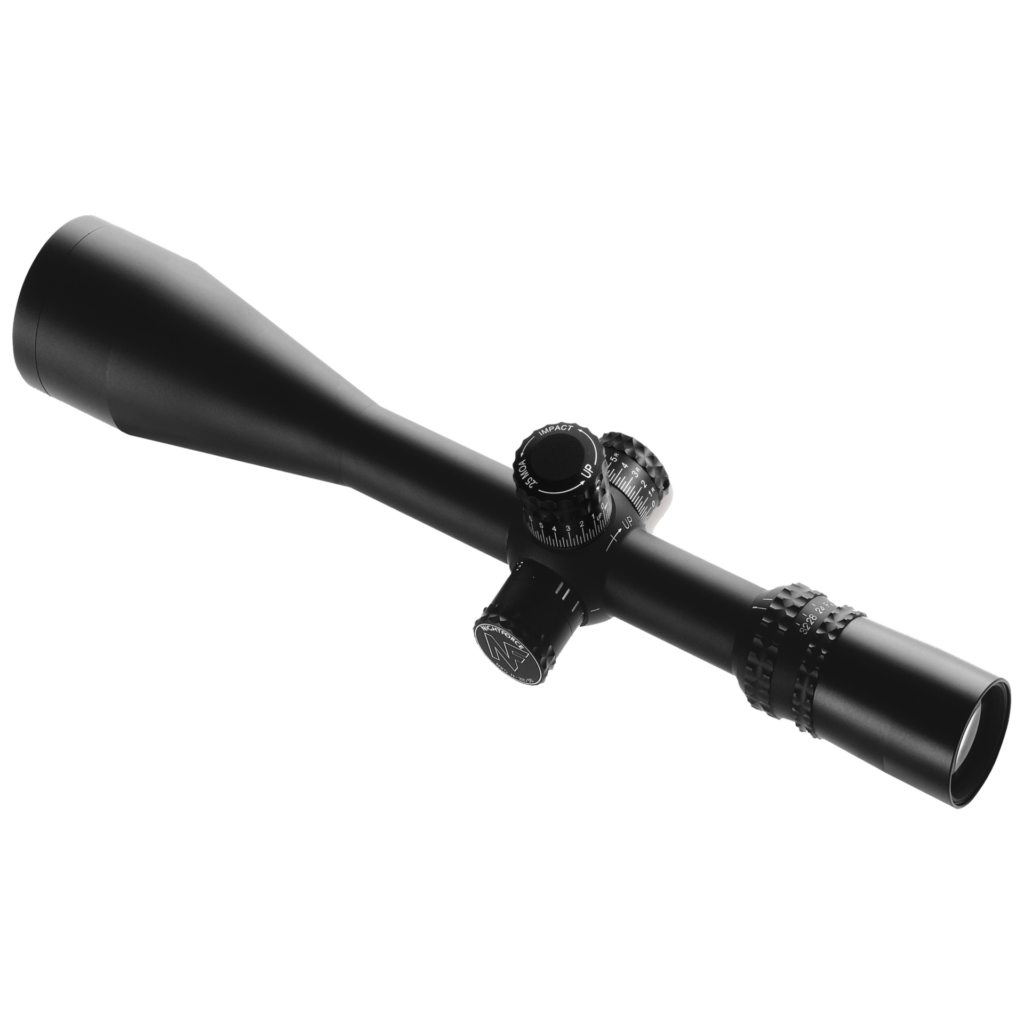

Nightforce NXS 8-32x56mm Scope

The Nightforce NXS 8-32x56mm is the ultimate long range field and target scope. It evolved from Nightforce’s tactical line, and offers fast adjustments for precise, repeatable shot placement. The broad magnification range means there is now virtually no target outside the capable user’s reach, while it remains highly versatile and appropriate to a wide variety of applications.

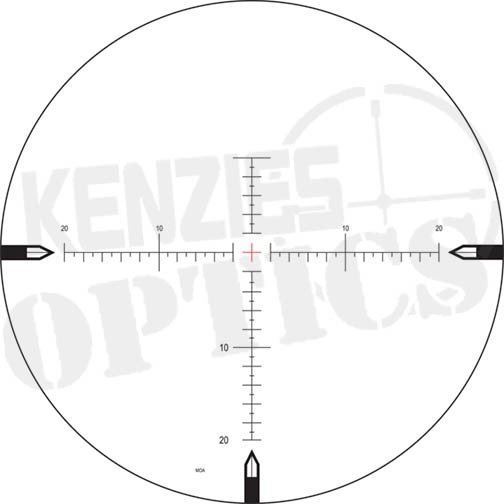

MOAR – 20 MOA Reticle

The Nightforce MOAR reticle is a major advancement in precision shooting. a floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets at longer ranges. One-MOA elevation and windage spacing provide for more accurate range finding and hold offs compared to ordinary reticles with coarser markings.

The Nightforce MOAR has thicker line subtensions than the traditional reticles, and is marked with 10, 20 and 30 MOA elevation indicators (10 and 20 MOA windage indicators), making it extremely fast and easy to view under field conditions.

The MOAR design is more intuitive, easier to see in low light and more visible against dark backgrounds and
in shadows than other MOA reticles. Shooters will also find the 3, 6 and 9 o’clock posts to be an excellent asset for greater speed and target acquisition.

The MOAR has established new levels of precision and ease of use for the long range shooter.

MOAR-T Reticle

Nightforce customers asked for a finer version of the MOAR reticle for even more precision at extreme ranges, and the new MOAR-T delivers. .0625 MOA lines, with 1 MOA elevation and windage markings. Allows accurate rangefinding and holdover estimation at the longest distances. Center Illumination only. The elevation and windage marks can be used for ranging objects when the size of the target is known. Bracket the target from top to bottom or side to side within the marks. Distance to target can then be determined using this formula:

Target size in inches ÷ moa x 100 = range in yards.

Please note that accurate rangefinding with the MOAR reticle can only be accomplished at the power settings shown above.

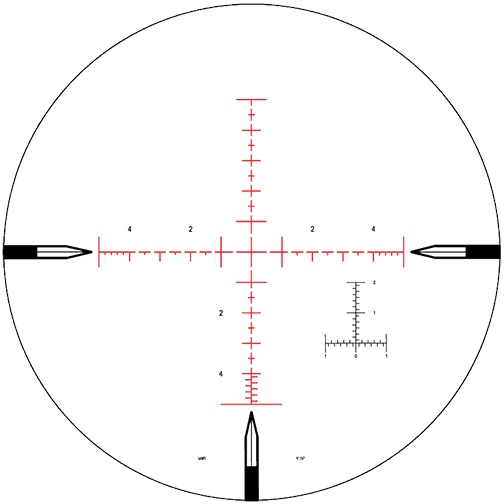

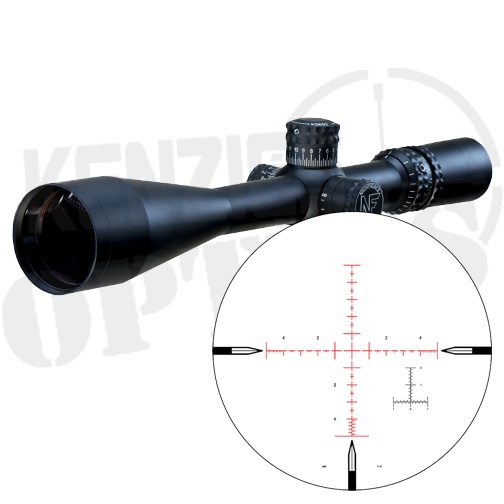

MIL-R – 5 Mils Reticle

Precise Mil-Radian ranging, accurate hold offs, on the money first shot placement and quick follow up shots on either still or moving targets are the results with the Nightforce MIL-RTM reticle.

Everything about it is designed to be fast and intuitive. The clean, uncluttered floating center crosshair is precisely 1.0 Mil, supported by whole, half, .2 and .1 Mil-Radian graduations.

Numerical indicators provide quick reference to Mil-Radian spacing under stressful conditions. The spaces between the whole Mil-Radian graduations provide accurate ranging and hold off references in much finer, more precise increments than coarser, less intelligent reticles. The shooter can also easily distinguish between whole and half Mils.

Unique to the MIL-RTM is the inverted “T” Mil-Radian ranging scale. This allows the shooter to easily and logically reference zero to whole Mil-Radians in .2 and .1 Mil- Radian markings.

It’s fast, precise and smart. Almost as smart as the shooter who uses it.

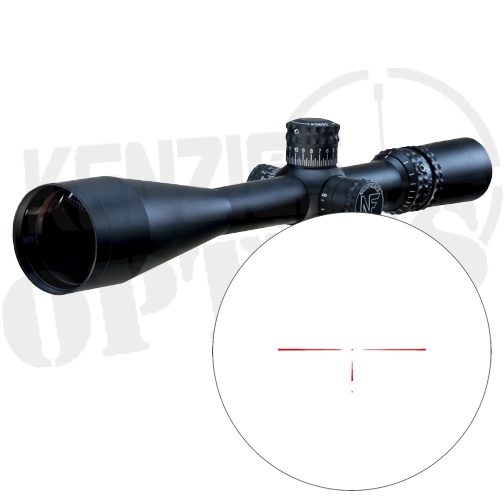

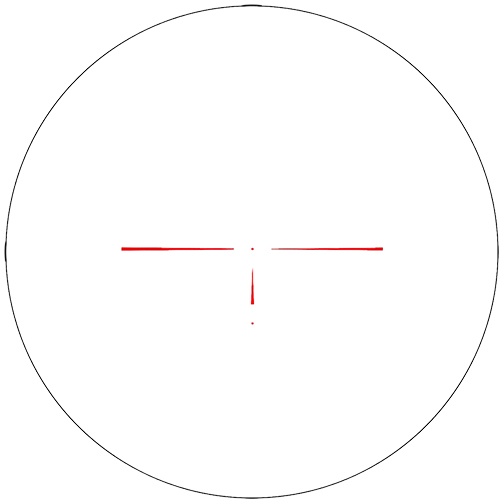

NP-2DD Reticle

Unobstructed field of view and precise MOA reference markings serve the predator hunter and benchrest competitor equally well. Simple and effective at close and long ranges.


What’s in the Box

Rubber Lens Covers

Cleaning Fob/ Cleaning Cloth

Multi-Tool

Power Throw Lever or Similar

Stickers

Sunshade

Users Manual


Specifications

Magnification Range 8-32x
Focal Plane Second Focal Plane (F2/SFP)
Body Tube Diameter 30mm
Overall Length 15.9 in

(404 mm)

Mounting Length 6.7 in

(170 mm)

Weight 34.0 oz

(964 g)

Click Value .250 MOA
Internal Adjustment Range E: 62 MOA

W: 42 MOA

Parallax Adjustment 50 yd–∞
Eye Relief 3.9 in

(98 mm)

Field of View @ 100 yd/m 8x: 12.1 ft (4.0 m)

32x: 3.1 ft (1.0 m)

Exit Pupil 8x: 7.0 mm

32x: 1.8 mm

Illumination Analog
Elevation Feature ZeroStop
Power Throw Lever Accessory
