Description

Nightforce SHV 4-14x56mm Scope

The Nightforce SHV 4-14x56mm was features the same performance you have come to expect from Nightforce, now in a more affordable package. The SHV series scopes are a perfect choice for a wide range of applications from precision long range target shooting to big game and varmint hunting.

Why SHV ?

Objective optimized for low light performance and resolution

European style fast focus eye piece for quick and easy diopter adjustment

Simple IHR or an intelligent MOAR reticle

Machined 6061 T6 aircraft grade aluminum body tubes

Greater strength and superior resistance to point of impact shifts

All metal dials found under weatherproof caps

Quality and Precision

Nightforce riflescopes will never be “cheap.” The quality of materials, the precise tolerances, the skilled workmanship, and the need to withstand a lifetime of recoil make it physically impossible to build a world-class riflescope that is “cheap.”

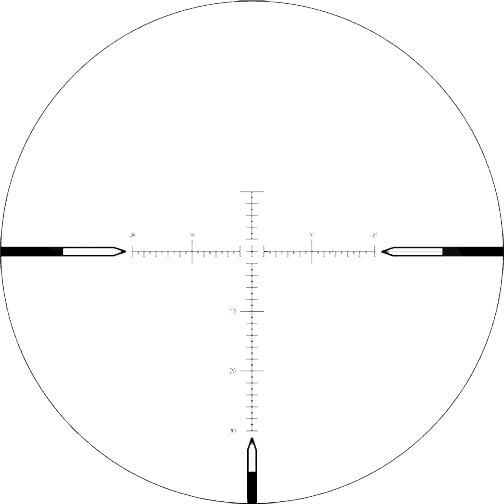

MOAR Reticle

The Nightforce MOAR reticle is a major advancement in precision shooting. A floating center crosshair two MOA wide and two MOA tall provides a precise aiming point— especially on smaller targets at longer ranges. One MOA elevation and windage spacings provide for more accurate range finding and hold offs compared to ordinary reticles with coarser markings.

The Nightforce MOAR has thicker line subtensions than our traditional reticles, and is marked with 10, 20 and 30 MOA elevation indicators (10 and 20 MOA windage indicators), making it extremely fast and easy to view under field conditions.

The MOAR design is more intuitive, easier to see in low light and more visible against dark backgrounds and
in shadows than other MOA reticles. Shooters will also find the 3, 6 and 9 o’clock posts to be an excellent asset for greater speed and target acquisition.

The MOAR has established new levels of precision and ease of use for the long range shooter.

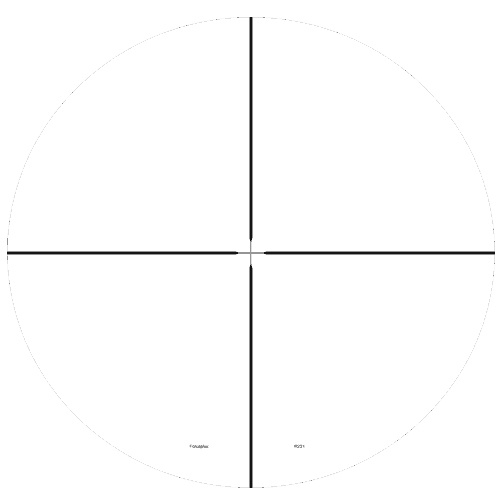

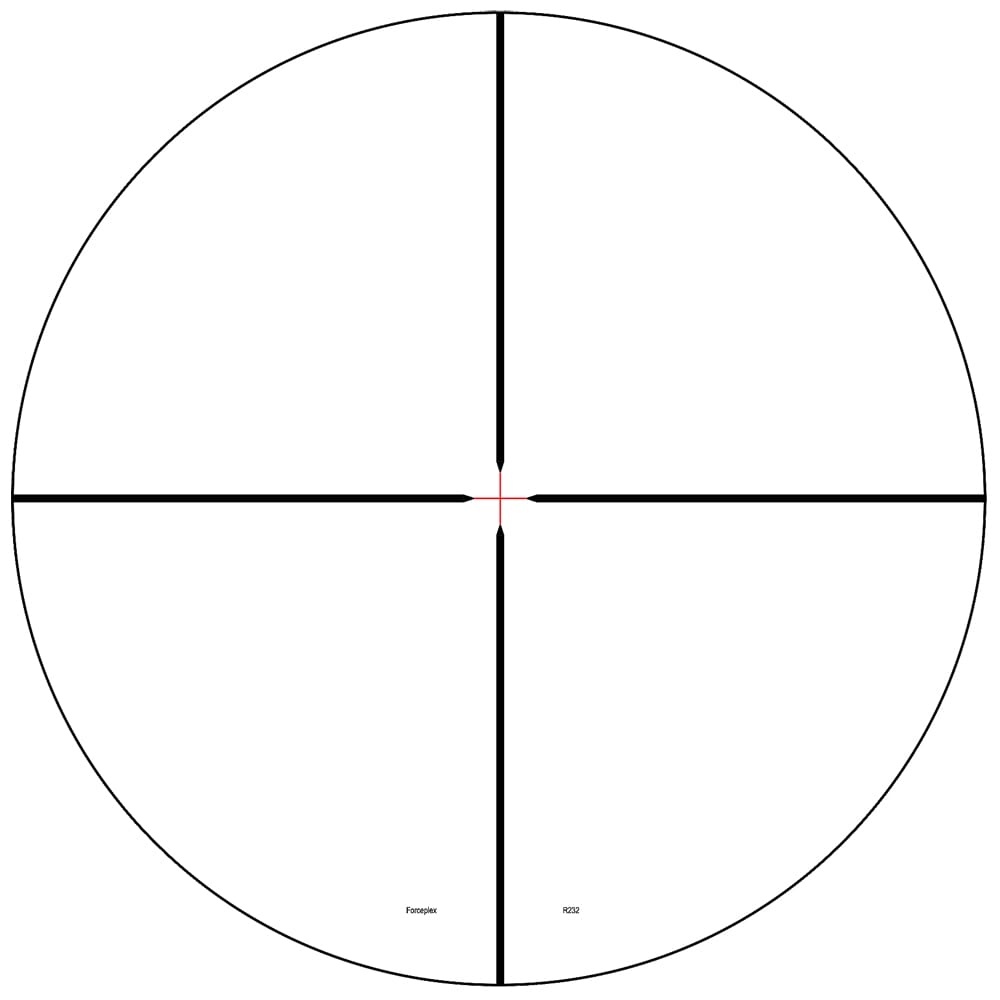

Forceplex

The Nightforce Forceplex reticle was created by and for hunters. Designed with direct customer feedback, it is simple and uncomplicated, with a clean, unobstructed field of view. The fourplex design has long been prized by hunters around the world for the way the heavier lines center your eye quickly on the target…yet we’ve made no compromises on precision, with 0.125 MOA center crosshairs that allow precise shot placement on the smallest target—even at extended distances.

The Nightforce Forceplex is available in illuminated and non-illuminated versions, depending upon the Nightforce SHV 4-14×56 scope you choose. It is superb in low light environments, and will serve you well on any game, from the dense forests of North America to the vast plains of Africa.


Specifications

Focal Plane Second
Magnification Range 4-14x
Objective Lens Diameter 56mm
Tube Diameter 30 mm
(1.18 in)
Internal Adjustment Range MOA e: 100 MOA
w: 70 MOA
Internal Adjustment Range Mil e: 27.3 Mil
w: 19.1 Mil
Click Value .250 MOA
Calibrated Ranging Power 14x
Parallax Adjustment 25 yd–∞
Exit Pupil Diameter 4x: 12.0 mm
14x: 3.6 mm
Eye Relief 80-90 mm
(3.15-3.54 in)
Field of View @100 Yards 4x: 24.9 ft
14x: 7.3 ft
Field of View @100 Meters 4x: 7.59 m
14x: 2.23 m
Objective Outer Diameter 65 mm
Eyepiece Outer Diameter 43 mm
Overall Length
(inches/mm)
14.8 in
(376 mm)
Weight
(ounces/grams)
26.9 oz

(763g*)

Mounting Length
(inches/mm)
5.79 in
(147 mm)
Front/Rear Mounting Length 2.05 in
2.00 in
Power Throw Lever Accessory
Reticles Available Foreceplex
MOAR
Illumination * Non-Illuminated
** Illuminated
Elevation Feature Capped
Finger Adjustable
