NocPix ACE H50 Thermal Weapon Sight

$4,799.00

Only 1 left in stock

Fast & Free Shipping $199+

Description

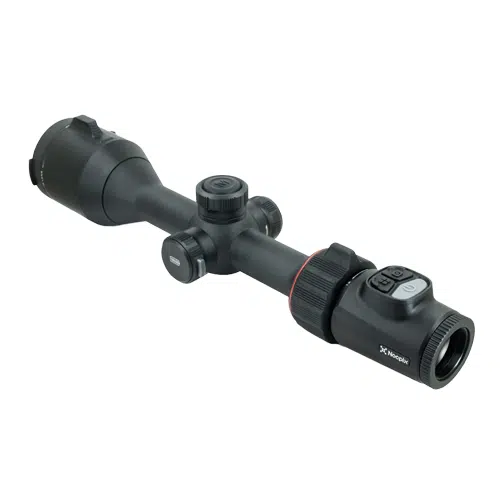

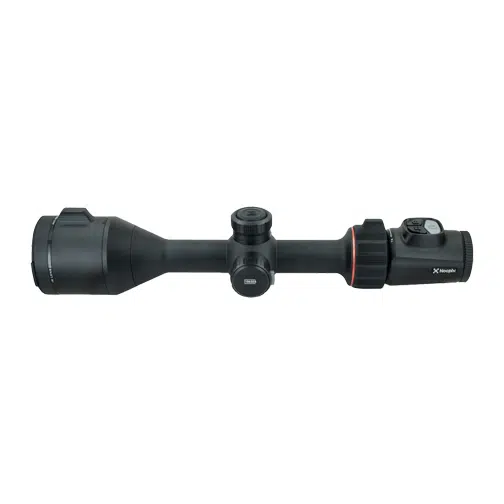

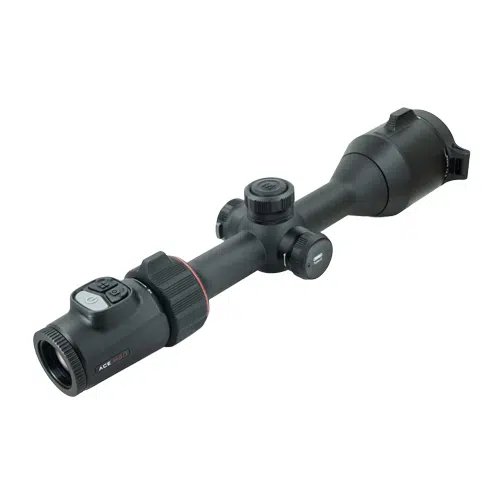

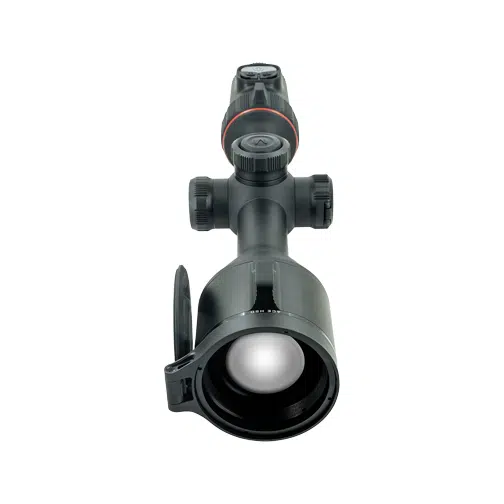

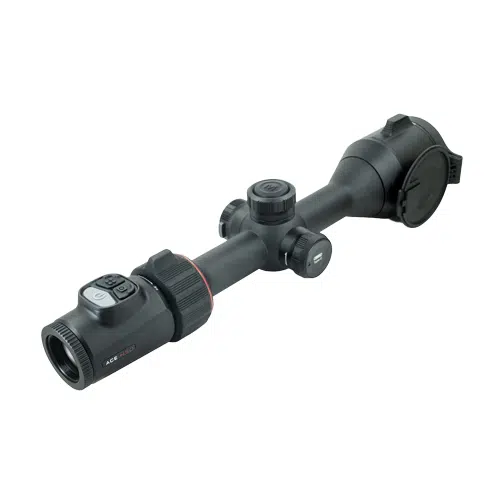

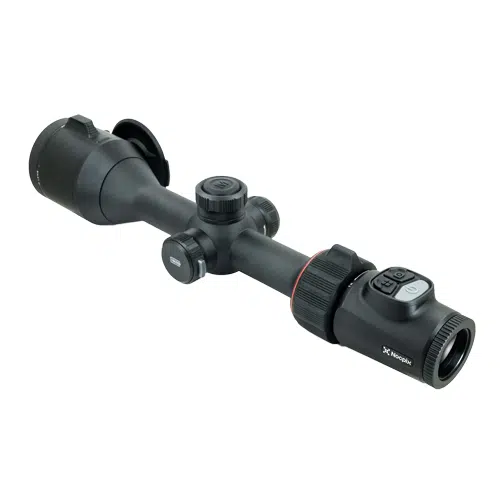

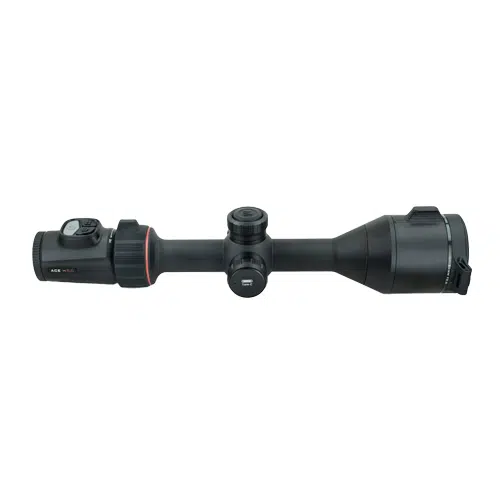

NocPix ACE H50 Thermal Weapon Sight

The NocPix ACE H50 is a thermal weapon sight that is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. The ACE H50 is designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings.

The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

NocPix ACE H50 Features

A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.

High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.

Simplified controls offer improved ergonomics and a better user experience in the field.

Uses common 18650 style rechargeable batteries.

Charge through the unit with a unique lock-out USB-C port design.

Product Manual

Spec Sheet

Specifications

Display Type AMOLED
Eye Relief 50mm
Objective Focal Length 50mm
Digital Magnification 8X
Diopter Range -5 to +5
Vertical Angular Field of View
Horizontal Angular Field of View 8.8°
Focusing Mechanism Manual Focus
Objective F# 0.9
Objective Diameter 50mm
Objective Lens Material Germanium
Display Resolution 2560×2560
Detection Range 2850 Yards
Optical Magnification 3X
Operating Temperature Range -4°F~122°F
Recoil Rating 1000 g/s² (300 Win./7mm Mag)
Ingress Protection IP67
Sensor Type Nocpix 640
Sensor Pixel Size 12μm
Thermal Sensitivity <15mk
Non-Uniformity Correction (NUC) Manual, Automatic, Semi-Automatic
Sensor Frame Rate 60hz
Device Technology Thermal Imaging
Sensor Resolution 640×512
Warranty 5 Years
Startup Time <10 Seconds, Instant from Standby
Color Palettes White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
Picture-in-Picture Yes
Storage Capacity 64GB
Connector Output Power/Data
User-Updatable Firmware Yes
Mobile App Yes
Run Time 7+
Power Source USB-C External, 18650 Battery, Built-In Battery Pack
One-Shot Zero Yes
Stand-by Mode Yes
Connector Type USB-C
External Power Source USB-C
Country of Manufacture China
Wifi Yes
Onboard Recording Yes
Image Capture Yes
Video Output Yes
Mounting Interface QD Picatinny
Housing Material Aluminum Alloy
Weight 38.5 oz.
Height 2.68
Width 3.54
Length 14.37
