Description

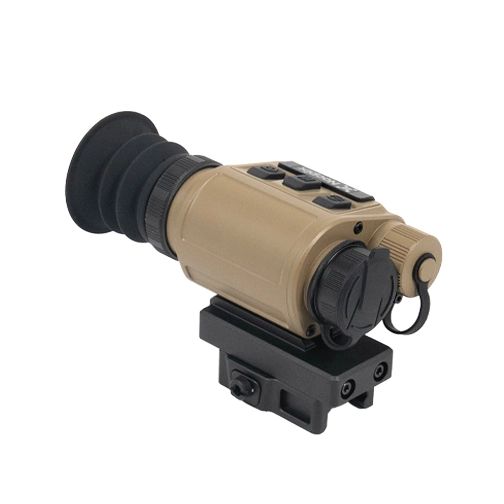

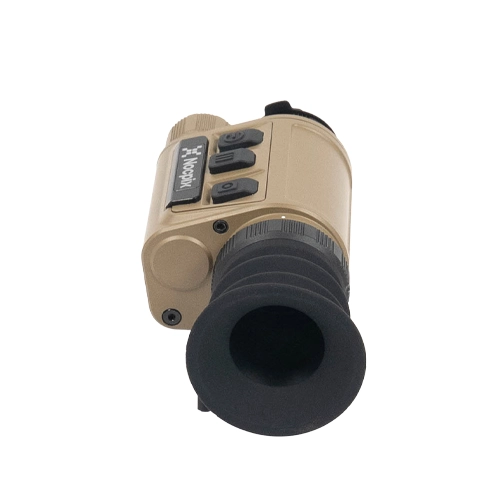

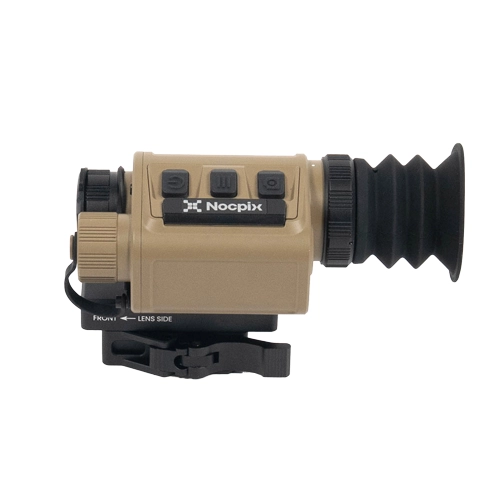

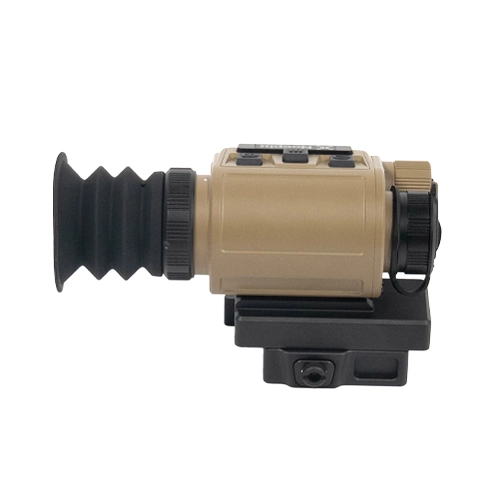

Nocpix MICRO 2 H25 Multifunction Thermal Monocular
The Nocpix MICRO 2 H25 Multifunction Thermal Monocular is a versatile thermal imaging system designed to adapt to a wide range of applications. Built for helmet-mounted, clip-on, standalone, and handheld use, the Nocpix Micro 2 H25 Multifunction Thermal Monocular combines next-generation thermal imaging performance with an upgraded high-resolution display, extended clip-on capability, and improved power management.
At the heart of the Nocpix Micro 2 H25 Multifunction Thermal Monocular is an upgraded 640×512 thermal detector, providing increased image data compared to the previous generation’s 640×480 sensor. This is paired with a high-resolution 2560×2560 display, allowing the H25 to deliver a sharp, detailed thermal image from detection through viewing.
Next-Generation Thermal Image Performance
The Nocpix Micro 2 H25 Multifunction Thermal Monocular is designed to produce a sharper and more responsive thermal image. Its 640×512 detector captures increased image information, while the 2560×2560 display provides the resolution necessary to take advantage of that additional detail. The result is a clear thermal image designed to remain useful across the H25’s multiple operating configurations.
Up to 10x Clip-On Support
One of the biggest improvements to the MICRO 2 H25 is its expanded clip-on capability. The H25 supports day-optic magnification of up to 10x, an increase from the 6x support offered by the RH25 V2. Its 1.03-inch 2560×2560 display provides the resolution needed to maintain a clean, usable thermal image as magnification increases. This gives shooters greater flexibility when pairing the H25 with compatible magnified day optics.
Optimized for Helmet-Mounted Use
The Nocpix MICRO 2 H25 incorporates dedicated functionality for helmet-mounted applications. Dual-Link and NV modes are designed around multi-unit and dual-band configurations, expanding the H25’s capabilities for users building more advanced helmet-mounted systems. Its multifunction design allows the same thermal device to transition between helmet-mounted and handheld configurations or be adapted for firearm-mounted applications.
Improved Power Management
Designed for extended time in the field, the H25 provides up to 9 hours of runtime using a single 18650 battery. The removable battery format also gives users a convenient power solution for longer periods of operation.
